Precision Incremental Encoder With Push Switch Total Rational Angle 360°
Precision Incremental Encoder With Push Switch Total Rational Angle 360°
Precision Incremental Encoder With Push Switch Total Rational Angle 360°
Precision Incremental Encoder With Push Switch Total Rational Angle 360°
Precision Incremental Encoder With Push Switch Total Rational Angle 360°
Precision Incremental Encoder With Push Switch Total Rational Angle 360°
Specifications
Brand Name :
ANYO
Model Number :
ED11305M
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30000 per day
Delivery Time :
8-10 work days
Packaging Details :
20000pcs/carton, 13kg, 40*30*25cm
Other name :
Incremental Encoder
Rotational Life :
30000 times
No. of Detent :
12
Total Rotational Angle :
360°
Voltage current :
2.5mA
Rated voltage :
DC5V
Description

11mm Incremental Encoder With Push Switch And Total Rational Angle 360°

Electrical specifications:

Item Specification
Rated power DC5V, A,B lead 5mA max., C lead 10mA max.
Output signal A,B 2 signals Precision Incremental Encoder With Push Switch Total Rational Angle 360°
Resolution 15 pulses / 360°
20 pulses / 360°
9 pulses / 360°
Contact resistance between terminals 1Ω max.
Phase difference T1, T2, T3, T4≥0.08T
Slide noise t1,t3≤3mS, t2≤2mS
Insulation resistance 100mΩ min. at DC 250V
Dielectric strength 1minute at AC300V

Mechanical Characteristics:

Item Specification
Total rational angle 360°
Rotational torque 20~200gf.cm
Click torque 20~150gf.cm
Push-pull strength of shaft

Pull: 0.8 kgf

Push: 8.0kgf min. at 10 seconds.
Shaft wobble 0.7 *L/30mm P-P max. L-shaft length
Number of detents(Click) 30 detents step angle: 12°±2°
20 detents step angle: 18°±2°
18 detents step angle: 20°±2°
without detents
Bushing nut tighten strength 7.0kgf.cm min.
Shaft play in axial direction 0.4mm max.
Shaft play in rotational wobble 5° max.

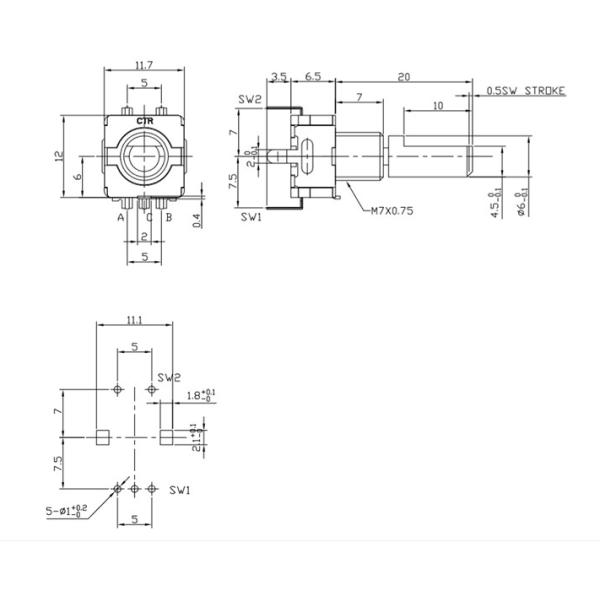

Dimension:

Precision Incremental Encoder With Push Switch Total Rational Angle 360°
