Precision Single Unit Potentiometer With Push Switch DC 10V Sealing Design
Precision Single Unit Potentiometer With Push Switch DC 10V Sealing Design
Precision Single Unit Potentiometer With Push Switch DC 10V Sealing Design
Precision Single Unit Potentiometer With Push Switch DC 10V Sealing Design
Precision Single Unit Potentiometer With Push Switch DC 10V Sealing Design
Precision Single Unit Potentiometer With Push Switch DC 10V Sealing Design
Specifications
Brand Name :
ANYO
Model Number :
R09711NM
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30000 per day
Delivery Time :
8-10 work days
Packaging Details :
20000pcs/carton, 13kg, 40*30*25cm
Other name :
Carbon Potentiometer
Rotational Life :
30000 times
Size :
9.5mm single unit
Total Rotational Angle :
300°±5°
Rated voltage :
DC10V, AC50V
Stopper strength :
3Kgf.cm min
Description

9.5mm Precision Single Unit Potentiometer With Push Switch DC 10V

Feature:

• Not afraid of temperature difference, wide range of working temperature.

• Sensor signal output stability.

• Strong and durable, not easily damaged.

• Sealing design, moisture-proof and moisture-proof.

• IP67, IP68 Waterproof Standard Stainless Steel, Metal Shell.

• Rotational life: Permissible resistance change after 15,000±200 cycles on 600 r.p.h .without load ±15% max.

• Operating temperature: -30℃~70℃

Mechanical Characteristics:

Items Specification
Rotational torque(gf.cm) 10~200gf.cm (Rotation speed: 60° / 1 second)
Push-pull strength 8Kgf min
Total rotational angle 300°
Stopper strength 3Kgf.cm min

Electrical specifications:

Items Specification
End resistance (terminal: 1-2,2-3) R≤10KΩ:≤10Ω； 10KΩ＜R≤250KΩ:≤20Ω； R＞250KΩ:≤0.1% R
Ratings power B Taper : 0.05W, Other taper : 0.025W
Maximum operating voltage B Taper :10V AC or 50V AC,Other taper : 5V DC or 25V AC
Insulation resistance 100MΩ min. at DC 250V
Dielectric strength 1 minute at 300V AC
Slider noise 100mV max (before reflow and cycle test)
Output signal Refer to attached drawing

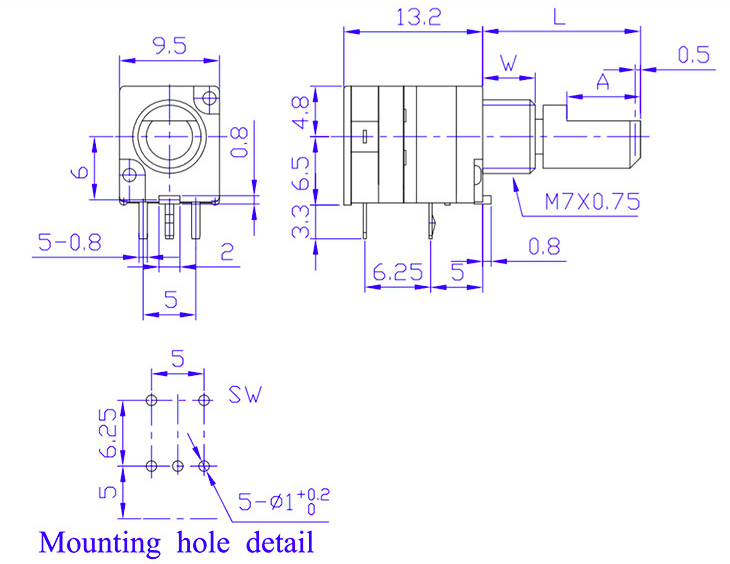

Dimension:

Precision Single Unit Potentiometer With Push Switch DC 10V Sealing Design
