Biaxial Core Carbon Composition Potentiometer 8mm Moisture Proof Metal Shell
Biaxial Core Carbon Composition Potentiometer 8mm Moisture Proof Metal Shell
Biaxial Core Carbon Composition Potentiometer 8mm Moisture Proof Metal Shell
Biaxial Core Carbon Composition Potentiometer 8mm Moisture Proof Metal Shell
Biaxial Core Carbon Composition Potentiometer 8mm Moisture Proof Metal Shell
Biaxial Core Carbon Composition Potentiometer 8mm Moisture Proof Metal Shell
Specifications
Brand Name :
ANYO
Model Number :
R08408GM
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30000 per day
Delivery Time :
8-10 work days
Packaging Details :
20000pcs/carton, 13kg, 40*30*25cm
Other name :
Biaxial Core Potentiometer
Rotational Life :
30000 times
Size :
8mm Dual unit
Total Rotational Angle :
300°±5°
Rated voltage :
DC10V, AC50V
Waterproof :
IP67
Description

8mm Biaxial Core Dual Unit Potentiometer With Metal Shaft And Push Switch

Feature:

• Not afraid of temperature difference, wide range of working temperature.

• Sensor signal output stability.

• Strong and durable, not easily damaged.

• Sealing design, moisture-proof and moisture-proof.

• IP67, IP68 Waterproof Standard Stainless Steel, Metal Shell.

Electrical specifications:

Item Specification
Contact resistance between terminals 1Ω Max.
Insulation resistance 100MΩ Min. at DC250V
Dielectric strength 1 minute ar AC300V
Rated voltage DC5V
Rated current 1mA (Resistance loading)
Max. operating current 2.5mA (Resistance loading)

Mechanical Characteristics:

Item Specification
Total rational angle 300°±5°
Rotational torque(gf.cm) 20~120gf.cm
Push-pull strength of shaft Pull: 8.0kgf
Push: 8.0kgf Min. at 10 sec.
Stopper strength 3Kgf.cm min
End resistance (Terminal: 1-2,2-3) R≤10KΩ:≤10Ω； 10KΩ＜R≤250KΩ:≤20Ω； R＞250KΩ:≤0.1% R
Bushing nut tighten strength 8.0kgf.cm Min.
Rotation stopper strength 3.0kgf.cm Min.
Water resistant grade IP67

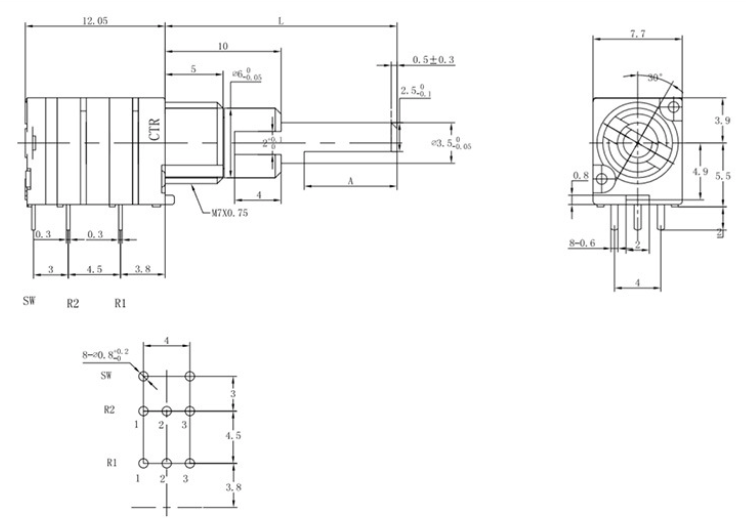

Dimension:

Biaxial Core Carbon Composition Potentiometer 8mm Moisture Proof Metal Shell
