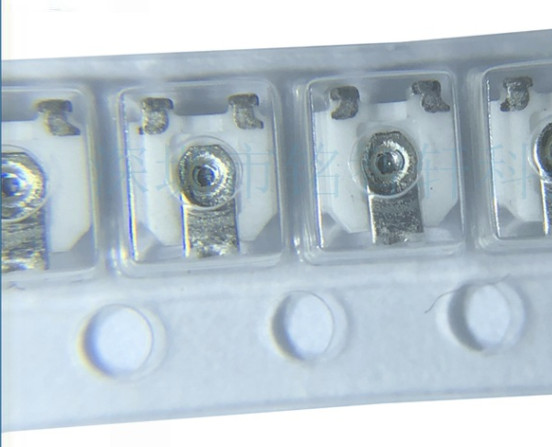

Metal-glazed 3*3mm chip trimmer potentiometer with same performance as original TMC3KJ EVM3G
Metal-glazed 3*3mm chip trimmer potentiometer with same performance as original TMC3KJ EVM3G
Metal-glazed 3*3mm chip trimmer potentiometer with same performance as original TMC3KJ EVM3G
Metal-glazed 3*3mm chip trimmer potentiometer with same performance as original TMC3KJ EVM3G
Metal-glazed 3*3mm chip trimmer potentiometer with same performance as original TMC3KJ EVM3G
Metal-glazed 3*3mm chip trimmer potentiometer with same performance as original TMC3KJ EVM3G
Specifications
Brand Name :
ANYO
Model Number :
303-1
MOQ :
10000PCS
Price :
USD0.026~0.05/PC
Supply Ability :
1000000PCS PER DAY
Packaging Details :
2500PCS/ROLL
Norminal total resistance :
100-1MΩ
Resistance tolerance :
±25%
Contact resistance variation :
5%
Withstand voltage :
50V
Effective electrical travel :
240±20°
Rated wattage :
0.15W
Operating temperature range :
-40~+100℃
TCR temperature coefficient resistance :
±250ppm/℃
Rotational life :
200 circles
Total mechanical rotation angle :
270±20°
Rotational torque :
1~12 mN*m
End stop strength :
≥15 mN*m
Description

FEATURES:
• Space Saving Size 1.3mm in height

• With stopper
• Easily adjusts with standard screwdriver.
• Metal-glaze resistance element gives excellent stability and protection against environmental factors.
• Can be mounted to a circuit board with adhesive.
• Designed for reflow soldering.
• Supplied in 8mm tape for automatic assembly equipment.
• Conform RoHS
• APPLICATIONS : Video equipment, industrial equipment and other general electronic equipment.

SPECIFICATIONS:

Operating Temperature Range －40 to 100℃
Rated Power 0.15Ｗ at 70℃
Maximum Rated Voltage AC50V, DC50V
Nominal Total Resistance 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ
Total Resistance Tolerance Within ±25% of the nominal total resistance
Resistance Taper B(Linner Taper :JIS 0B)
Resistance Temperature Coefficient Within ±250ppm/℃
Total Rotational Angle Endless(effective rotational angle 250±20°)
Rotational Torque 1 to 12mN・m
Endurance(Sliding) 20cycles(10cycles at 100Ω)
Weight at 1 pcs 40mg

APPLICATIONS:

CAMERA built-in VCR, 8mm VCR, VCR camera, still camera, headphone stereos, LCD television, disk drive, bar code equipment, radar detectors, hand held equipments.

REFLOW SOLDERING REQUIREMENTS:

• Manual Soldering: In case of soldering by a soldering iron, it shall be finished within 3 seconds and the temperature of the tip of the soldering iron shall be 350℃ max.

• Flux Rinsing: After reflow soldering operation, part may be used without rinsing, if flux is well controlled. In case flux rinsing is done, flux shall be removed sufficiently.

External dimensions:

Metal-glazed 3*3mm chip trimmer potentiometer with same performance as original TMC3KJ EVM3G

Metal-glazed 3*3mm chip trimmer potentiometer with same performance as original TMC3KJ EVM3G

Packing specification:

Metal-glazed 3*3mm chip trimmer potentiometer with same performance as original TMC3KJ EVM3G

Metal-glazed 3*3mm chip trimmer potentiometer with same performance as original TMC3KJ EVM3G
