Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001
Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001
Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001
Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001
Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001
Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001
Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001
Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001
Specifications
Brand Name :
KCO
Model Number :
SC/APC, SC/UPC, SC/PC
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100,000pcs/month
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden pallet
Type :
SC/UPC
Color :
Blue
Insertion loss :
0.2dB
Return loss :
55dB
Pull strength :
98N
Mode :
single mode, multi mode, mono mode
Description

Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001

Fiber Optic Connectors Descriptions:

The SC is a non-optical disconnect connector with a 2.5mm pre-radiused zirconia ferrule. Available in simplex and duplex styles, this connector features a push-pull connection design for quick patching of cables into rack or wall mounts. Utilize the reusable duplex holding clip to create duplex connections.

Fiber Optic Connectors Applications:

- Telecommunication Network.

- Local Area Network(LAN).

- CATV.

- FTTH.

- Testing Equipment.

Fiber Optic Connectors Features:

- High quality ceramic components and Material.
- End-face geometry requirement complies to Telcordia GR-326-CORE.
- 100% tested on optical performance (Insertion Loss & Return Loss).
- Simplex, duplex and higher core densities.
- 900 micron, 2mm, 3mm cable applications.

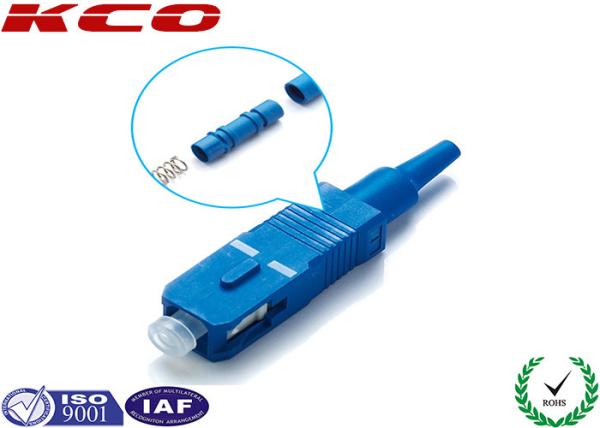

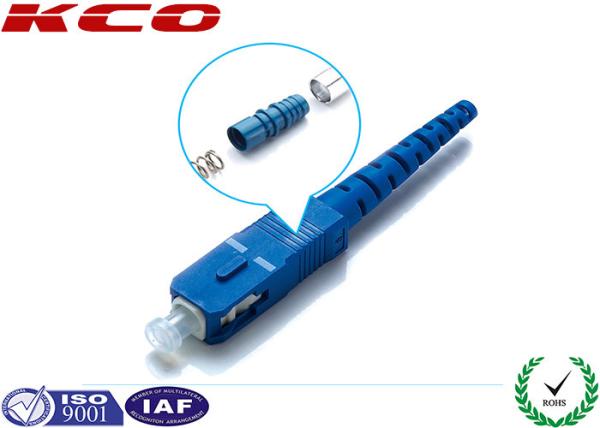

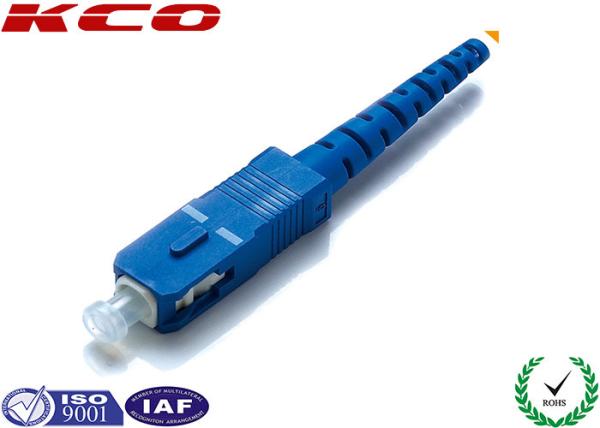

Fiber Optic Connectors Product Pictures:

Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001

Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001

Plastic Optical SC UPC Fiber Connector 0.2dB low insertion loss with ISO9001

Details about Fiber Optic Connectors:

Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic to meet standard; amiability ratings
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc

Fiber Optic Connectors Specifications:


Item		 Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insert Loss/connector
(single Fiber)		 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB ≥50 dB ≥60 dB N.A
Insert Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N

Ordering Information:
1, Connector type : SC, LC, FC, ST, MTRJ, etc
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
