Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-GJS22
Certification :
iSO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5,000pcs/week
Delivery Time :
5~14 working days
Packaging Details :
Carton box, wooden pallet
Type :
Inline type
Cable ports :
2 in 2 out
Cable diameter :
8.0~22.0mm
Min. capacity :
2 cores
Max capacity :
48 cores
Material :
PPR, ABS, PC, PP
Description

FTTH Nap Outdoor 16Cores Fiber Optic Splitter Splice Closure Junction Box KCO-GJS22 PC+ABS

KCO-1608D splitter splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.

Features

- The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened.

- Can accommodate two 1x8 PLC splitter LGX module or steel tube type;

- Anti-ultraviolet,anti- impact and waterproof function;

- Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing;

- Fiber optic cable can go in and out of the box without cut the cable.

Specification:

Model KCO-GJS22-S KCO-GJS22-F
Dimension (mm) 290*190*110 290*190*90
Cable diameter (mm) Φ7-φ18 Φ7-φ18
Cable port 4pcs round ports, 16pcs 2*3mm drop cable ports 2in 2 out
Max. Split ratio 2pcs 1x8 mini splitter /
Max. Splice tray 1pc 3pcs
Max. Fusion splice 24 cores 72 cores

Technical parameters:

- Optical fiber radius of curvature: ≥40mm

- Splice tray additional loss: ≤0.1dB

- Temperature range: -40°C ~ +60°C

- Anti side pressure: ≥2000N/10cm

- Impact resistance: ≥20N.m

- Waterproof level: IP65

Packing list:

Main body 1 set
L=400mm bare fiber buffer tube 2 pcs
Hoop / clamp 2 pcs
3x100 nylon tie 26 pcs
Heat shrinkable tube L=60mm 2-72 pcs (configuration on demand)
User manual 1pc

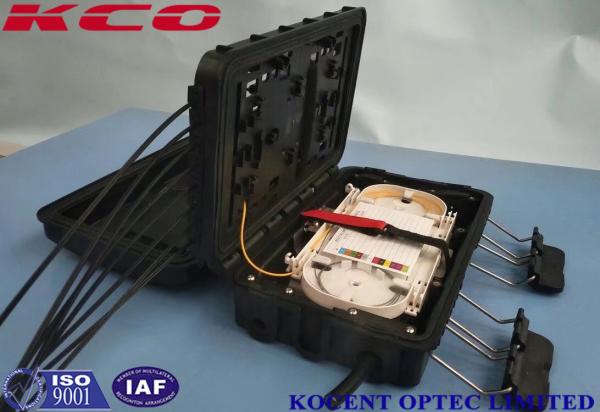

Product pictures:

PP ABS + PC Aerial Fiber Optic Splice Enclosure / Junction Box Enclosure

PP ABS + PC Aerial Fiber Optic Splice Enclosure / Junction Box Enclosure

PP ABS + PC Aerial Fiber Optic Splice Enclosure / Junction Box Enclosure

Installation way:

PP ABS + PC Aerial Fiber Optic Splice Enclosure / Junction Box Enclosure

Characterictics:

Characteristics Value/Performance Methods and Conditions
Mechanical
Air Tightness No air bubble seen Put closure under water for 15min with closure's internal air pressure set at 100kPa±5kPa.
Remains100kPa±5kPa Measure the internal pressure 24 hours later
Air Tightness after re-installation No air bubble seen and pressure remains unchanged Do re-entry and re-installation 3 times and repeat above Air Tightness Tests.

Axial Pulling
Pressure remains unchanged		 Pulling force: 1000N
Time: 1min
Internal air pressure: 60kPa±5kPa

Compression
Pressure remains unchanged		 Applied pressure: 2000N/100mm
Time: 1min
Internal air pressure: 60kPa±5kPa

Impact
Pressure remains unchanged		 Impact energy: 16N.m
No. of impacts: 3
Internal air pressure: 60±5kPa

Bending
Pressure remains unchanged		 Bending angle±45°(in two opposite directions)
Tension: 150N
No. of bending: 10
Internal air pressure: 60kPa±5kPa

Twisting
Pressure remains unchanged		 Twisting angle: ±90°
Torque: 50N
No. of twisting: 10
Internal air pressure: 60kPa±5kPa
Thermal

Temperature Cycling
Pressure drop ≤5kPa		 Cycling range: -40 ~ +60°C
Cycling time: 2hrs at -40°C, then 2hrs at +60°C
No. of cycling: 3
Internal air pressure: 60kPa±5kPa
Electrical
Insulation Resistance between
metal parts:2.0x105MΩ
Soak closure into water in 1.5m-depth for 24hrs, and measure the insulation resistance after taking it out of water.
Resistance between each metal part and ground:2.0x105MΩ

High Voltage
No voltage break-downs and sparks
Soak closure into water in 1.5m-depth for 24hrs, then apply 15kV DC to the metal parts inside
