2.5Mm UPC PC Optical Fiber Ferrule , Zirconia Ceramic Ferrule Optical Fiber Without Flank
2.5Mm UPC PC Optical Fiber Ferrule , Zirconia Ceramic Ferrule Optical Fiber Without Flank
2.5Mm UPC PC Optical Fiber Ferrule , Zirconia Ceramic Ferrule Optical Fiber Without Flank
2.5Mm UPC PC Optical Fiber Ferrule , Zirconia Ceramic Ferrule Optical Fiber Without Flank
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-250-UPC-1.0
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50,000 pcs/ month
Delivery Time :
2~5 days after get payment
Packaging Details :
paper bag, carton box
P/N :
KCO-250-UPC-1.0
Ferrule :
2.5mm
Fiber mode :
Single mode, multimode
Material :
Ceramic
Concentricity :
1.0
Ferrule numer :
100 ferrules
Description

2.5Mm UPC PC Optical Fiber Ferrule , Zirconia Ceramic Ferrule Optical Fiber Without Flank

Quick Detail:

- Name: Fiber Optic Ferrule

- Mode: Singlemode, Multimode

- Material: Ceramic/Zirconia, Metal

- Ferrule End-face: UPC

- Type: Standard

- Outer Diameter: φ2.5mm (FC/SC/ST)

- With plug: None

Description:

- Fiber optic ceramic ferrules are important component of optical connectors and fiber optic patch cord.

- Low insertion loss

- Strong interchanging capability

- UL94V-O and ROHS standard

- High resistance of corrosive

Features:

- Good concentricity and size precision

- High strength and endurability, good anti-aging performance

- Low insertion loss and high return loss and pull out performance

- Wear-resistance

- Flange: SUS303, Brass, Gild (optional)

- Approved by RoHS, ISO9001

- Customized specifications welcomed

Applications:

- Applied for fiber connector/pigtail/patch cord

- Data network communication

- CATV LAN & WAN

- Telecommunication

- Military data network communication

- Optical fiber access networks

- Optical fiber CATV

- Optical fiber test equipements

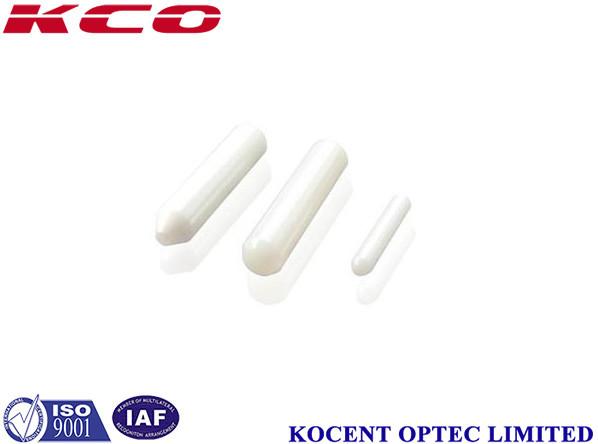

Product pictures:

2.5Mm UPC PC Optical Fiber Ferrule , Zirconia Ceramic Ferrule Optical Fiber Without Flank

Specifications:

Type SC Type LC Type MU Type APC Type Customized
Outside Diameter(mm) Single Mode 2.499±0.0005 1.249±0.0005 1.249±0.0005 2.4990±0.0005 φd±0.0005
Multi Mode 2.499±0.002 1.249±0.001
Inside Diameter(mm) Single Mode d0+0.001 d0+0.001 d0+0.001 d0+0.001 d0+0.001
Multi Mode d0+0.002 0.1260+0.004
Concentricity(μm) Single Mode ≤1.0 ≤1.0 ≤1.0 ≤1.0 user-defined
Multi Mode ≤4.0 ≤4.0
Length(mm) Single Mode 10.5±0.05 6.40+0.1 6.5±0.05 10.5±0.05 L±0.05

Parameter Unit FC,LC,SC ST,MU MTRJ,MPO
SM MM SM MM SM MM
PC UPC APC PC PC UPC PC PC UPC PC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35
Operating wavelength nm 1310,1510 1310,1510 1310,1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~+75 -40~+75 -40~+75
Storage temperature °C -45~+85 -45~+85 -45~+85
Cable diameter mm Φ3.0,Φ2.0,Φ0.9 Φ3.0,Φ2.0,Φ0.9 Φ3.0,Φ2.0,Φ0.9

Order information:

Mode Type ID Flange
S: Single mode C: (SC, FC, ST, E2000)/PC 5: 125um F: With flange
M: Multi-mode L: LC/PC 6: 126um N:No flange
D: DIN/PC 7: 127um
U: MU/PC
CA:(SC, FC, E2000)/APC
DA: DIN/APC
CAS: (SC, FC)/APC Step type

OEM/ODM Service:

We can according to your request to produce all type of standard fiber optic ferrule and non standard fiber optic ferrule. We use high quality of raw material to warranty that each ferrule can meet your most stringent requirements. Please call us or send e-mail to us with your specification to discuss with us.
