Mini Type 1x16 1:16 1*16 PLC Optical Splitters SC UPC APC G657A Fiber Cable
Mini Type 1x16 1:16 1*16 PLC Optical Splitters SC UPC APC G657A Fiber Cable
Mini Type 1x16 1:16 1*16 PLC Optical Splitters SC UPC APC G657A Fiber Cable
Mini Type 1x16 1:16 1*16 PLC Optical Splitters SC UPC APC G657A Fiber Cable
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-MN-1x16-0.9C-1.5M-SCU
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100,000 set/ month
Delivery Time :
2~5 days
Packaging Details :
Carton box, wooden pallet
Package type :
Mini Tube
Pigtail Length :
1.5m
Splitter type :
1*16 1x16
Connector :
SC/UPC
Cable Dia. :
0.9mm
P/N :
KCO-MN-1x16-0.9C-1.5M-SCU
Connector color :
blue
Pigtail Color :
multi-colors
Description

Mini Type 1x16 SC UPC APC G657A Fiber Cable PLC Optical Splitters

Descriptions:

- PLC Optical splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
- PLC Optical Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements.
- With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
- PLC Optical Splitters' Installation is simple using a variety of connector types or fusion splicing.
- This PLC Optical Splitters is a 1x16, with 1 input and 16 output fibers with an even split ratio across all fibers regardless of input wavelength.
- Kocent Optec Limited PLC optical splitter catalogy:
1/ Bare fiber type PLC optical splitters
2/ Mini tube type PLC optical splitters
3/ ABS box type PLC optical splitters
4/ Rack mount type PLC optical splitters
5/ LGX box type PLC optical splitters

Product Features:
- Singlemode PLC Splitters in a variety of package types and configurations
- Optical performance 100% factory tested
- UPC, and APC polish types available for connectorized products
- Low Insertion Loss, Back Reflection and PDL

Construction:
- Configuration Type: 1×16, 1*16, 1:16
- Fiber Type: G.657A1
- Pigtail Diameter: 0.9mm
- Pigtail Color: multi-colors
- Pigtail Length: 1.0m input / 1.0m output
- Connector Type: SC/UPC

Specification:

Wave Length: 1260nm / 1650nm
Type: 1x16
Insertion Loss (dB) Max: <14.0
Uniformity (dB) Max: <1.5
PLD (dB) Max: <0.3
Directivity Min: 55dB
Return Loss (dB) Min: 55 (50)
Operating Temperature: <-40 ~ +85°C
Power Handling: 300mW

Application:
- FTTH Network
- FTTX Deployment
- Optical Signal Distribution
- Passive Optical Network(PON)
- LAN
- CATV System
- Measuring System and Laser System
- DWDM and CWDM System
- Data Communications

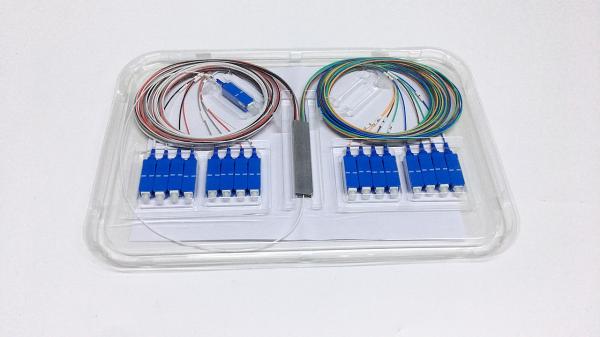

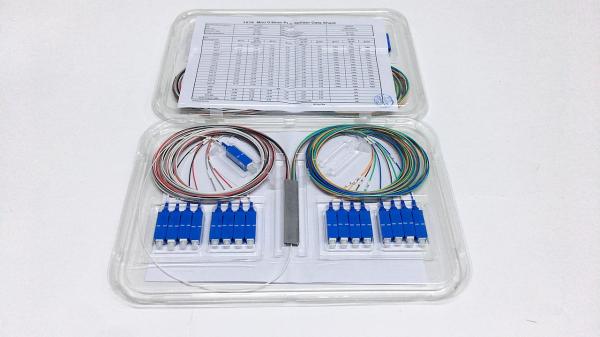

Product photos:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
