Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized
Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized
Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized
Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized
Specifications
Brand Name :
KCO
Model Number :
SC/UPC
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
350,000pcs/month
Delivery Time :
2~5 days after get payment
Packaging Details :
plastic module, PE bag, Carton box, wooden pallet
Connector type :
FC, LC, SC
Packing :
10pcs/pack
Cable available :
drop cable, indoor cable (include 0.9mm, 2.0mm, 3.0mm)
Fiber :
G652D, G657A
Insertion loss :
0.2dB
Return loss :
50dB
Description

Drop Cable Fiber Optic Quick Connector Fast Connect FC LC SC Customized

We can provide SC FTTH fiber optic fast connectors that use for FTTH cable and common indoor fiber optic cable. Also OEM Service is available, such as package, label, etc all can be customized. We can supply all type of fiber optic fast connectors such as SC, FC, ST, LC, etc. All our Fiber Optic Fast Connectors meet RoHS Compliant, and 100% test Insert loss before shipment.

Fast connectors descriptions:

Quick assembly connector is used for field-installable optical fiber connector, screw design widely used in FTTH access optical network, include Single mode and Multimode and suitable for 2*3.0mm drop cable and also can be suitable with 0.9mm, 2.0mm, 3.0mm indoor fiber optic cable.

Fast connectors quick detail:

- Name: SC Fast Connector

- Ferrule end-face: UPC, APC

- Ferrule size: 2.5mm

- Structure: Pre-polished, Un-polished

- Connector: FC, LC, SC

- Fiber: G652D G657A

Fast connectors features:

- No special assembling tool

- Quick and easy for assembling

- Reusable and repeat operation times are up to 300

- Integrated protection of the casing to prevent the connector form impact

- Can be installed in two minutes

- Power-save, as it does not need hot melting

- Without any gluing and polishing process

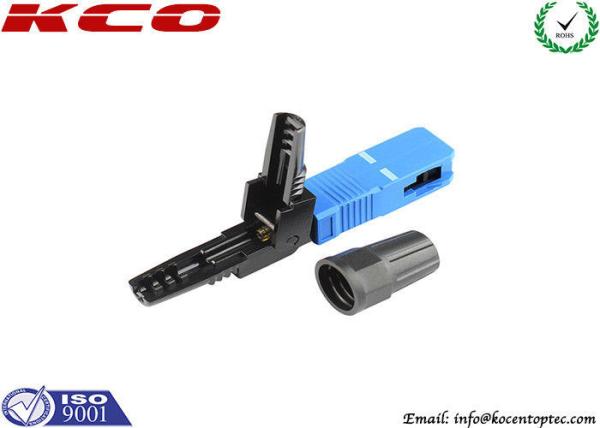

Fast Connectors products picture:

Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized

Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized

Fast connectors applications:

- FTTH/FTTX/FTTD

- Distribution frames

- Maintenance or emergency restoration of fiber networks

- Connection at the desk for LAN environments

- Terminal box

Fast connectors Specifications:

Applicable for Drop cable. Indoor cable(0.9/2.0/3.0mm)
Optical fiber diameter 125μm
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB
Return loss ≥50dB
Fastening strength of naked fiber >5N
Fastening strength of naked fiber holder >10N
Tensile strength >50N
Using temperature -40°C~+75°C
