100m 150m 200m Handhold Fiber Optic Cable Drum Reel CPRI FTTA Field Armored TPU SC LC MPO

- KOCENT OPTEC LIMITED provides OEM and ODM service for all types of fiber optic patch cord. Special in CPRI army field outdoor field operations fiber optic patch cord come with rooling car for Army field operating and for FTTA.

- Such as ODVA patch cord, NSN patch cord, PDLC patch cord, DLC patch cord, ODC patch cord, RRU patch cord, TPU patch cord, CPRI patch cord, Optitap patch cord, Mini SC patch cord, and OM3, OM4, OM5 patch cord.

- (CPRI-"Common Public Radio Interference") cables from Kocent Optec Limited conform to international standards and meet the stringent requirements of the telecom industry as the vital bi-directional link between Base Band Units and Remote Radio Units.

- These fiber optic cables available in 2 cores, 4 cores, 6 cores, 8 cores, 12 cores.

- Cable outer sheath available in TPU and LSZH, it is UV resistant.

- The Fast deployment patch cable can prevent the destroy by improper twist, high resistance of tensile strength, pressure and mouse bite.

- With the strong reel to take up the line, it is convenient for movement and construction.

- A twofold braking manner is to prevent from the damage during construction.

- No damage to optical fiber during deploying.

- The out/input connectors are optional with various connectors complying with international standard, such as FC/SC/LC/ST.

Characteristic:

1. Small stainless steel hose protection, has good mechanical properties

2. Thermoplastic polyurethane elastomer sheath for cable provides structural stability and wear resistance, good oil resistance, low temperature flexibility performance;

Descriptions:

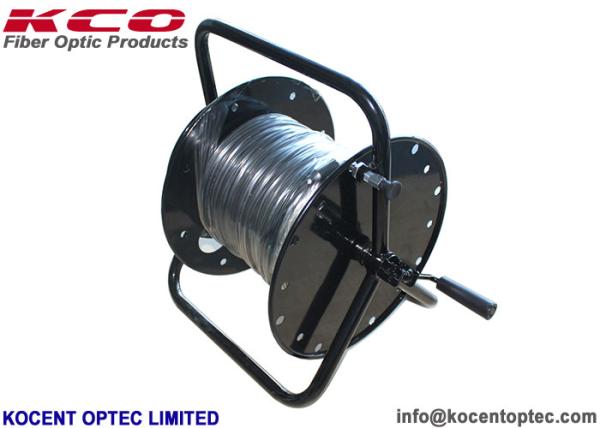

Optical fiber reel (also known as mobile optical cable) is mainly used to wind cables such as optical fibers, signal cables, and power cables.

The reel uses steel pipe as the skeleton, imported engineering plastics as the roulette, light and durable; the surface is sprayed. Beautiful and atmospheric.

Manual retracting line: Rotate the winding handle clockwise or counterclockwise to complete the task of receiving and releasing the line.

Product features: easy to carry, easy to use, easy to collect.

Rooling car size:

- Size: 360mm*330mm*450mm

- Packing: 470mm*380mm*510mm

- Weight: About 2.5kg

- Package: 1set/carton box

- Packing length:

3.0mm: 300m

5.0mm: 150m

7.0mm: 100m

Applications:

1. Military communication;

2. Oil, natural gas, coal mine, geological exploration and other communication;

3. Broadcast television, temporary communication system

Quick Informations:
- Connector End 1: ST, SC, LC, FC, E2000, MPO, ....
- Connector End 2: ST, LC, FC, SC, ST, E2000, MPO, ....
- Cable: Armored,non-armored
- Cover: LSZH, TPU, PE
- Outer Diamerter: 7.0mm, 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm
- Inner Diameter: 2.0mm, 0.9mm, 0.6mm
- Fanout part: 2.8mm armored, 3.0mm non-armored, 2.0mm non-armored
- Color: Black
- Length: 5m, 10m, 20m, 30m , 40m, 50m, 60m, 70m, 80m, 90m, 100m, 150m, 200m, 300m, 500m, ...

Products photo:

Parameter:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
