SC/APC Auto-shutter Non Flange Fiber Optic Adapter Singlemode Plastic Material
SC/APC Auto-shutter Non Flange Fiber Optic Adapter Singlemode Plastic Material
SC/APC Auto-shutter Non Flange Fiber Optic Adapter Singlemode Plastic Material
SC/APC Auto-shutter Non Flange Fiber Optic Adapter Singlemode Plastic Material
SC/APC Auto-shutter Non Flange Fiber Optic Adapter Singlemode Plastic Material
SC/APC Auto-shutter Non Flange Fiber Optic Adapter Singlemode Plastic Material
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-SCA-Shutter-non
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500,000pcs/month
Delivery Time :
2~5 days after get payment
Packaging Details :
Plastic module, carton box, wooden pallet
Type :
SC/APC
Material :
Plastic
Chanel way :
1 ways
Insertion loss :
0.2dB
Return loss :
55dB
Fiber mode :
Singlemode
P/N :
KCO-SCA-Shutter-non
Color :
Green
Description

SC APC Green Color Fiber Optic Adapter / Auto-shut SCA Adapter / Non-flange Fiber Adapter

Description:

- Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

- By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible.

- At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.

- We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.

Feature:

- Excellent Temperature stability
- Low insertion loss ,high return loss
- Good repeatability and exchangeability
- Excellent mechanical endurance
- Customer defined specifications
- Compliant with Telcordia,TIA/EIA and IEC

Advantage:

Good Protection with Dust Cap
Simply Connecting Two Fiber Optic Cables
High-precision Ceramic Sleeve

Specification:

Product Name

Green Color Quad LC APC Shutter Adapter

Singlemode Mid Coupler 4 Ways
Part Number KCO-SCA-Shutter-non
Inserion Loss ≤0.2dB
Durability >1000 times
Operating Temp -40~70°C
Material Plastic
Application FTTx, LAN, CATV, Telecom
Way 1 way
Connector Type SC-SC
Polish Type

UPC

APC

Fiber Mode

Singlemode;

Multimode Om1; OM2; OM3; OM4; OM5
Color

SM: Blue,Green

MM: Beige

OM3: Aqua

OM4: Violet

OM5: Lime green
Core 4 cores
Flange with flange/with ear;
Form of sale Neutral/ OEM/ ODM
Use Fiber connection
Custom Design welcom
Sample Lead Time within 7 days after confirmation

Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB

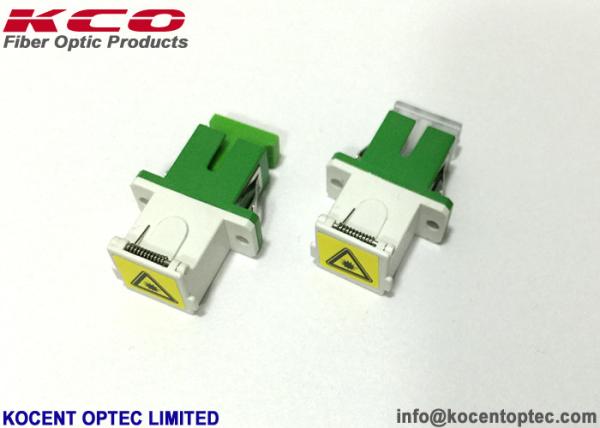

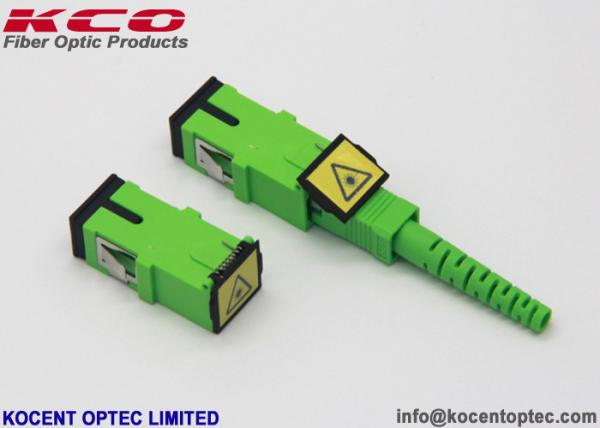

Product pictures:

SC/APC Auto-shutter Non Flange Fiber Optic Adapter Singlemode Plastic Material


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, ...

- Stardard shipping port: Shenzhen, Hongkong, Ningbo
