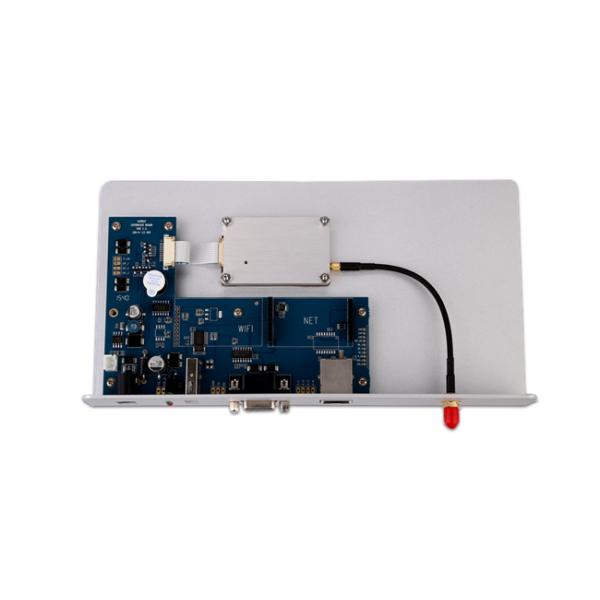

Long Range Wireless Oem Uhf Rfid Reader Module , Rfid Card Reader Module High Performance
Long Range Wireless Oem Uhf Rfid Reader Module , Rfid Card Reader Module High Performance
Specifications
Brand Name :
SUNSHINE
Model Number :
M2210
Certification :
CE,ROSH
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, Western Union
Packaging Details :
Carton
Working Voltage :
DC 3.7～5V
Standby Current :
≤50mA
Tag Protocol :
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Reading Distance :
≥10m(With 8dBi antenna/Relate to tags type, transmitted power and application environment)
Antenna Connection Protection :
support
RF IC :
Impinj R2000
Description

Long Range Wireless Oem Uhf Rfid Reader Module , Rfid Card Reader Module High Performance


Product Advantages:

1. Employed IMPINJ R2000 RF Chips, up to -82dbm receiving sensitivity and the high performance makes this module more suitable for harsh application environment.


2. High stability and reliability, 60*24 hours high temperature of workstation, can work stably and continuous.


3. Remarkable performance with 8dbi RF antenna, can achieve a reading distance over 10m per single tag.


4. Remarkable performance in intensive taps reading can attain a taps identification rate of 400tags/s.


5. Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.


6. Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.


7. The use of carrier wave cancellation technology makes the tag reading more accurate and the reading scope wider.


8. The smallest module volume (56.5*36.0*7.8 MM) in the same field and supply power of 3.7V--5V, it is especially suitable for handsets and other mobile devices.


9. Enhance noise suppression for reliable data capture.


10. High precision return signal strength (RSSI).

Product Electrical Parameters

NO. Name

Parameters
1 Working Voltage DC 3.7～5V
2 Working Current 1.5A
3 Standby Current ≤50mA
4 Sleep Current ≤1mA
5 Working Temperature -25～+65℃
6 Working Humidity ≤95%(+25℃)
7 Storage Temperature -40～+80℃
8 Tag Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
9 Working Frequency 840～960 MHz
10

Supporting Working
Areas

China 1,China 2
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302
208 with & without LBT regulations Japan,Korea,
Malaysia,Taiwan
11 RF IC Impinj R2000
12 Output Power Software adjustable, step interval 1.0dB, maximum 30dBm
13 Output Power Flatness ±0.2dBm
14 Receiving Sensitivity -82dBm
15

RF Port Standing
Wave

 ≤1.5
16 Reading Distance ≥10m(With 8dBi antenna/Relate to tags type, transmitted power and application environment)
17 Multi-tag Reading ≥400 tags/s
18

Antenna Interface
Amount

 one(MMCX)
19 Interface Communication Rate 115200bps
20 Working Temprature Detection support
21

Intensive Read/Write
Mode DRM

 support
22

Antenna Connection
Protection

 support
23 RSSI support
24 LED Red light (power indicator )
25 Product Cooling Way Aluminum metal case as cooling fin for the module
26 Dimension 56.5*36.0*7.8 MM


Interface Definition

Pin NO. Name Type Description
1 UART_TX I/O TTL UART Transmit
2 UART_RX I/O TTL UART Receive
3 GPIO3 I/O Output
4 GPIO2 I/O Output
5 GPIO1 I/O Output
6 PWREN_MODULE I/O When Pull Down This Pin to Ground,The Module Enter Sleeping Mode.
7 GND Ground Ground
8
9 VCC Power DC 3.7V to 5V Power Input.
10

Long Range Wireless Oem Uhf Rfid Reader Module , Rfid Card Reader Module High Performance
We have one port/four port reader/writer Impinj R500/R2000 modules available. Pls feel free to contact us for more information and catalogue/datasheet.
