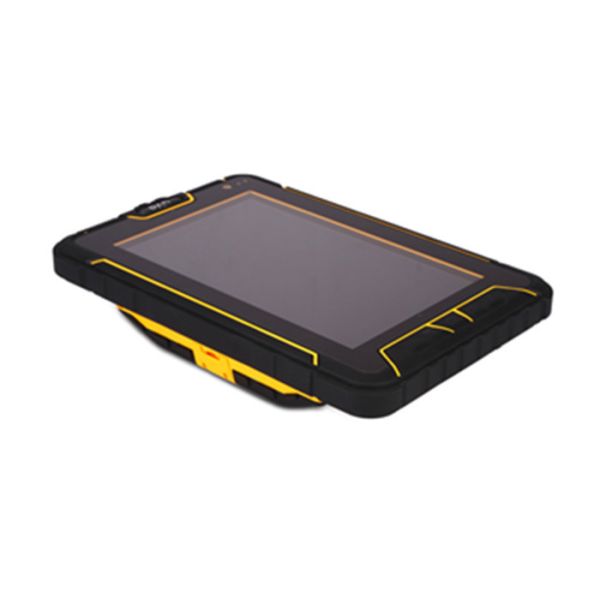

Impinj R2000 Chip UHF Android RFID Reader Writer Tablet With 7inch Screen
Impinj R2000 Chip UHF Android RFID Reader Writer Tablet With 7inch Screen
Specifications
Brand Name :
SUNSHINE
Model Number :
P6300
Certification :
CE,ROSH
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, Western Union
Packaging Details :
Carton
Operating System :
Android 4.4 OS
Industrial Protection Grade :
IP67
GPS :
Support GPS ,DBS ,GLONASS and professional GPS,Ublox;GPS and Beidou(alternative)
Identification distance :
not more than 6 m
Extended Storage :
Micro SD ,Maximum 32G
Bluetooth :
Support 4.0
Far infrared meter reading :
woring frequency 37.9K
Description

Impinj R2000 chip UHF RFID Reader Writer Android tablet with 7inch screen

FEATURES

P6300 uhf RFID is three-in-one tablets, adopts the design of waterproof, dust proof, put down, and With advanced uhf RFID radio frequency module, read and write distance up to 3 meters.In geography, logistics, Lin Industry, public transportation, construction, maintenance, mining, military and security, has special operation and working outdoors The domain is used.Product specifications for 200 x132x21mm, weighs 650 grams, waterproof and dust proof design level IP67 (guarantee Level IP66), fall protection in accordance with MIL - STD - 810 - g/Method516.6 / Procedure IV of the military Protection level, maximum resistance to 1.8 meters of arbitrary Angle drop, static pressure test for more than 2 tons. Also has a large capacity Quantity of batteries, outdoor sunlight environment visual, ultra-low temperature under the condition of shell start up, etc


SPECIFICATIONS

General Specifications
Operating System Android 4.4 OS
CPU MSM8916,A53,4core CPU ,1.2GHz
RAM RAM: 2G/FLASH: 16G
Extended Storage Micro SD ,Maximum 32G
USB port 5 pin MicroUSB, support OTG (U-disk/Mouse/keyboard/USBEthernet cable)
OTG Support,through OTG can meet 100M network port , network card setup,PPPoE dial-up,web browsing ,Support OTG extend RS232 serial port
External port Charge port ,headphone port
Protection Grade
Industrial Protection Grade IP67
Drop Grade Drop resistance from 1.2m
Wireless Communication
Bluetooth Support 4.0
GPS Support GPS ,DBS ,GLONASS and professional GPS,Ublox;GPS and Beidou(alternative)
WIFI Support IEEE802.11b/g/n
4G

FDD/WCDMA/GSM
LTE_FDD B1/B3/B7 LTE_TDD B41/B40
WCDMA B1/B2/B5
GSM 900/1800/1900
Data Acquisition(Optional)
Fingerprint Identification Support fingerprint data acquisition,fingerprint resolution 150x200
Far infrared meter reading woring frequency 37.9K
RFID
LF RFID 134KHZ LF RFID or 124KHZ LF RFID
NFC(HF) RFID

Working frequency : 13.56 MHZ
Profile: Support ISO/IEC 15693,ISO/IEC 14443A profile
Support Cards :SR176,SRIX4K(TYPE-B),I-Code2,TI RFID label-it
HF1,EM4034 ,Mifare Classic ETC
Identification distance :not more than 5cm
UHF RFID

Working frequency : 840-960MHZ
Support agreement :EPC C1 GEN2/ISO 18000-6C
Output power : 10dBm-30dBm
Identification distance : not more than 6 m
Physical Parmeters
Display Screen 7 inch LCD screen ,1280x800 IPS screen ,capacitive touch screen
Keyboard Android menu ,Homepage ,Returm,Volume,Barcode,ON/OFF ,Reset
Camera 2 million pixels front camera ,8 million pixels rear camera with automatic focus and lighting function
Headset 3.5mm audio interface,has mike and telephone receiver
LED indicatoe light Support (ordinary ficker,Call fast flicker ,missed calls ) three status bar
Flashlight Function Support ,can be used for emergency lighting
Googleplay store Support
Gravity sensor Support
Compass Support
Vibrating motor Support
FM Support
Rechargeable Lithium Battery 3.7V,7000mAh
Standby Standby current less than 10mA
Dimension 209mmx139mmx19mm
Weight 590g
Environmental Characteristics
Working Temperature -20 + 50
Storge Temperature -40 +60
Humidity 5% --95% relative humidity ;no condensation


Impinj R2000 Chip UHF Android RFID Reader Writer Tablet With 7inch Screen
Impinj R2000 Chip UHF Android RFID Reader Writer Tablet With 7inch Screen


Application scenarios

1. Storage: intelligent storage management program

2. Electricity: intelligent Inspection tour management solution, electric assets tracking management system

3. Exhibition: Access control, data acquisition solution, RFID wrist strap technology solutions in the exhibition center,

4. Manufacture: garment manufacturer’s operational sequence solution

5. Interlock: running multiple shop’s management solution

6. Express: express and logistics industry’s mobile application

7. Transportation: jeeves,smart parking’s charging solution

8. Medicine: the application of the electronic supervision of drug

9. Highroad: road traffic inspection management solution

10. Asset: Mobile assets inventory management system, routing inspection management system.

11. Traceability: products/goods traceability management system.

12. Anti-fake: cigarettes and wine, valuables’ anti-fake application

13. Sales: the retail inventory, promotion, cargo inventory management

14. Agriculture: smart agriculture and forestry management solution, Temperature and humidity monitoring system.

15. Operator: the base station inspection, network optimization
