IP65 Android RFID Reader Long Range For Medical Treatment / Gas Inspection
IP65 Android RFID Reader Long Range For Medical Treatment / Gas Inspection
Specifications
Brand Name :
SUNSHINE
Model Number :
P6010
Certification :
CE,ROSH
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, Western Union
Packaging Details :
Carton
Operating system :
Android 4.4 embedded OS
Industrial ProtectionGrade :
IP65
Drop Grade :
Drop resistance from 1.2m
Identification distance :
not more than 6m
Bluetooth :
V4.0
Description

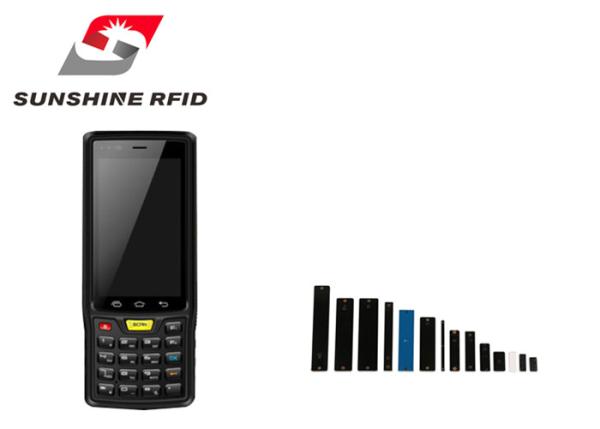

Industrial IP65 IMPINJ R2000 Android Touch Screen Long Range UHF Rfid Handheld Reader

This portable handheld uhf rfid reader is portable and digital data acquisition equipment. It can be widely used in the area of fashion industrial, industrial manufacturing, logistics management, assets management and routing inspection, etc.

The PDA 's reading distanc is 0-7m, employed Impinj R2000 module, with multiple tags funciton, with big capacity battery,

with WIFI, Bluetooth, GPS, 4G function.

Specifications

Standard Parts
General Specifications
Operating system Android 4.4 embedded OS
CPU 1.2GHz
RAM RAM 1G; FLASH 8G
Ports One USB 2.0 port(OTG supports U Flash Disk, Mouse, 100M ethenet), one charging mouth, one TF card(128G), one SIM card
Protection Grade
Industrial ProtectionGrade IP65
Drop Grade Drop resistance from 1.2m
Wireless Communication
Bluetooth V4.0
GPS Built-in Beidou/GPS/GLONASS; supports A-GPS; External Beidou/GPS/GLONASS; supports RTCM 2.3 differential data
WIFI Support IEEE 802.11b/g/n
4G

FDD/WCDMA/GSM
LTE_FDD B1/B3/B7 LTE_TDD B41/B40
WCDMA B1//B2/B5
GSM 900/1800/1900
Data Acquisition (Optional)
Fingerprint Identification

Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc.
Type: TCSIST semiconductor sensor
Acquisition window size: 24.5*19mm
Effective image size:15.5*18.5mm
Sensor type: capacitive
Image size: 256*360
Resolution: 500 DPI
Matching mode: contrast mode(1:1); search mode(1:N)

Barcode Scanning

1D Infrared Scanner Index:
Scanning speed: 50 times/second
Scanning distance: 5.7cm-60.96cm

1D Laser Scanner Index:
Scanning speed: 104 times/second+12 times/second (two way scanning)
Scanning distance: 2.5cm-114.3cm

2D Barcode Scanner Index:
Scanning speed: 10 times/second
Depth of field: 5cm-30cm
RFID

LF RFID:
134KHZ LF RFID or 124KHZ LF RFID
Identification distance: 0-3 cm

NFC (HF) RFID:
Working frequency: 13.56MHZ
Profile: Support ISO/IEC 15693, ISO/IEC 14443A profile
Support Cards: SR176, SRIX4K (TYPE-B), I- Code2, TI RFID label-it HF-I, EM4034, Mifare Classic ETC
Identification distance: not more than 5cm

UHF RFID:
Working frequency: 840-960MHz(customization of requiredfrequency band)
Support agreement: EPC C1 GEN2/ISO 18000-6C /ISO18000-6B
Output power: 10dBm-30dBm
Identification distance: not more than 6m
Physical Layer Parameter
Display Screen 4 inch LCD screen, 480x800 IPS screen, capacitive touch screen
Touch screen Thicken tempered glass(thickness 1mm); supports 10 points touch and double-click for waking up
Keyboard Physical keypad with 19 phiscal keys
Camera 8.0 million pixels; support auto focus and fill-flash function.
Headset Supports standard headset, Bluetooth headset; support Mike and receiver function
Vibration Function Vibrating prompt function
Sensor Supports light sensation, gyroscope, compass, gravity
Flashlight Function Used for emergency lighting
Rechargeable LithiumBattery 3.7V, 3800mAh
Handle Battery 3.7V, 5000mAh
Standby The standby current is less than 10mA
Dimension 168mm*75mm*26mm
Weight 350g
Environmental characteristics
Working Temperature -20℃ ~ +50℃
Storage Temperature -40℃ ~ +60℃
Humidity 5%-95% relative humidity; no condensation
