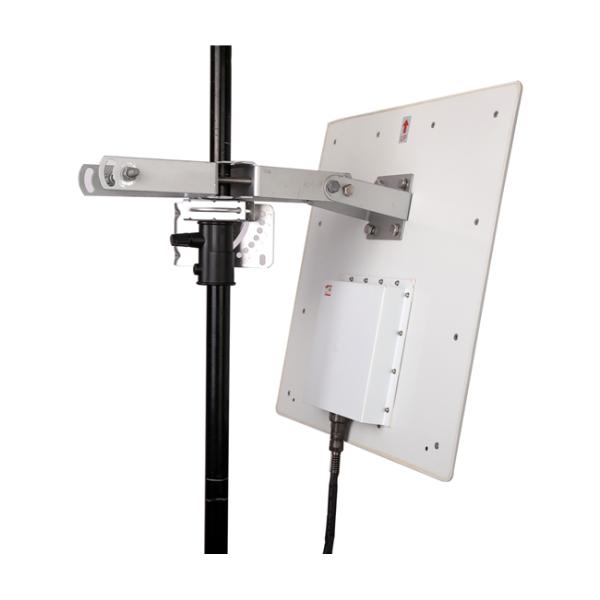

CE / ROSH Approved Integrated RFID Reader Long Distance For Challenging Environment
CE / ROSH Approved Integrated RFID Reader Long Distance For Challenging Environment
Specifications
Brand Name :
SUNSHINE
Model Number :
F5012
Certification :
CE,ROSH
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, Western Union
Packaging Details :
Carton
Tag Protocol :
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Working Frequency :
840～960 MHz
Output Power Flatness :
±0.2dBm
Reading Distance :
≥14m（relate to tags type, transmitted power and application environment）
Multi-tags Reading :
≥400tags/s
Communication Port :
RS485,RS232(DB-9)RJ45(100M Ethernet port)
Description

Long Distance Integrated RFID Reader support Multi-tags reading 400tags/s for parking

Top features and advantage

*Integrated designed, water and dust proof
*Built-in high performance antenna;
*Compatible with international standards and domestic multi-protocol
*Frequency Hopping Spread Spectrum mode, with powerful anti-jamming capability
*Dense Reader Mode capability
* Specific tag read/write capability
*Support many development languages e.g. VC, VB, C# etc…
*Many connectivity available and customizable.

Application:

*Vehicle Management
*Asset Management
*Personnel Management
*WIP Management
*Logistic Management and Traceability
*Anti-counterfeiting Track and Trace
*Mining Management
*Shipyard Management


Product Electrical Parameters

NO. Name Parameters
1 Working Voltage DC +12V
2 Working Temperature -25～+65℃
3 Working Humidity ≤95%(+25℃)
4 Storage Temperature -40～+80℃
5 Tag Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
6 Working Frequency 840～960 MHz
7

Supporting Working
Areas

China 1, China 2
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302
208 with & without LBT regulations Japan,Korea,Malaysia,Taiwan
8 Output Power Software adjustable, step interval 1.0dB, maximum +30dBm
9 Output Power Flatness ±0.2dBm
10 Receiving Sensitivity -82dBm
11 RF Port Standing Wave ≤1.5
12 Reading Distance ≥14m(relate to tags type, transmitted power and application environment)
13 Multi-tags Reading ≥400tags/s
14 Interface Communication Rate 115200bps
15

Working Temprature
Detection

 Support
16 Intensive Read/Write Mode DRM Support
17

Antenna Connection
Protection

 Support
18 RSSI Support
19 Antenna Type 12dbi linear polarization antenna
20 Communication Port RS485,RS232(DB-9)RJ45(100M Ethernet port)
21 Buzzer Yes
22 Enclosure ABS industrial plastic case
23 Dimension 44.5*44.5*7.5CM
24 IP Grade IP64



Interface definition

Pin NO. Name Description
1 485-A RS485 A
2 485-B RS485 B
3 GND Ground
4 GND Ground
5 E-6 Ethernet RJ45 PIN6
6 E-3 Ethernet RJ45 PIN3
7 +12V DC +12 Power supply
8 GND Ground
9 E-1 Ethernet RJ45 PIN1
10 E-2 Ethernet RJ45 PIN2
11 232-RX RS232 RX
12 232-TX RX232 TX




CE / ROSH Approved Integrated RFID Reader Long Distance For Challenging Environment
CE / ROSH Approved Integrated RFID Reader Long Distance For Challenging Environment
Other products

We also have different kinds of UHF RFID devices, such as uhf rfid reader modules, fixed passtive uhf rfid readers, uhf rfid handheld readers,uhf rfid antennas, Alien inlays, uhf rfid anti metal tags.2.4G active readers and tags, etc.. If anything meet your demand,Pls feel free to contact us for datasheet, catalogue or price. Hope we can be of assistance and provide you our best products and solutions.
