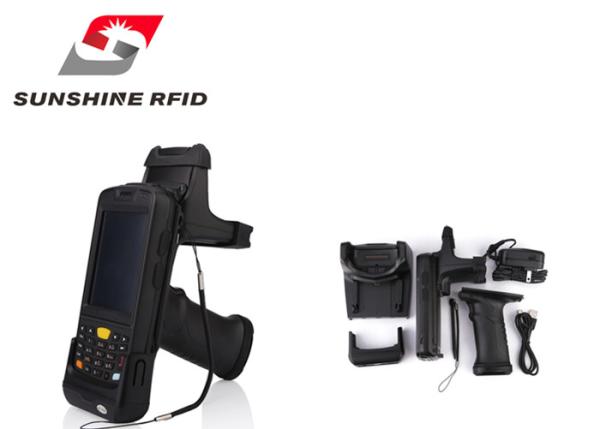

Industrial Grade Passive RFID Reader Bluetooth With WinCE 6.0 System
Industrial Grade Passive RFID Reader Bluetooth With WinCE 6.0 System
Specifications
Brand Name :
SUNSHINE
Model Number :
P6100
Certification :
CE,ROSH
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, Western Union
Packaging Details :
Carton
Dominant frequency :
Free scale i.MX515@800MHz
OS :
WINCE6.0
Memory :
RAM 256Mb、4Gbit iNand flash
Communication :
USB2.0、RS232、Bluetooth、WIFI、GPRS/3G（Extended function）
Development platform :
C#,C++
Working hours :
≧14h
Description

handheld passive RFID Reader with WinCE 6.0 System USB ,RS232,Bluetooth and GPRS

Description

P6100 industrial-grade handheld read-write device is a handheld terminal based on Windows CE 6.0. with Strong RFID, speaking, reading and writing, white card for ordinary RFID tags can be up to 5 meters reading distance, and have strong more tags conflict resistance. To adapt to the mobile data acquisition under the bad environment of inside and outside, is the cold storage, port, terminals for mobile application environments such as data acquisition of the preferred products. In addition, P6100, speaking, reading and writing, with a strong scalability, customers can choose and buy configurations increase type 2 d code scanning module, peripherals and SDIO interface HF RFID read-write module.

Technical parameters

Parameters P6100
Dominant frequency Free scale i.MX515@800MHz
OS WINCE6.0
Memory RAM 256Mb,4Gbit iNand flash
LCD 3.5″QVGA TFT-LCD touch screen,65,000colors, adjustable brightness of backlight

Communication

 USB2.0,RS232,Bluetooth,WIFI,GPRS/3G(Extended function)
External input Camera ,28full keyboard input, audio input
Output Stereo speaker output, video playback
SD/TF 32GB
Standby Current ≦3mAh
Working current 150mAh
Battery capacity Built in 3700mAh battery + handle 5,200 mAh battery(optional)
Battery voltage 3.7V~4.2V
Stand-by time ≧1500h
Working hours ≧14h
Development platform C#,C++,VB
Cell voltage AC 100–240V,50/60Hz
Charging current 500mA
End-use temperature -20℃~55℃
Storage temperature -20℃~80℃
Protection level Fit IP64, Resistance to dropping:1.8m
Size 153*75*29mm
Weight 330g
Accessories

1×Li-ion battery,1× Charger/adapter,1× USB 2.0 Data cable,1× Touch stylus,

1× SDK disk
The extensible functions
UHF 920.5-924.5MHz(adjustable), 840MHz~950MHz,EPC Class1 Gen2/ISO18000-6C
Read-write distance 4M
Working current 1500mA MAX
HF 13.56MHz ISO14443A/ISO14443B/ISO15693
Read-write distance 0~6cm
Working current ＜90mAh
1D Barcode Terminal brand Symbol SE955,Honeywell N4300,MUNDEO UE966

Bar code type

 UPC/EAN,Code 128,Code 39,Code 93,ode 11,Interleaved 2 of 5,Discrete 2 of 5,hinese 2 of 5,Codabar,MSI,RSS,Data Options,Serial Interface,Event Reporting
Working current 50mA
2D Barcode Terminal brand Symbol SE4500
Bar code type Code39,PDF417,Data Matrix
Working current 450mA
Camera 500W Take a picture Camera shooting
Standard Accessories
Power adapter*1;communication socket*1;USB cable*1
Optional Accessories
Charging base*1;UHF+hand shank*1

Industrial Grade Passive RFID Reader Bluetooth With WinCE 6.0 System

Industrial Grade Passive RFID Reader Bluetooth With WinCE 6.0 System

How to order


Please chat with us through TradeManager or click "contact supplier" to leave massage about the quantity,special modelyou want or your requirement. Then we will reply to you ASAP.
After we confirm all detailed information, we Will Make PI (Performa Invoice) for you to confirm the order if you need.


Payment terms

  • We accept PayPal, Western Union and Bank transfer.
  • 30% deposit and 70% before shipping.
  • No payment collection. We only can deliver goods after getting full payment.
