6 Parameters Patient Monitor Machine High Accuracy 2.8KG Light Weight
6 Parameters Patient Monitor Machine High Accuracy 2.8KG Light Weight
Specifications
Brand Name :
RONSEDA
Model Number :
RSD 7000 Plus
Certification :
CE and ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Usd 850 / Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Set / Month
Delivery Time :
5-10 Working Days
Packaging Details :
Box
Parameter :
SPO2,ECG,NIBP,TEMP,PR,RESP
Screen :
12.1 Inch TFT Color Screen
Weight :
2.8 KG
Dimension :
15X42X32 CM
Standard :
SpO2 Sensor,ECG Cable,Temperature Probe,NIBP Cuff,NIBP Hose,Power Cable
Optional :
Touch Screen,EtCO2,IBP,Printer
Description

12.1 Inch Portable Multi-Parameter Patient Monitoring System Patient Monitor

NAME:

12.1 Inch Portable Multi-Parameter Patient Monitor

P/N:

RSD 7000 Plus

INTRODUCTION:

This equipment can monitor such parameters as ECG,RESP,SpO2,NIBP,and TEMP.
It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for patient moving.

ECG
Lead mode: 3 Leads or 5 Leads
Lead selection: I,II,III,AVR,AVL,AVF,V
Gain:X0.25,X0.5,X1,X2
Heart Rate:15-300BPM(Adult) 15-300BPM(Neonatal)
Resolution:1 BPM
Accuracy:±1%
ST measurement Range: -2.0+2.0mV
Accuracy:±10%
Pacemaker: Yes
Sweep Speed:12.5 mm/s,25mm/s,50mm/s
Bandwidth:Diagnostic:0.05--130Hz
Monitor: 0.5--40Hz
Surgery: 1-20Hz
NIBP
Work mode: Manual, Automatic, STAT
Measure Range:
Adult: SYS: 40-270mmHg
DIA: 10-215mmHg
MEAN:20-235mmHg
Pediatric:
SYS:40-200mmHg
DIA: 10-150mmHg
MEAN:20-165mmHg
Neonatal:
SYS:40-135mmHg
DIA:10-100mmHg
MEAN:20-110mmHg
Resolution:1mmHg
Measurement Type :SYS,DIA,MEAN
SpO2
Measure Range:0-100%
Resolution:1%
Accuracy:2%(70-100%),,0-69%,upspecified
Pulse Rate:20-254BPM
Resolution:1BPM
Accuracy:±3BPM
RESP
Measure Range:0-150RPM
Resolution:1BrPM
Accuracy:±2%
TEMP
Measure Range:0-50C
Resolution:0.1C
Accuracy:±0.1C
Power Requirements:
Voltage: 13-20V DC
Power Consumption: 8 watts, typical
Battery: 1 sealed Li-battery
Battery Life: 5 hours, typical
Recharge Time: 2.5 hours, typical
Environment:
Operating Temperature: 59°to 95°F(15°to 35°C)
Storage Temperature: 23°to 122°F(-5°to 50°C)
Operating Humidity: 15℅ to 90℅,non-condensing


FEATURES:

12.1 inch color TFT LCD display, 8 waveforms
Rechargeable high-quality Built-in Li-battery
Easy to learn and use with simplified menus and keys
Easy to connect with central monitoring system
Suitable for adult, pediatric and neonate
Supporting large capacity of storage
ST section and cardiac arrhythmia analysis anti-ESU and defibrillator
Display mode: Standard, Large Font, Trend Table, Full lead ECG, Oxy CRG

WARRANTY:

One years after receiving item.

PICTURES:

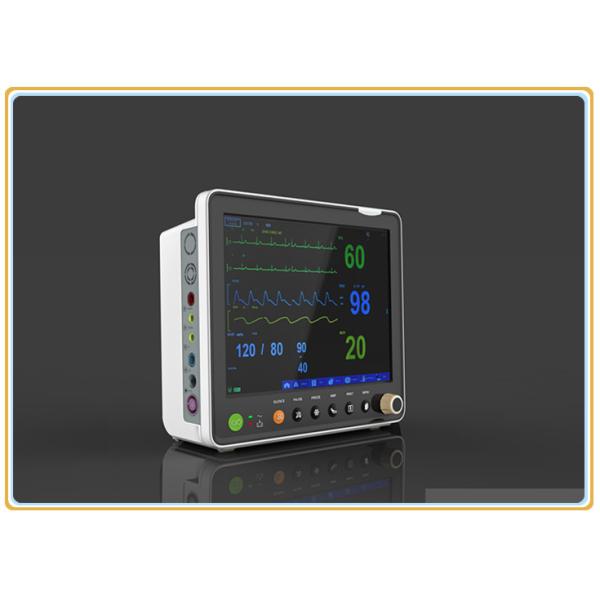

6 Parameters Patient Monitor Machine High Accuracy 2.8KG Light Weight
