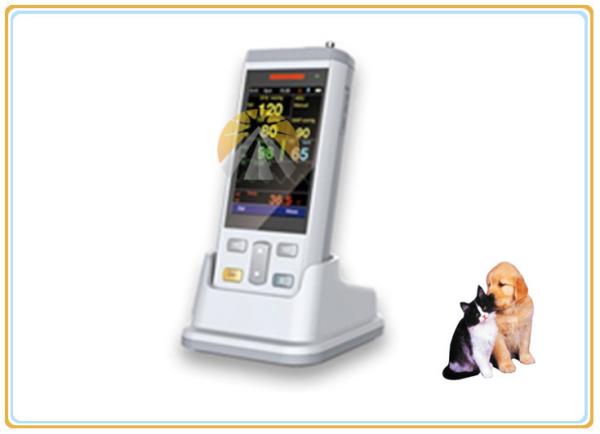

Portable Desktop Vet Patient Monitor 3.5 Inch LCD Screen 3 Parameter
Portable Desktop Vet Patient Monitor 3.5 Inch LCD Screen 3 Parameter
Specifications
Brand Name :
RONSEDA
Model Number :
RSD VT200V
Certification :
CE and ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Usd 350 / Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Set / Month
Delivery Time :
5-10 Working Days
Packaging Details :
Box
Parameter :
SPO2,NIBP,TEMP,PR
Screen :
3.5 Inch LCD Screen
Weight :
1.5 KG
Dimension :
15X20X32 CM
Standard :
SpO2 Sensor,Temperature Probe,NIBP Cuff,NIBP Hose,Power Cable
Description

Veterinary Use 3 Parameter Patient Monitor SpO2 NIBP TEMP Portable Desktop 3.5 Inch

VT200VA:NIBP,Spo2,Temp
VT200VB:NIBP,Temp
VT200VC:Spo2,Temp

NAME:

1. The smallest and exquisite handheld vital sign monitor in the worldwide
2. Accurate measurement in 0.05% Low perfusion Index,the world leading production in the movement environment
3. Provide the parameter of PI( Perfusion Index 0.05%-20%)
4. Accurate measurement in all kind of extreme environment measurement such as neonatal and shock patients
5. NIBP adopt SAWAA(Self-Adaptive-Waveform-Amplitude –Adjust)algorithm and SAFD(Self-Adaptive-Fast-Deflation)algorithm
6. Easy operation by 3.5 inch color TFT
7. Multiple vital signs measurement parameters for collocation optional

P/N:

RSD VT 200V

INTRODUCTION:

NIBP
Measure Method: Automatic oscillometric
Patient: Adult and Pediatric
Measurement unite: mmHg/kPa selectable
Measurement mode: Manual, Auto, STAT
Measurement Type: SYS, DIA, MAP
Measurement interval in AUTO mode:1,2,3,5,10,15,20,30,45,60 and 90 Min
Measuring period in STAT mode: 5 Min
Measure range:
Adult:30～255 mmHg; child: 30～160 mmHg
Accuracy: 1 mmHg
Alarm limits range:
SYS : Upper limits70～250 mmHg, Lower limits 60～180 mmHg
DIA : Upper limits 40～200 mmHg, Lower limits35～150 mmHg
MAP : Upper limits 60～230 mmHg, Lower limits 50～160 mmHg
SpO2
Measure Range: 35～100%
SpO2 Accuracy: 2%(70～99%), 3%(40～70%)
Pulse Rate Range: 0～254 bpm
Pulse Rate Accuracy: 1 bpm
Alarm limits range:
SpO2 upper limits : 95～100% lower limits: 85～96%
Pulse Rate:keep up with the heart rate
Temperature
Channel: 1
Input: Body surface thermal-sensitive resistor temperature sensor
Measurement Unit: °C/°F selectable
Measure range: 0～50℃
Alarm limits range: Upper limits 36～45℃ Lower limits 34～38℃
Measure accuracy: 0.1℃

STANDARD CONFIGURATION:

NIBP, SPO2, TEMP

WARRANTY:

One years after receiving item.
