Specifications
Brand Name :
RONSEDA
Model Number :
RSD BA210
Place of Origin :
China
MOQ :
1 Set
Price :
Usd 480 / Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Set / Month
Delivery Time :
5-10 Working Days
Packaging Details :
Box
Certification :
CE and ISO
Name :
Mainstream CO2 Sensor
Weight :
0.5KG
Dimension :
15X20X15 CM
Parameter :
EtCO2
Data Interface :
RS232 , bi-directional, 19200 baud rate, standard N-8-1
Description

Mainstream EtCO2 Sensor

NAME:

Mainstream EtCO2 Sensor

P/N:

RSD BA210

INTRODUCTION:

The BA210 Sensor is a highly integrated mainstream CO2 Sensor which developed by RSD medical, who had tens of years IR measurement instrument development experience. It’s the one-step capnography solution for patient monitoring system. Within a very compact size, it provides measurement of End-Tidal Carbon Dioxide(ETCO2), respiration rate, capnogram, which can cover most of requirement from the patient monitoring system. With a very simple RS232 interface and industry compatible protocol, it’s fairly easy to connect BA210 to any patient monitoring system and other medical treatment system where CO2 sensor is needed.

With the stability, flexibility and easy to use as the built in essence, BA210 is your ideal choice for your capnography subsystem.

SPECIFICATIONS:

Transducer Type Mainstream CO2 Sensor
Principle of Operation Non-dispersive infrared(NDIR), dual wavelength, no moving parts
Initialization Time Capnogram displayed in less than 5 seconds,full specifications within 2 minutes
CO2 Measurement Range 0 – 114 mmHg, 0 – 15 %, 0 – 15.2 kPa(760mmHg)
Rise Time

Less than 60 ms - Adult Reusable or Single-Patient-Use Airway Adapter

Less than 60 ms - Infant Reusable or Single-Patient-Use Airway Adapter
CO2 Resolution

0.1mmHg 0 to 59 mmHg

0.25 mmHg 60 to 114mmHg
CO2 Accuracy

0 – 40mmHg ±2 mmHg

41 – 76 mmHg ±5% of reading

77 – 114 mmHg ±8% of reading

Above 80 BPM ±12% of reading
CO2 Stability

Short term drift: Drift over four hours shall not exceed 1 mmHg maximum

Long term drift: Accuracy specification will be maintained over a 120-hour period
Sampling Frequency 100 Hz
Respiration Rate Range 2 to 150 Breaths Per Minute (BPM)
Respiration Rate Accuracy ±1 breath

Compensations

(Supplied)

Barometric pressure: 400 mmHg to 800 mmHg

Operator selectable O2, N2O, He and agent compensation
Calibration No routine user calibration required. An airway adapter zero is required when changing
Airway Adapters Single-patient-use or reusable, < 5 cc dead space (adult), < 1 cc dead space infant
Voltage Requirements 5.0 VDC ±5%
Power Consumption

1.2Watts typical (Steady State)

Up to 1.8 Watts maximum on power up (Warm up)

Interconnection

(The RS232 connector version is also provided)

Standard - Lemo Redel 8-pin plastic connector

Pin out:

1. VA 5.0VDC

2. Shield Shield

3. DGND Digital return

4. VSRC 5.0VDC

5. TxD Serial data from Sensor

6. RxD Serial data from Host

7. AGND Analog return

8. SYNC Unused
Data Interface RS232 , bi-directional, 19200 baud rate, standard N-8-1.
Data Output CO2 gas concentration(mmHg), End-tidal CO2, Inspired CO2, Respiratory Rate. Gas and barometric pressure compensated when supplied by host.
Temperature and Humidity

Operating: 0 to 45℃, 10 to 90% RH, non-condensing

Storage: -40 to 70℃, <90% RH, non-condensing
Water Resistance IPX4 – Splash-proof (sensor head only)

FEATURES:

1. Real time CO2 monitoring and data upload

2. Dual wavelength , non-dispersive infrared(NDIR)

3. With fast electrical modulation MEMS IR source, moving part was avoid and long lifetime was achieved

4. Includes temperature control system, to prevent airway adapter condensing

5. Barometer pressure and Gas temperature compensation

6. Patent on calibration algorithm, no routine user calibration required

7. Small size and lightweight

WARRANTY:

One years after receiving item.

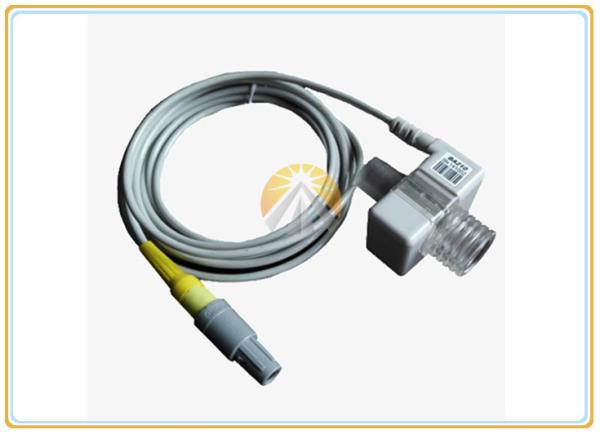

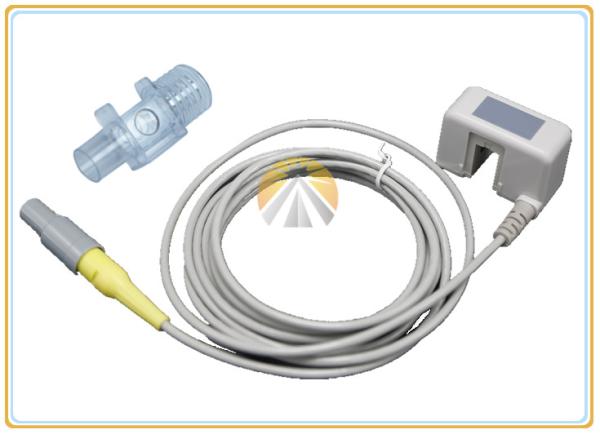

PICTURES:

High Flexibility Mainstream Etco2 Sensor 0.5KG Light Weight CE Approval
