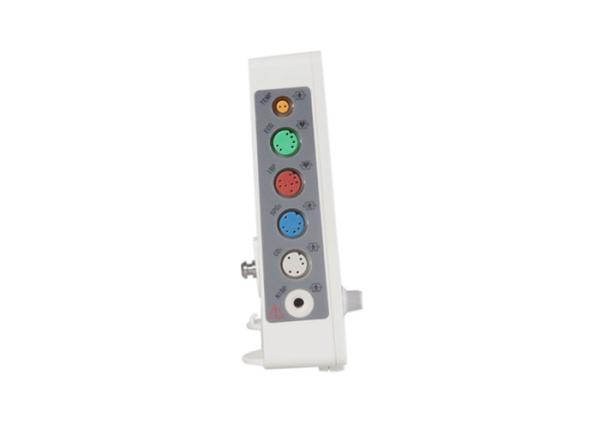

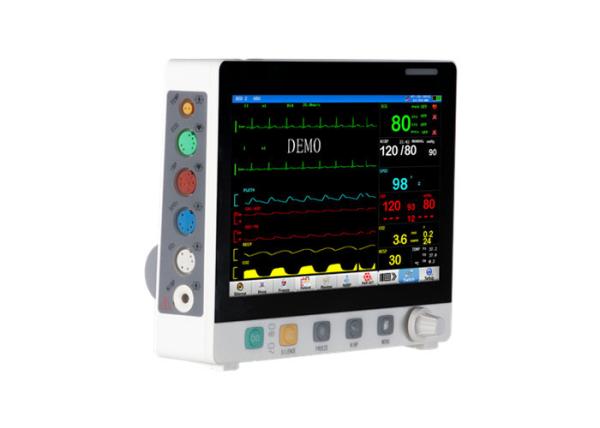

10 Inch Portable Patient Monitor Multi Parameter Medical Vital Signs Monitor
10 Inch Portable Patient Monitor Multi Parameter Medical Vital Signs Monitor
10 Inch Portable Patient Monitor Multi Parameter Medical Vital Signs Monitor
10 Inch Portable Patient Monitor Multi Parameter Medical Vital Signs Monitor
10 Inch Portable Patient Monitor Multi Parameter Medical Vital Signs Monitor
10 Inch Portable Patient Monitor Multi Parameter Medical Vital Signs Monitor
Specifications
Brand Name :
TRUMEDAX
Model Number :
S10
Certification :
CE and ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Usd 750 / Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Set / Month
Delivery Time :
5-10 Working Days
Packaging Details :
Box
Parameter :
SPO2,ECG,NIBP,TEMP,PR,RESP
Screen :
10 Inch TFT Color Screen
Weight :
3 KG
Dimension :
15X42X32 CM
Standard :
SpO2 Sensor,ECG Cable,Temperature Probe,NIBP Cuff,NIBP Hose,Power Cable
Optional :
Touch Screen,EtCO2,IBP,Printer
Description

Portable 10 Inch Multi Separated Parameter Board Patient Monitor

10 Inch Portable Patient Monitor Multi Parameter Medical Vital Signs Monitor

10 Inch Portable Patient Monitor Multi Parameter Medical Vital Signs Monitor

P/N:

S10

INTRODUCTION:

Patient Monitor is used in hospital to monitor vital sign of patient, like ECG, PR, Spo2, Resp.,Temp. NIBP and so on. It can be used in normal patient room, ICU, NICU.

FEATURES:

1. Spo2 Pitch Tone Variation;
2. Hemodynamic Calculations;
3. Waveforms are user selectable;
4. Standby mode for energy saving and suspend monitoring;
5. Separated parameter board: main, ECG, SPO2, NIBP board are independent;
6. Display:10" color TFT screen, high resolution: 800×600 dpi;
7. Time delay:Time delay switch-off function to save data when monitor turn off suddenly;
8. Fanless: Use special fanless cooling technology in the device to provide users quiet environment;
9. Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);
10. Advance patient Manage: gender, full name, ID no., room no., bed no., weight,height, blood type, paced or not, remakes

SPECIFICATION:

play

10”color TFT

Rolling and refreshing waveform display

Resolution: 800×600

Multi display selectable including:

Standard display

Large-font display

Trend coexist display

OxyCRG dynamic view display

7 full ECG waveforms display

Bed-to-bed view display(optional)

 Recorder

Build-in, thermal array

Plethysmogram caveform:2 /3 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s
Trace

9 waveforms (7 ECG, 1 SPO2 and 1 RESP)

Sweep speed:6.25mm/s, 12.5mm/s,25mm/s,50mm/s

 Indicator

Power/battery indicator light

QRS beep and alarm sound
Battery

Rechargeable lithium battery, 12v/4AH

Max.24 hour for charging, 2 hours for continue working

 Recording type

NIBP: 1000 groups

Alarm: 200 groups

SD card external storage(optional)
Storage

Connected to central monitoring system

TCP/IP netting platform

Wifi connector (optional)

 Alarm

User-adjustable High, Medium and Low limits 3-level

Audible and visual alarm
Trend

Parameter graphic and tabular trends:

5s/piece, 8 hours;

1min/piece,168 hours(24hour×7days)

5min/piece, 1000 hours

 Networking

Frozen waveform record

NIBP recall record

Trend table record

Alarm record

Fixed -time record

STANDARD CONFIGURATION:

ECG, NIBP, SPO2, TEMP, RESP, PR, Rechargeable Lithium battery.
OPTIONAL:

Dual TEMP

Dual IBP

ETCO2 (side stream)

Thermal recorder

Wall mount

Trolley

WARRANTY:

One years after receiving item.
