High Resolution Portable Ultrasound Machine For Veterinary Animal 256*150*326mm Size
High Resolution Portable Ultrasound Machine For Veterinary Animal 256*150*326mm Size
Specifications
Brand Name :
RONSEDA
Model Number :
RSD V540
Certification :
CE and ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Usd 3500 / Set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Set / Month
Delivery Time :
5-10 Working Days
Packaging Details :
Box
Parameter :
Ultrasound
Screen :
10.4 Inch LCD Screen
Weight :
4.5 KG
Dimension :
256*150*326mm
Standard :
4.0/5.0/6.5/7.5MHz Transrectal Linear probe
Color :
Grey
Description

10.4 High Resolution Color LED Digital Veterinary Ultrasound Scanner

FEATURES:

10.4' high resolution color LED backlight display, high contrast and high brightness and wide visual angle
* Adopt ARM7 embedded control system + FPGA signal processing system + well selected ultrasound hardware system,etc all make the unit more stable
* Menu operation system
* Two probe sockets, different type of optional probe identified automatically
* Weight: 4.5kg(without accessories)
* Dimension: 256*150*326mm (L*W*H)

P/N:

RSD V540

CONFIGURATION:

1. Main unit with 10.4-inch Color LED monitor
2. 4.0/5.0/6.5/7.5MHz Transrectal Linear probe
3. Rechargeable Lithium battery
4. Probe hanger
5. Power adapter & Power cord
6. User's Manual (English version)

SPECIFICATION:

* 10.4' high resolution color LED backlight display, high contrast and high brightness and wide visual angle
* Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, etc all make the unit more stable
* Menu operation system
* Two probe sockets, auto-identify different optional probe
* Body marks: equine, bovine, swine, sheep, goat, canine, feline, llama,etc
* Display mode: B 2B, B, B/M, M
* Adjustable depth: 10 grades, max depth to 236mm
* Contrast: 27 to 90dB
* Gray scale: 256
* 8 steps intelligent TGC
* Frame frequency: 30 frames /second
* 8 kinds pseudo colors
* Image storage: 4G hard disk to permanently store about 5000 frames images without loss when power off
* Cine loop: 256 frames
* Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
* The gravel software package with real-time position line measurement
* Normal measurement: distance, perimeter, area, volume, angle, length and area stenosis ratio measurement
* Dual TV output: PAL/NTSC, can connect video printer when necessary
* Power supply:100-240V 1.2-0.6A frequency: 50-60Hz
* Power supply adaptor output: DC12.8V 3.0A
* Main unit weight: 4.5kg (without accessories)
* Main unit dimension: 256*150*326mm (L*W*H)

WARRANTY:

One years after receiving item.

PICTURES:

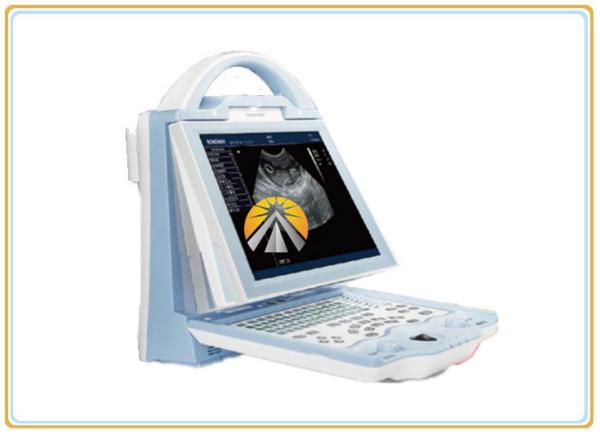

High Resolution Portable Ultrasound Machine For Veterinary Animal 256*150*326mm Size
