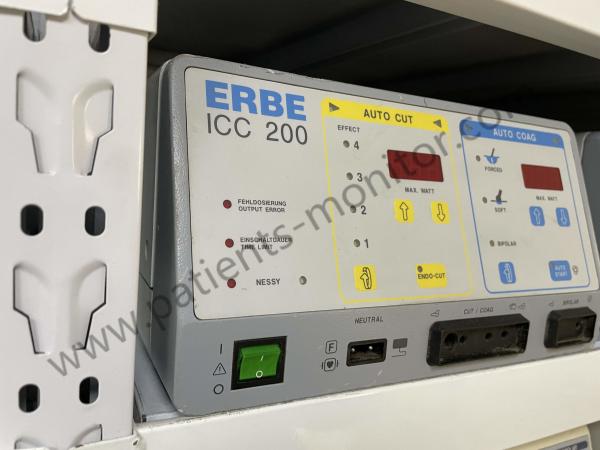

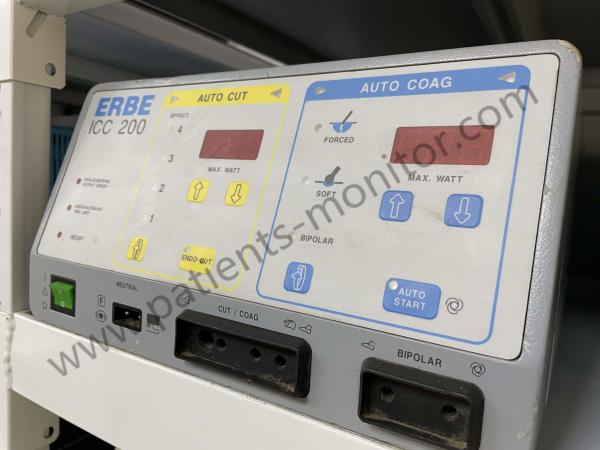

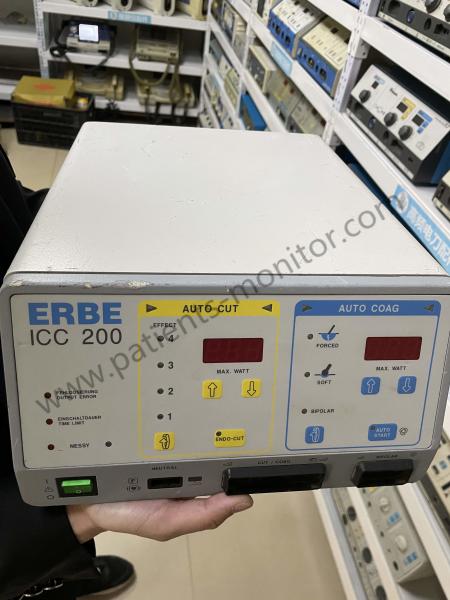

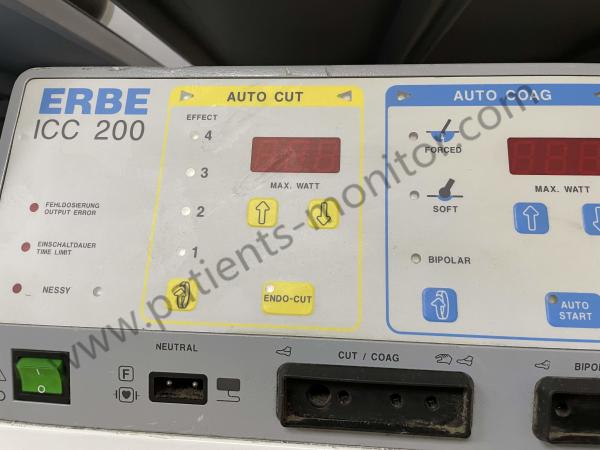

Used ERBE ICC 200 Electrosurgical Machine Hospital Medical Monitoring Devices

► Brief Introduction

The ICC 200 is a high-frequency surgical unit for cutting and coagulation.

Unintentional activation of an HF generator can lead to burns on the patient if the active electrode hereby touches the patient directly or indirectly through electrically conductive objects or wetcloths.Unintentional activation of an HF generator can, for example, be caused by:

• Unintentionally pressing a foots witch pedal
• Unintentionally pressing a finger switch
• Defective finger switches, foots witches or cables
• Penetration of electrically conductive liquids (blood, amniotic fluid, urine, physiological saline solution, irrigation fluids etc.) into finger switches or foot switches.
• Errors within the high-frequency surgical unit.

► Setting

► Soft Coagulation

• HF voltage waveform unmodulated sinusoidal alternating voltage
• Crest factor C, at RL = 500 ohms C = 1.4 for all setttings
• Rated frequency of the HF voltage 330 kHz
• Peak value of the HF voltage max. 190 Vp
• Constancy of the HF voltage automatically controlled up to PHFmax.
• HF rated power 120 watts at 125 ohms
• HF power limitation (PHFmax.) from 1 watt to 120 watts in 1 watt steps
• Setting of the HF power limitation via up/down keys
• Display of the HF power limitation 7-segment display, 3 decimal places
• Precision of the HF power limitation +/- 1 digit or +/- 15%
• Activation of Soft coagulation via key or via pedal

► Forced Coagulation

• HF voltage waveform pulse-modulated alternating current (ST generator)
• Crest factor C, at RL=500 ohms C = 5 at 120 Wmax, C = 11 at 5 Wmax
• Rated frequency of the HF voltage 1 MHz
• Peak value of the HF voltage, Version 1 max. 1300 Vp
• Peak value of the HF voltage, Version 2 max. 2300 Vp
• Peak value of the HF voltage, Version 3 max. 2300 Vp
• HF rated power 120 watts at 350 ohms
• HF power limitation from 1 watt to 120 watts in 1 watt steps
• Setting of the HF power limitation via up/down keys
• Stability of the HF power see diagram Forc. Coag. power via RL
• Display of the HF power limitation 7-segment display, 3 decimal places
• Precision of the HF power limitation +/- 1 digit or +/- 15%
• Activation of the Forced coagulation via key or via pedal

Thank you for your time and interest. Any inquiry of Used ERBE ICC 200 Electrosurgical Machine will be highly appreciated and thanks for your support.
