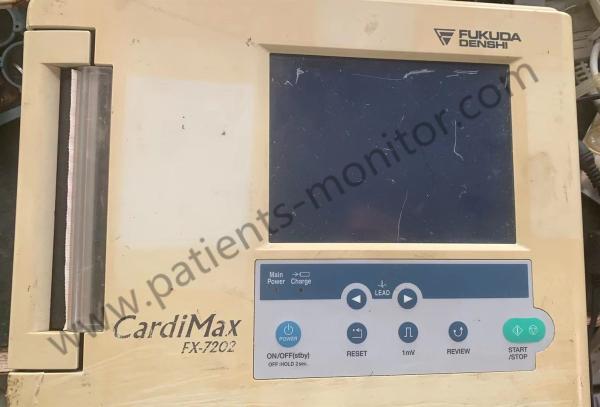

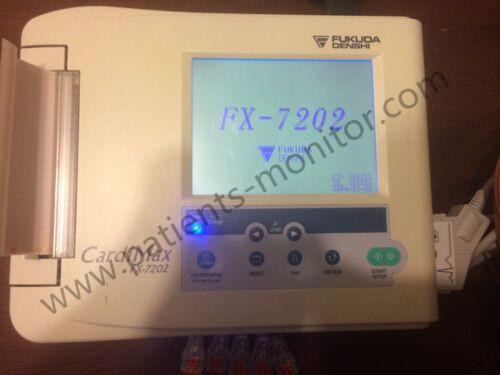

Fukuda Denshi CardiMax FX-7202 Electrocardiograph ECG Machine Hospital Medical Equipment

► Brief Introduction

The Cardimax FX-7202 measures a standard 12-lead electrocardiogram (ECG) using advanced microprocessor technology. The FX-7202 is compact and portable. With an optional rechargeable battery, you can take it anywhere to perform a medical examination.

► Overview

1.Touch-panel display

Displays ECG waveforms, patient information, and equipment status. Used also to enter patient data or perform various operations by touching the touch-panel keys (soft keys) provided on the screen.

2.Operation panel

Provides the controls for the Cardimax FX-7202 operation.

3.Magazine open button

Push to open the magazine cover.

4.Paper magazine

Load the recording paper here.

5.Thermal print head

Records (prints) the ECG waveforms and characters, such as the measured values.

6.LAN port (10 BASE T)

Connect the LAN cable here for connection to a personal computer.

7.AC inlet

Plug in the matching end of the power supply cord here.

8.Potential equalization terminal

Connect the potential equalization cable (CE-12) to this terminal.

9.BATTERY PACK compartment

Install the optional battery pack (T8HRAAU-4713) in this compartment.

10.CARTRIDGE compartment

Install the optional program cartridge (PC-7403) in this compartment.

11.PATIENT connector

Plug in the patient cable here.

► Before attaching the electrodes to a patient

Check the condition of the patient

Check the condition of the patient and make sure they are resting quietly and comfortably. If the patient is tense, relieve tension by talking to the patient. For example, ask them to "Relax your arms and legs and feel completely at ease" or "Breath normally". You cannot record an accurate ECG if the arms and legs of the patient are tense or the patient keeps moving about. This will cause problems such as electrocardiogram interference and unstable baseline.

Cleaning the skin

Use an alcohol-moistened cloth and wipe parts of the patient's body where the electrodes are going to be attached to remove dirt and fatty oil. If foreign substances remain on the skin or an electrode, the contact resistance will increase and the recording will become unstable.

Applying Keratin cream

Apply Keratin cream for better contact between the skin and electrode. Rub the cream into the patient's skin until the skin becomes slightly reddish. When applying the cream to different parts of the chest to attach electrodes, make sure the cream on these different parts does not overlap or touch. If adjacent electrode locations on the chest become linked through Keratin cream applied too generously, an accurate ECG will not be recorded.

► Specifications
