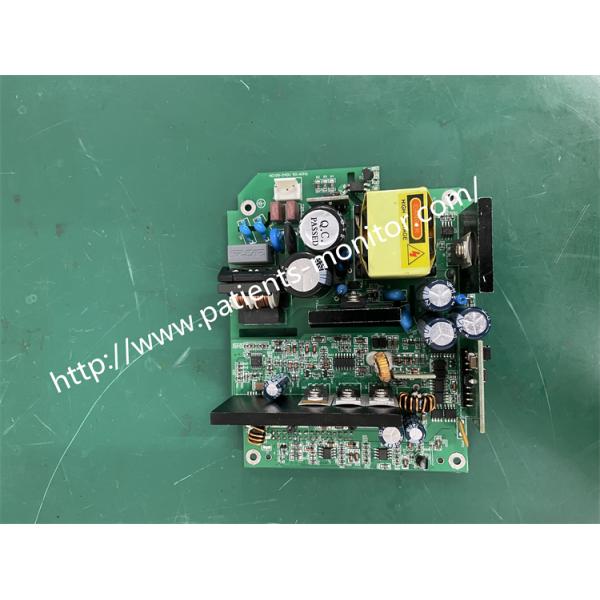

Biolight BLT AnyView A5 Patient Monitor Power Supply Board MODEL PS186 PN16-100-0046 ​

►Quick Detail:

Thank you for browsing our company's products. This product is the Power Supply Board of the Biolight BLT AnyView A5 Patient Monitor, model number is PS186 PN16-100-0046. When you find a local experienced engineer to repair and check, if it is determined that the problem is the Power Supply Board, you can find us to buy this accessory. Make sure your monitoring equipment is functioning properly.

►Repair examples:

When the switch key is pressed, the inverter 1A inputs a high level. After inversion, 2Y outputs a low level. After another inversion, the 3Y pin outputs a high level, thus generating a rising edge pulse. This signal is directly sent to Q4 and Q5 of the power board to turn on the two transistors, so that the enable terminal of the power management chip is powered on, the two chips start to work, the sw terminal outputs 5V and 12V respectively, and the machine starts. When the power button S is pressed again, another rising edge arrives, the D flip-flop is inverted, pin 6 outputs low level, the enable end of the power management chip is powered off and stops output, and the machine shuts down.
According to the fault phenomenon, the machine automatically turns on when the power cord is plugged in. Use a multimeter to check that the base voltages of 1A, 3Y, and Q4 are all there. It should be caused by pressing the power button. This voltage comes from the 5V output of the SW. , it turns out that this power management chip automatically works and outputs 5V when there is no turn-on voltage, making the entire machine work. Purchase a Power Supply Board, replace it with the machine and the machine will work normally.

►FAQ :

1. What reasons are there for you to choose our company’s products and buy them with confidence ?

Our company was founded in 2015. We have customers all over the world. We cooperate with integrity and have many senior engineers with rich technical experience. Although most of the products are second-hand, they have been rigorously tested and inspected. When shipped after purchase, they can Ask us to film product testing videos.

2. How long is your warranty ?

90 days

3. Do you have Ebay or Aliexpress ?

we have our own website and alibaba website.

4. When can i receive my products ?

Usually it will take around 5-7 working days to arrive on your side

►Key features:

► Company situation:

The company has been professionally operating various brands of original medical monitoring instruments since 2015. The company has many professional senior engineers and has sufficient ability to undertake various medical equipment maintenance work. Covering motherboards, sensors, probes, modules, connectors, shells, etc. for various medical monitoring equipment.

►About delivery:

We default to express delivery by DHL,Fedex, We will contact you as soon as possible when sending express delivery. If you have any questions after receiving the express delivery, please feel free to contact us at any time.
