Edan iM8 iM60 Monitor Screen Blacklight Drive Board

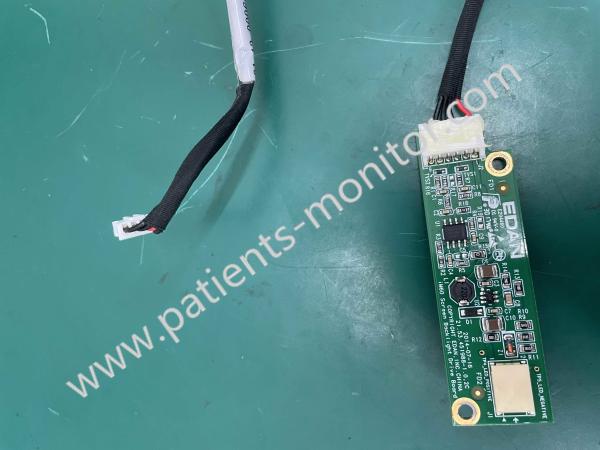

Edan iM8 iM60 Patient Monitor Screen Blacklight Drive Board 21.53.451988-1.0.2C E204460 with Connector Cable 01.13.000657011

► Brief Description

Edan iM8 iM60 (iM series) Patient Monitor Screen Blacklight Drive Board 21.53.451988

Edan iM8 iM60 Monitor Screen Blacklight Drive Board - The screen of the Edan iM8 and iM60 patient monitors can clearly display various monitored patient data and waveforms to make the user's work easier and more convenient. The function of this Screen Blacklight Drive Board is to make the screen of the patient monitor glow brightly and display normally. It is mainly connected to the LCD screen and maintains the normal operation of the screen. The LCD on the Edan iM series patient monitor realizes backlight drive through the backlight board, and the display driver board realizes the transmission of keyboard signals and the conversion of video signals. The video signal is transmitted to the display driver board through J16 on the X5 motherboard, and the video signal conversion is completed.

However, this circuit board is often accompanied by high voltage and is very dangerous, so please be sure to leave it to professionals when installing or disassembling it.

► Specification

Brand: Edan
Product Name: Screen Blacklight Drive Board
Part Number: 21.53.451988-1.0.2C
Sapre Parts: Connector Cable
Cable Part Number: 01.13.000657011
Applicable Machine: iM8, iM60, etc. (iM series)
Product Type: Circuit Board
Color: Green
Size: Small
Application Site: Display Screen
Screen Shape: Square
iM8 Display Size: 12.1-inch
Resolution: 800×600
Board Condition: Used - Good
Warranty: 90 Days

► More Details

The screens of Edan iM series patient monitors are all high-resolution multi-color TFT LCD, which can clearly display patient parameters, waveforms, alarm information, bed number, time, monitor status and other data. Generally speaking, the entire screen is mainly divided into three areas: the first is the information area, the second is the waveform display area, and the third is the parameter display area.

Edan iM Series patient monitors can also display alarm abnormalities. When the monitored patient's physical data exceeds the initial set value, the corresponding parameter value will flash, and the "*" signal will be displayed simultaneously on the screen. Different signals represent different alarm levels, which are mainly divided into three levels. They are red "***" representing high-level alerts, yellow "**" representing medium-level alerts, and yellow "*" representing low-level alerts.

However, if there is an abnormality in the technology or the equipment, although there will be an alarm display on the screen, there will be no "*" signal prompt.

► Detailed Photos

Edan IM8 IM60 Patient Monitor Screen Blacklight Drive Board 21.53.451988-1.0.2C With Connector Cable 01.13.000657011

Edan IM8 IM60 Patient Monitor Screen Blacklight Drive Board 21.53.451988-1.0.2C With Connector Cable 01.13.000657011

Thanks for your interest in Edan iM8 iM60 Patient Monitor Screen Blacklight Drive Board 21.53.451988-1.0.2C E204460 with Connector Cable 01.13.000657011, please feel free to contact me. Thank you for your time and wish you have a happy life.
