M8065-66481 PHiliphhilip MP20 Patient Monitor Bottom Keypad For hospital

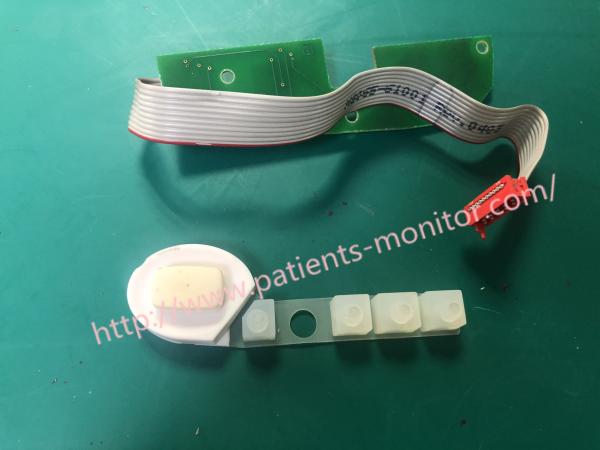

M8065-66481 PHiliphh MP20 Patient Monitor Bottom Keypad

The IntelliVue MP20 (M8001A) patient monitor is equipped with a 10-inch TFT LCD flat-panel SVGA display. MP20 only provides integrated navigation points. Up to six waves can be displayed on MP2Screens (US-up to four waves). 12 ECG traces can be displayed on the 12-lead ECG screen.

MP20/MP30 can be connected to a multi-measurement server (MMS) and any measurement server extension. There is an optional built-in recorder. The flexible module server (M8048A) and all plug-in modules cannot be used with MP20/MP30. Using the optional interface board Bispectral Index (BIS) monitoring is possible.

MP20 Parts

1. M8001-605011 451261003241 Rear Housing 1

2. M8001-42307 451261016801 MMS Lock 2

3. M8063-69501 or M8063-695612 453563499191 or 4512610119012

4. MSL Assembly (w/o cable) 11

5. M8001-605063 4512610111113 Frame Housing Assembly 7

6. M8001-60502 451261002051 Power Supply Assembly 8

7. M8001-68002 451261001741 Power Supply Assembly

8. M8058-684047 4512610266217 Main Board PCA (see note 7 below for monitors with serial number <DE540xxxx)

9. M8067-66561 451261003381 Battery PCA 14

10. M8067-68461 451261003451 Battery PCA

11. M8003-69503 453563499111 Loudspeaker Assembly

12. M8001-64603 451261003331 Backlight Tubes

13. M8001-640224 ,5 451261015341 Touch Screen & Front Housing Assy (Text, English) 19 & 16

14. M8001-640234,5 451261015351 Touch Screen & Front Housing Assy (Symbols) 19 & 16

15. M8001-640124,5 451261015361 Non-Touch Screen & Front Housing Assy (Text, English) 19 & 16

16. M8001-640134,5 451261015371 Non-Touch Screen & Front Housing Assy (Symbols) 19 & 16

17. M8086-665624,6 451261015381 HIF Board (Touch) 18

18. M8086-665824 451261015391 HIF Board (Non-Touch) 18

19. M8001-00111 451261015401 Chassis

20. M8001-64001 451261003271 LCD Display 10.4 inch

21. M8001-66051 451261003341 Backlight Inverter PCA 22

22. M8077-66501 451261003391 Flex Adapter Cable 24

23. M8001-60003 451261003221 Side Cover Blank 4

24. M8001-44102 451261003201 Side Cover Recorder 5

25. M8001-44106 451261007921 Side Cover Recorder Antenna (IIT) n/a

26. M8001-60004 451261007931 Side Cover w/o Recorder Antenna (IIT) n/a

27. M8001-60901 451261003261 Handle 3

28. M8003-69021 453563499091 Quick Release Mount 10

29. M8001-64010 451261003291 Cable Kit (MSL, Backlight)

30. M8001-64011 451261003301 Cable Kit (Rec, HIF, Power on)

31. M8062-61002 451261030071 MP30 Cable Rec./SRL cable

32. M8065-66581 451261003371 Carrier Power on LED PCA 23

33. M8001-60100 451261003231 Recorder 9

34. M8062-66561 451261003361 PCA recorder 12

35. M8092-67521 451261003421 Option Board Standard Assembly

36. n/a 453564112081 Docking System Interface Board MP20/30 (includes 453564099331 IntelliVue Plastic Protective Bracket)

37. n/a 453564099331 IntelliVue Plastic Protective Bracket Docking

38. M8092-67501 451261003411 LAN-Wireless SVGA - nurse call

39. M8081-67501 453563469621 IF MIB/RS232

40. M8082-67501 453563469631 IF Centronics Printer

41. M8086-67501 453563469651 IF HIF, Integral, PS 2

42. M8089-67501 451261028241 IF USB

43. M8087-67501 453563469681 IF Flexible Nurse Call Relay

44. M8086-67521 453563469661 Remote IF

45. M8003-47402 451261019561 Knob Navigation Point

46. M8001-47402 45126101471 Key Silicone Pad

47. M8001-44701 451261019571 Spacer HIF board

48. M8003-60005 451261015961 Battery Door Assembly
