CBL 5 Lead ECG Trunk Cable M1668A REF:989803145061, AAMI/IEC 2.7M 12-pin

CBL 5 Lead ECG Trunk Cable M1668A REF:989803145061

► Brief Introduction

The CBL 5-Lead Electrocardiogram (ECG) Trunk Cable M1668A (Reference Number: 989803145061) is a cable used to connect a 5-lead telemetry leadwire to a patient monitor. The ECG trunk cable is the wire that connects the ECG machine to the electrodes on various parts of the user's body. It is usually made of high-quality insulating materials wrapped around the conductive core to ensure accurate signal transmission and user safety. These wires are usually colored to indicate the parts they are connected to, such as ten-core, five-core or seven-core twisted wires with metal shielding, four of which are connected to limb electrodes and six to chest electrodes. The cable length is 2.7 meters (approximately 9 feet), providing enough flexibility to adapt to different clinical environments. It is equipped with a 12-pin ECG input connector that can be connected to a 5-lead telemetry lead wire. It can replace the old model backbone cables, such as M1520A, M1530A, M1560A, M1570C. Color Code System: Cables are available in both AAMI and IEC color coding systems, facilitating use under different standards.

► Precautions

• Regular inspection: Before each use, check the cable for physical damage or wear to ensure the quality of signal transmission.
• Cleaning and disinfection: In accordance with the hospital infection control policy, regularly clean and disinfect the cable to prevent cross infection.
• Correct connection: Ensure that the cable is properly connected to the lead wire and monitor to avoid looseness or poor contact.
• Before replacing the cable, ensure that the monitor is powered off for safety. Carefully disconnect the old cable to avoid damaging the connector or the device. Plug the 12-pin connector of the new cable into the corresponding port on the monitor to ensure a secure connection. After the replacement is complete, restart the device and test the transmission and display of the ECG signal to ensure that everything is working properly.

► Parameters

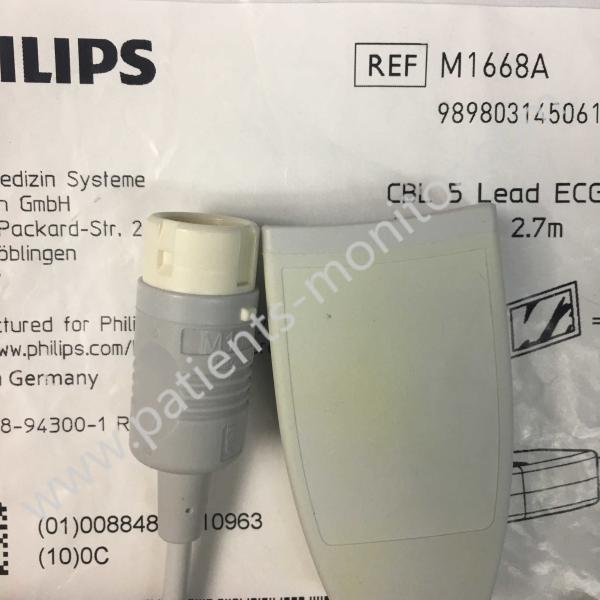

► Product Picture

If you have any question about our new original CBL 5 Lead ECG Trunk Cable M1668A REF:989803145061, please feel free to contact us.

In addition, our company is mainly engaged in the sale, exchange and repair of medical equipment and medical equipment accessories. If you are also interested in other medical equipment and accessories, please feel free to contact us.

► After-sales issues

Our warranty time is 90 days after delivery. Before packing, we will check the goods model carefully, and if the product is in used condition, there are professional engineers who will test the functions of it. Only the test is qualified then we will pack carefully to ensure that you can receive satisfactory and workable goods. And please check the goods asap after you receiving them. If you have any questions, please feel free to contact us.
