Mindray BeneView T1 Patient Monitor Parameter Panel Board 050-000566-01 Replacement Parts

Mindray T1 Monitor Parameter Panel Board 050-000566-01

► Brief Introduction

Mindray Parameter Panel Board 050-000566-01 is an important component in the Mindray BeneView T1 patient monitor, it is responsible for monitoring and processing the patient's physiological parameter signals. Such as Electrocardiogram (ECG), non-invasive blood pressure (NIBP), blood oxygen saturation (SpO2), body temperature, Invasive Blood Pressure(IBP), etc. The design of the panel is very simple. It can process multiple physiological signals simultaneously, integrate them and then feed them back to the machine's screen in real time. It can ensure that the monitoring instrument can accurately display the patient's vital signs.The parameter panel adopts a highly integrated circuit design, which enables it to provide multiple functions in a compact space, which is very suitable for the design of portable patient monitors such as BeneView T1. Due to the highly integrated design, it reduces the overall power consumption of the device and helps extend the battery life of the monitor.

► Functions

Parameter Panel Board 050-000566-01 is the "core processing unit" in the monitor for receiving and managing physiological data. The functions of this parameter panel include:

• Data acquisition: The panel connects various sensors and probes (such as ECG electrodes, blood pressure cuffs, blood oxygen probes, etc.) to collect physiological signals from patients. The data collected by different sensors are processed by the panel and transmitted to the display screen of the monitor.
• Data processing and conversion: The circuit system in the panel processes the collected signals, converts the original analog signals into digital data, and analyzes them through algorithms to ensure accurate display of vital signs such as electrocardiogram (ECG), blood oxygen saturation (SpO2), non-invasive blood pressure (NIBP), respiratory rate and body temperature.
• Multi-parameter integration and real-time monitoring: The panel can process the input of multiple physiological parameters and integrate these data into the display system of the monitor in real time, so that medical staff can monitor the health status of patients in real time.
• High precision and reliability: The panel has high-precision data processing capabilities, which can ensure that the physiological data displayed by the monitor is accurate and reliable, reduce false alarms, and improve the effectiveness of clinical monitoring.

► Parameters

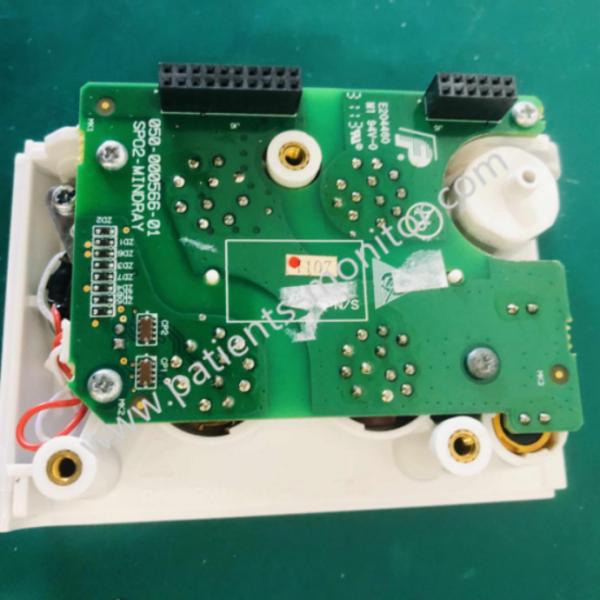

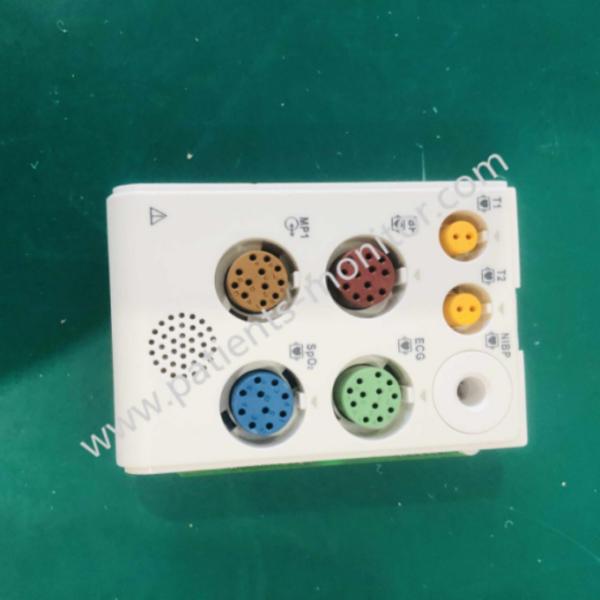

► Product Picture

If you have any question about our Mindray BeneView T1 Patient Monitor Parameter Panel Board 050-000566-01, please feel free to contact us.

In addition, our company is mainly engaged in the sale, exchange and repair of medical equipment and medical equipment accessories. If you are also interested in other medical equipment and accessories, please feel free to contact us.

► After-sales issues

Our warranty time is 90 days after delivery. Before packing, we will check the goods model carefully, and if the product is in used condition, there are professional engineers who will test the functions of it. Only the test is qualified then we will pack carefully to ensure that you can receive satisfactory and workable goods. And please check the goods asap after you receiving them. If you have any questions, please feel free to contact us.
