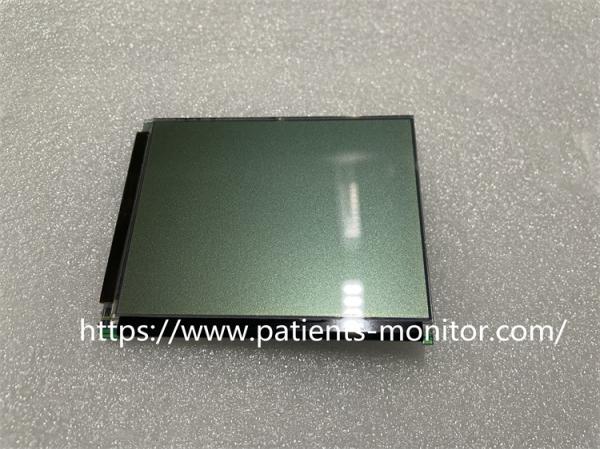

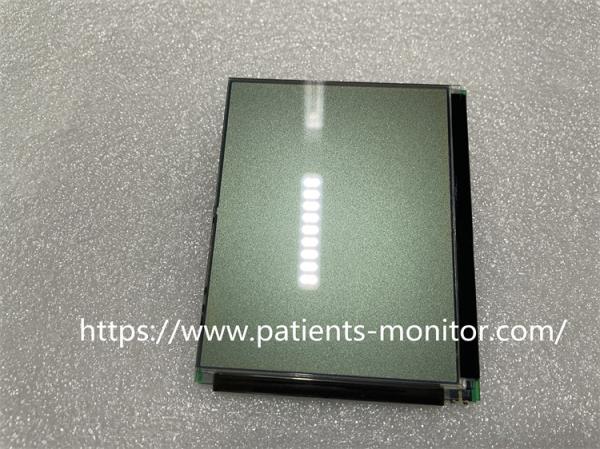

Mortara ELI 250 ECG Machine Display Assembly TRULY MTG2119-B1 used good condition

►Quick Detail:

ELI 250 ECG monitor Display Assembly TRULY MTG2119-B1

The TRULY MTG2119-B1 electrocardiograph display component is used on the Mortara ELI 250 ECG Machine. It consists of an external protective glass, color filter, horizontal polarization, positive electrode circuit, liquid crystal layer, negative electrode circuit, thin film transistor, vertical polarizer, and backlight layer to form a high-resolution color LCD display. With an 8.5 x 11 inch screen, it can be easily installed inside the ECG machine due to its high resolution. The EL 250c electrocardiograph is compact and convenient to carry out externally, and has comprehensive functions. The chest and limb inversion indicators on the display can help clinical doctors detect possible errors during electrocardiogram acquisition. 1k SPS/channel capture for signal evaluation during analysis, display, and printing. The shell of the machine is a fixed component of the display panel, which fixes the display panel and driver board, as well as providing interaction buttons between the display and humans; The driver board is used to control signal transmission and drive the display panel, responsible for converting the current signal transmitted from the graphics card into the digital signal required by the panel, while storing various necessary information for the display.

The middle liquid crystal layer is the core component that controls the color rendering of light. Normally, when not powered, the liquid crystal layer is arranged horizontally or vertically. When powered on, the backlight layer emits white light, which passes through a vertical polarizer to form polarized light in a single direction; At the same time, the input voltage of the thin film transistor forms a circuit with the positive and negative electrode circuits, generating an electric field that causes the liquid crystal molecules to deflect. The electric field strength formed in different areas of the display screen varies, and white light passing through liquid crystal molecules in different areas will produce light of different intensities. The color filter under the outer protective glass contains three colors: red, green, and blue. When white light is irradiated, different intensities of red light, green light, and blue light are generated according to the intensity of the light. After mixing the three types of light, different colors are formed, presenting the colorful images we see

►Key features:

► Company situation:

The company has been professionally operating various brands of original medical monitoring instruments since 2015. The company has many professional senior engineers and has sufficient ability to undertake various medical equipment maintenance work. Covering motherboards, sensors, probes, modules, connectors, shells, etc. for various medical monitoring equipment.

►About delivery:

We default to express delivery by DHL,Fedex, We will contact you as soon as possible when sending express delivery. If you have any questions after receiving the express delivery, please feel free to contact us at any time.
