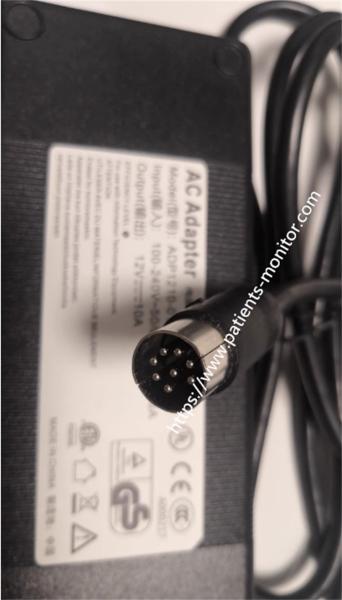

New AC Adapter ADP1210-01 8pin for Mindray M5 M7 M6 Ultrasound Machine Power Supply

►Quick Detail:

Thank you for browsing our company's adapter products
The product model is AC Adapter ADP1210-01 8pin for Mindray M5 M7 M6 Ultrasound Machine Power Supply
It is a perfect match for Mindray M5 M7 M6 Ultrasound Machine Power Supply
This adapter supports multiple plug types, including EU/US/UK/Australia plug types.
8-PIN connection terminal: The 8-PIN connection ensures a stable power supply.
Wide voltage range: compatible with 100-240V, so you can safely use it anywhere in the world.
Powerful power output: 12V 10A 120W high output for fast charging.
Specially designed for Mindray M5 M7 M6 Ultrasound Machine Power Supply, achieving optimal charging performance.

► Working principle of adapter:

Output wire cold pressed terminal welding connection, insulated with heat shrink tubing. Front view of PCBA module, with top soldered fuse, temperature fuse and varistor soldered on the left side of the fuse, insulation wrapped with heat shrink tubing, NTC thermistor soldered on the left side, safety X2 capacitor and common mode inductor soldered below, and high-voltage filter capacitor soldered on the right side. Weld the transformer below the high-voltage filtering capacitor, with the output terminal in the lower left corner. Weld the synchronous rectifier tube, filtering solid-state capacitor, and output filtering inductor. High voltage filtering capacitors are covered with foam, and large areas of adhesive filling and reinforcement are applied between components. The back of the PCBA module is soldered with a rectifier bridge, primary control chip, feedback optocoupler, and synchronous rectification controller. There is a clear isolation area between the first level. Through observation of the PCBA module, it was found that the power adapter adopts a flyback switch power supply design, with a fixed voltage output, and the output voltage is fed back by an optocoupler.

►Key features:

► Company situation:

The company has been professionally operating various brands of original medical monitoring instruments since 2015. The company has many professional senior engineers and has sufficient ability to undertake various medical equipment maintenance work. Covering motherboards, sensors, probes, modules, connectors, shells, etc. for various medical monitoring equipment.

►About delivery:

We default to express delivery by DHL,Fedex, We will contact you as soon as possible when sending express delivery. If you have any questions after receiving the express delivery, please feel free to contact us at any time.
