Compound Feed Heavy Duty Lockstitch Sewing Machine FX4400
Compound Feed Heavy Duty Lockstitch Sewing Machine FX4400
Compound Feed Heavy Duty Lockstitch Sewing Machine FX4400
Compound Feed Heavy Duty Lockstitch Sewing Machine FX4400
Compound Feed Heavy Duty Lockstitch Sewing Machine FX4400
Compound Feed Heavy Duty Lockstitch Sewing Machine FX4400
Specifications
Place of Origin :
China
Brand Name :
FOXSEW
Certification :
CE
Model Number :
FX4400
Stitch Formation :
Lock Stitch
Mechanical Configuration :
Flat-Bed
Max. Sewing Speed :
2000 r.p.m
Stitch Length :
0-9 mm
Power :
400W 1400 r.p.m and 550W Servo Motor
MOQ :
1PCS
Price :
Negotiation
Packaging Details :
Cartons,wooden case
Delivery Time :
7-20days
Payment Terms :
T/T,L/C
Supply Ability :
2000PCS /MONth
Type :
Heavy Duty Sewing Machine
Description

Compound Feed Heavy Duty Lockstitch Sewing Machines series

FX-4400 (Single-needle)

FX-4420 (Double-needle)

FX-4401 (No backstitch)

FX-4400L (Left hook)

FX-4400D (Single-needle and thread trimmer with reverse sewing)

FX-4420D (Double-needles and thread trimmer with reverse sewing)

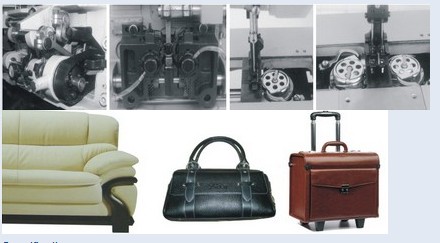

Features: Compound Feed Heavy Duty Lockstitch Sewing Machine is the latest of FOXSEW brand heavy duty sewing machines, which is designed with large vertical rotating hooks for thread loop catching and sliding bars for thread up-taking. It has been sub-classed into single needle, two needles, single needle with under-trimmer and two needles with under-trimmer. The application of needle bearings for arm shaft and hook shaft, dog belt driving, plunger pump lubrication and compound feed by needle bar, presser foot and feed dog provides this series with such splendid features as smooth running, quiet working and a long service life. It is also equipped with a safety clutch to prevent the hooks from damage by over-duty operation. So it is especially available in stitching car seat cushions, safety belts, safety air bags, tents, parachutes, etc..

Compound Feed Heavy Duty Lockstitch Sewing Machine FX4400

Specifications:

Model

FX-4400

Max. Sewing Speed

2000 r.p.m

Stitch Length

0-9 mm

Needle Bar Stroke

36 mm

Thread Take-up lever stroke

74.5 mm

Presser foot lift

By Hand: 8mm By Knee: 16 mm

Needle Size

DPX17 18#-23#

Rotating Hook

Automatic Lubricated Large Rotary Hook

Lubrication

Automatic Lubricated

Safety Clutch device

Yes

Needle Gauge

Standard: 6.4mm, 3.2, 4.8, 9.5, 12.7 mm is available.

Motor

400W 1400 r.p.m and 550W Servo Motor

Compound Feed Heavy Duty Lockstitch Sewing Machine FX4400
