Two needle independent rows, four threads, double chain stitch, walking foot system, sewing for Big Bags, FIBC Bags, Container Bags, Bulk Bags, Jumbo Bags, Sack Bags, Recycle Bags, Stone Bags, Big Bags and Tonne Bags, Non Woven Bags, Environment Big Bags, Filter Bags, etc...

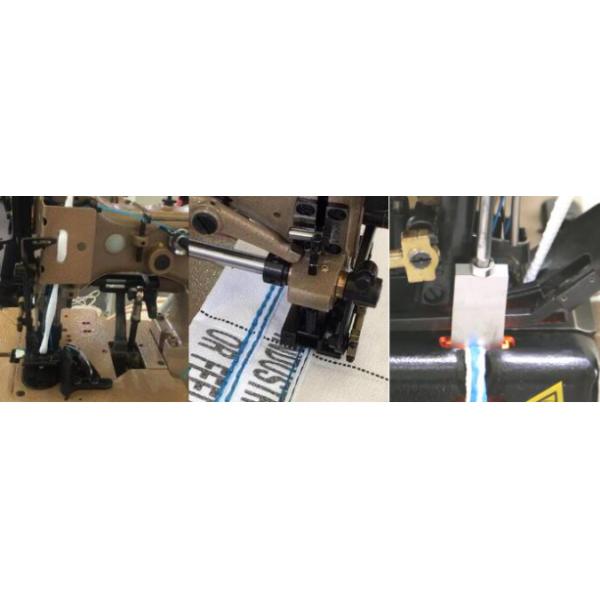

Heating Cutter, Guides for filler cord from the top or from below for sealing the needle punctures of the left needle, Upper and lower feed with pneumatic operated presser foot and upper feed dog lifter, pneumatic hot thread chain cutter left of the needle.

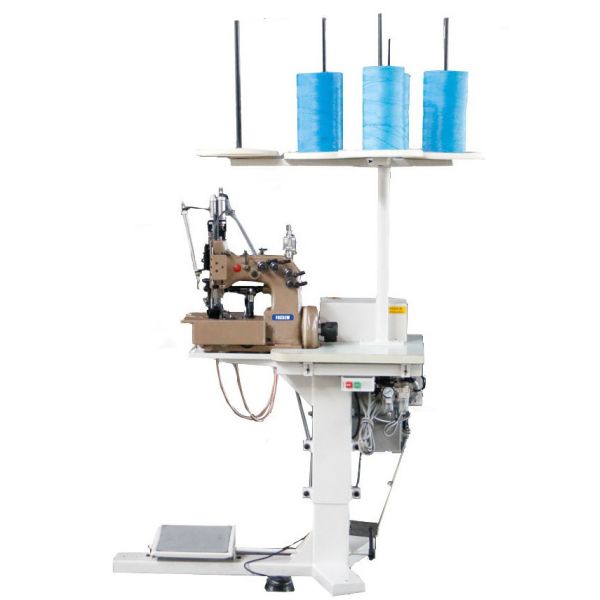

Big Bag and Container Bag Making Machine, Double Needle Chain Stitch FIBC Big Bag Making Sewing Machine, FIBC 2-Needle Chainstitch Container Bag Sewing Machine, Two Needle Chain Stitch Big Bag Making Sewing Machine
Features: Two independent rows double chain stitch and guides for polypropylene filler cord from the top and/or from below for sealing the needle punctures of the left needle; Upper and lower feed with pneumatic operated presser foot and upper feed dog lifter, pneumatic hot thread chain cutter left of the needle; Capacity up to 18mm, special for heavy duty seaming on big bag; Needle gauge 7.2mm.
Two needle independent row, double locked stitch machine for even matched seaming of Big Bag or container bags and simultaneously attaching belt band. Its design and pedestal installation makes it especially suitable for attaching filling and discharging tubes and inserting top covers. Guides for filler cord from the top or from below for sealing the needle punctures of the left needle.
This Big Bag and Container bag making sewing machine is interchangeable with Union Special 80700 series SINGLE NEEDLE AND TWO NEEDLE INDEPENDENT ROWS DOUBLE LOCKED STITCH MACHINES with Lower and Upper Feed.
Specifications:
Model Number: | FX-80700 |
Used for: | Big Bags, FIBC Bags, Bulk Bags |
Stitch Type: |
|
Needle Distance: | 7.2mm (18ga) |
Sewing Thickness: | 18mm Maximum |
Standard Needle: | 9848G300/120 |
Stitch Length: | 6-12mm |
Standard Stitch Length: | 10mm |
Diameter of Pulley: | 150mm |
Sewing Speed: | 1400r.p.m |
Cutter: | Heating Cutter |
Motor: | 750W Servo Motor |
Weight: | 135KGS |
Volume: | 0.8CBM |
FOXSEW Two Needle Four Thread Container Bags Making Sewing Machine
