Specifications
Brand Name :
FOXSEW
Model Number :
FX-733-762
Place of Origin :
China
MOQ :
1 pc
Price :
0 USD
Payment Terms :
T/T
Supply Ability :
100000pcs
Delivery Time :
7days
Packaging Details :
CARTONS
Description
  • Applications for Tents, Sails, Tarpaulins, Parachutes, Hot Air Balloons, Outdoor Awnings, Thick Canvas and Leather, Rigging, Logging Belts, Cargo Slings, Climbing ropes, Safety Belts, Webbing Straps, Safety Harness, Lanyard Ropes, Buffing wheels, Military Webbing, Mattress, Extra Heavy Webbing, Straps, Book Binding etc...

  • Super Heavy Duty Stitching, Long Arm Length 762mm, Extra Large Oscillating Shuttle Hook and Bobbin, Extra Heavy Duty Feeding Action, Ultra High Lifting Foot Up to 38mm

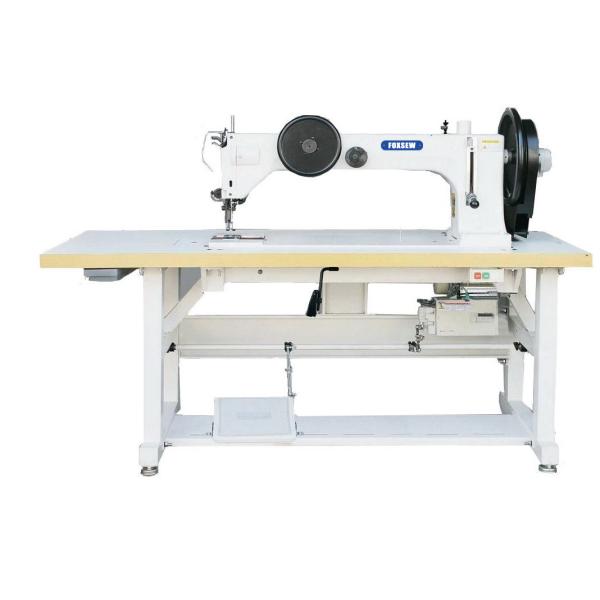

Product Details: Long Arm Extra Heavy Duty Drop Feed Walking Foot Lockstitch Sewing Machine

FOXSEW Long Arm Extremely Heavy Duty Top and Bottom Feed Alternating Presser Foot Lockstich Sewing Machine Machine

Long Arm Extra Heavy Duty Lockstitch Sewing Machine with Large Oscillating Shuttle Hook Drop Feed and Alternating Presser Foot

FOXSEW Long Arm Super Heavy Duty Top and Bottom Feed and Walking Foot Sewing Machine with Super Large Oscillating Shuttle Hook and High Arm

Long Arm Super Heavy Duty Extra Long Stitch Length Sewing Machine

Long Arm Extra Heavy Duty Sewing Machine for Safety Harness and Lifting Slings

This machine provides the best sewing stitches for the extremely thick materials and the reinforced sewing process. This machine adopts the cams threads pick-up, the extra large oscillating barrel shuttle hook hook line, the computer programmable control, to the extremely thick materials, the coarse thread and the complex figure Sewing high quality stitches patterns.

FOXSEW Long Arm Super Heavy Duty Sewing Machine for Extremely Thick and Hard Materials

Application: Parachute Harness, Hot Air Balloons, Tarpaulins, Rigging Products, Outdoor Awnings, Sleeping Bags, Mattress, Bedding, Webbing Cargo Nets (Cargo Netting and Safety Nets), Safety Belts, Upholstered Furniture, Luggage and Suitcases, Leather Goods, Bulletproof Vest, Sofas, Cargo Lashing Straps, Ratchet Tie Down, Safety Harness, Military Equipment, Webbing Slings, Safety and Logging Belts, Climbing Ropes, Marine Ropes and Rescue Ropes, Polyester Lifting Slings, Shoes Soles, Backpacks, Buffing Wheels and Polishing Wheels, Crane Slings, Lanyards, Fall Protection and Fall Arrest Systems, Life Vest, Industrial Safety Products, Saddles, Tents and Canopies, Sails, Parachutes, Big Bag and Container Bag, FIBC Bags, etc...

Features: Maximum Presser Foot Lift up to 38mm, Extra large Barrel shuttle hook and bobbin capacity offer high efficiency; Can sew 2-5 ply synthetic webbing slings (3.5mm of each) together without any difficulty; This extra heavy duty sewing machine is capable of sewing various materials such as Nylon, Polyester, Webbing, Polypropylene, Kevlar, Vinyl, Leather and Canvas; Hardware including Ratchet, shackles, thimbles, choker triangles and others can be sewn into the slings for varying applications.

Specifications:

Model Number: FX-733-762
Used for: Extremely Heavy Duty Materials
Operating Area: 762mmx250mm
Sewing Speed: 700r.p.m
Stitch Length: 1-15mm
Needle Bar Stroke: 75mm
Presser Foot Lift: By Hand: 25mm, By Knee: 38mm
Needle Type: Schmetz SMX1000 28#
Shuttle Hook: Extra Large Oscillating Shuttle Hook
Weight: 225KGS
Volume: 0.55CBM
Amount of Walking Foot Movement: 5-7mm (standard: 6mm)

FOXSEW Long Arm Super Heavy Duty Top and Bottom Feed Walking Foot Lockstitch Sewing Machine

Long Arm Extremely Heavy Duty Drop Feed Walking Foot Lockstitch Sewing Machine
