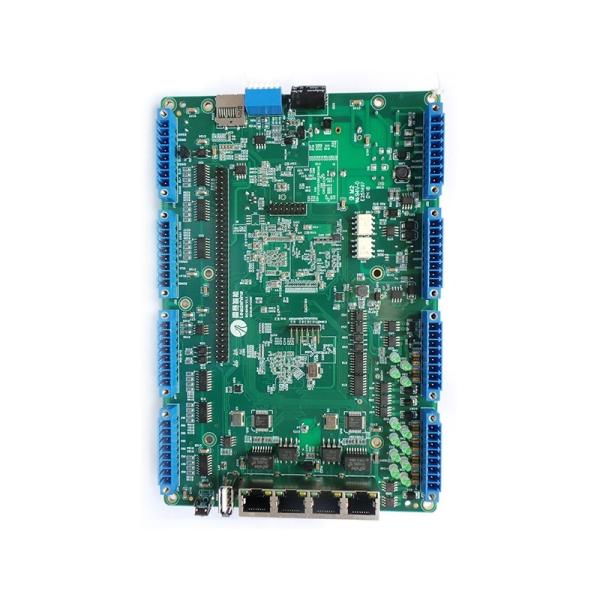

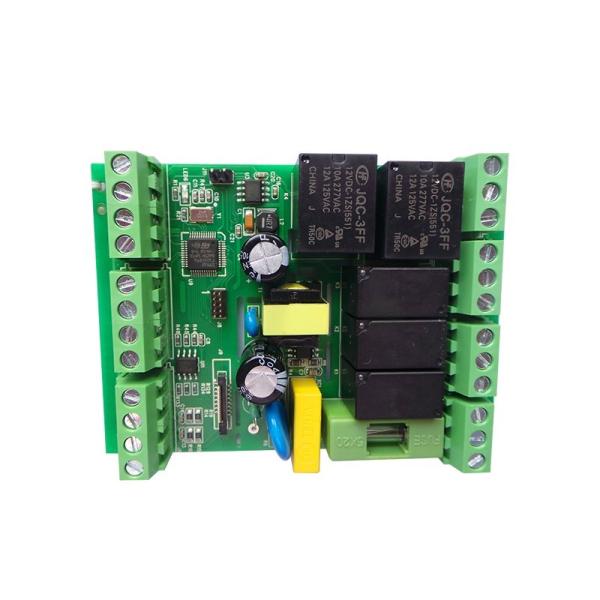

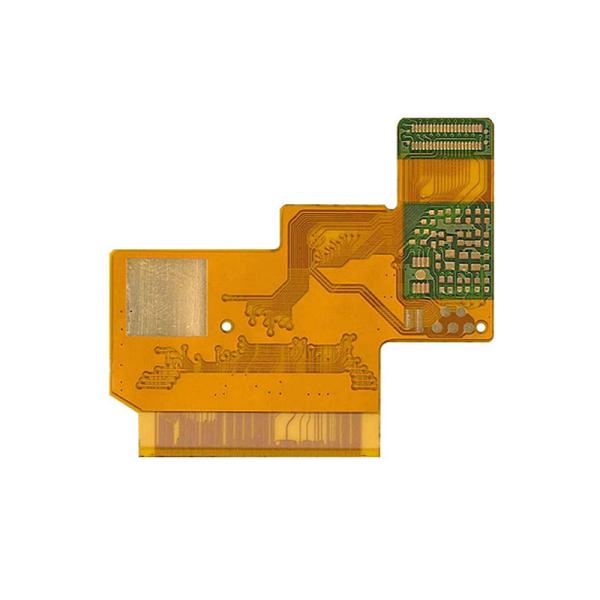

Small Volume Through Hole Soldering Double Sided Industrial PCBA
Small Volume Through Hole Soldering Double Sided Industrial PCBA
Small Volume Through Hole Soldering Double Sided Industrial PCBA
Small Volume Through Hole Soldering Double Sided Industrial PCBA
Small Volume Through Hole Soldering Double Sided Industrial PCBA
Small Volume Through Hole Soldering Double Sided Industrial PCBA
Specifications
Brand Name :
FASTPCBA
Model Number :
One-Stop PCBA Manufacturers
Certification :
IATF16949, ISO13485, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150000 Pieces per Month
Delivery Time :
5
Packaging Details :
PCB: Vacuum Packing/ PCBA: ESD Packing
Number of layers :
1-48
Material :
FR4, High TG FR4, High Frequency, Alum, FPC
Min space :
0.075mm
Sub-assembly :
Plastic,metal,screen
PCB outline :
Square,circle,irregular(with jigs)
Max size of finish board :
700*460mm
Description

Ustom Made Pcba Manufacturing And Assembly Soldering Double Sided Pcb Industrial Circuit Board

Process capability:

Article Description Capability
Sercive PCB and SMT assembly with one-stop service
Material Laminate materials FR4, high TG FR4, high frequency, alum, FPC
Board cutting Number of layers 1-48

Min.thickness for inner layers

(Cu thickness are excluded)

 0.003”(0.07mm)
Board thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)

Solder mask

 Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
E-test Function Test 100% Functional test
PCBA Testing X-ray,AOI Test,Functional test
Pcb assembly one-stop service electronic manufacxturer service
Component sourcing Yes
Certificate IATF16949, ISO13485, ISO9001
Delivery time: PCB 3-8days
PCBA 10-20days
Tolerance of pcb ±5%
Max size of finish board 700*460mm
MOQ NO MOQ (1pcs)
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB outline Square,circle,irregular(with jigs)
package QFN,BGA,SSOP,PLCC,LGA
Sub-assembly Plastic,metal,screen

OEM PCB and PCBA Manufacturer

1. 4 hours for pcba prototype, no MOQ (MOQ can be 1pcs,30 models PCB prototype per day, 3 million points per day.


2. Mature ISO9001 quality management system,IATF16949:2016 international automotive quality system standard and ISO13485:2016 medical device quality management system.


3. High-precision production machine, 5000 square meters dust-free anti-static workshop, strict workshop temperature and humidity monitoring.


4. 20 years of pcb & pcba manufacturing production and export experience, Famous brand manufacturers in China.


5. ERP order management system, one-click extraction of historical data , component inventory management is more convenient.


6. Free 24 hour online service among worldwide, problems feedback are no longer delayed.


7. Professional engineering team with an average of 15 years of industry experience.


8. NDA. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.

Small Volume Through Hole Soldering Double Sided Industrial PCBA

FASTPCBA focus on muti-varieties and small batch fast pcb proofing over 20 years, with no MOQ, no need to open stencil, fastest pcb delivery in 4hs.

Small Volume Through Hole Soldering Double Sided Industrial PCBA


FASTPCBA insist on taking high quality pcb assembly route, we can flexiblely service for small batch pcb prototype, middle batch pcb manufacturing, mass pcb assembly for customers of industrial control, medical, automotive, military, smart home, power communication and aerospace with ISO9001, ISO13485, ISO14000 and IATF16949 certificates.

Small Volume Through Hole Soldering Double Sided Industrial PCBA


With professional engineer team, ERP online control, complete quality management, advanced pcb printing & assembly devices, we are confident to provide best quality and precise pcb assembly solutions.

Small Volume Through Hole Soldering Double Sided Industrial PCBA
