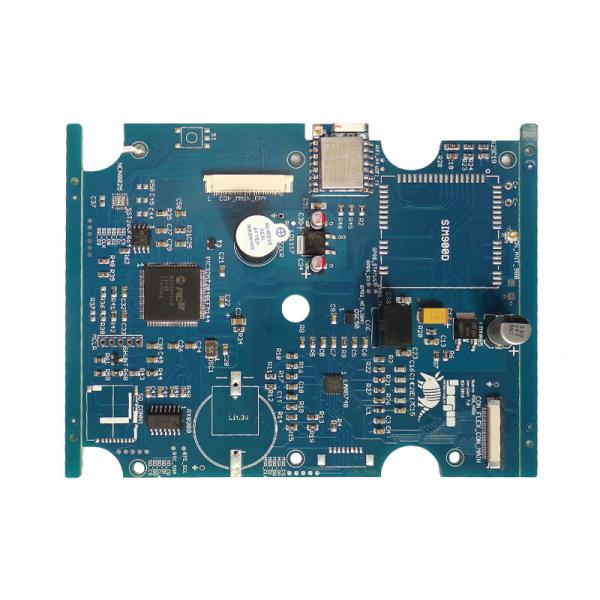

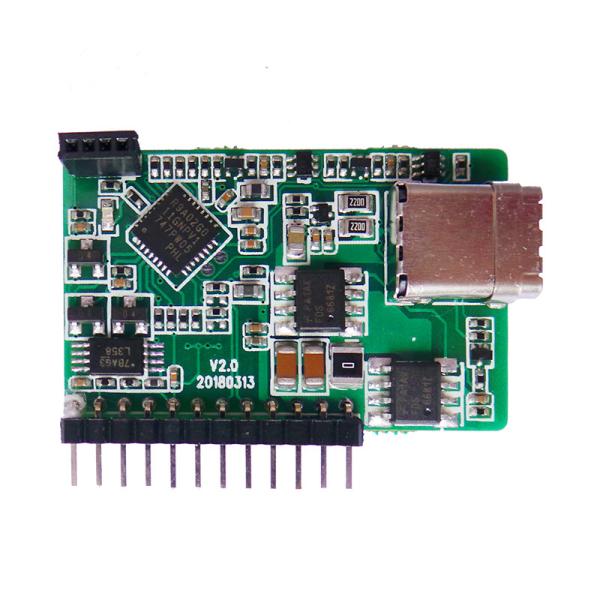

1-48 Layers ENIG 4OZ 0.075mm FR4 PCB Board Assembly
1-48 Layers ENIG 4OZ 0.075mm FR4 PCB Board Assembly
1-48 Layers ENIG 4OZ 0.075mm FR4 PCB Board Assembly
1-48 Layers ENIG 4OZ 0.075mm FR4 PCB Board Assembly
Specifications
Brand Name :
FASTPCBA
Model Number :
One-Stop PCB Assembly
Certification :
IATF16949, ISO13485, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150000 Pieces per Month
Delivery Time :
5
Packaging Details :
PCB: Vacuum Packing/ PCBA: ESD Packing
Number of layers :
1-48
Material :
FR4, High TG FR4, High Frequency, Alum, FPC
Min space :
0.075mm
Min line :
0.075mm
Function Test :
100% Functional test
PCBA Testing :
X-ray,AOI Test,Functional test
Description

China PCB And PCBA Manufacturer 1-48 Layers PCB Board Manufacturer and Assembly

PCB Capability

Article Description Capability
Material Laminate materials FR4, High TG FR4, High Frequency, Alum, FPC...
Board Cutting Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)		 0.003”(0.07mm)
Board Thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper Weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder Mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
Max Size of Finish Board 700*460mm
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA

Delivery Time for PCBA

Order Conditions Standard Delivery Date The fastest Delivery Date
Prototype (<20 pcs) 2 days 8 hours
Small Volum (20-100 pcs) 3 days 12 hours
Medium Volum(100-1000 pcs) 6 days 24 hours
Mass productions (>1000 pcs) Depends on BOM Depends on BOM

FASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO9001, ISO13485, IATF16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.

Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.

1-48 Layers ENIG 4OZ 0.075mm FR4 PCB Board Assembly

1-48 Layers ENIG 4OZ 0.075mm FR4 PCB Board Assembly

With 20 years pcb fabrication and pcb assembly experienced, FASTPCBA has occupied a place in medical pcb assembly,automotive circuit board, smart home pcb fabrication, communication pcba, industry pcb production, military & aerospace pcba etc.

1-48 Layers ENIG 4OZ 0.075mm FR4 PCB Board Assembly
