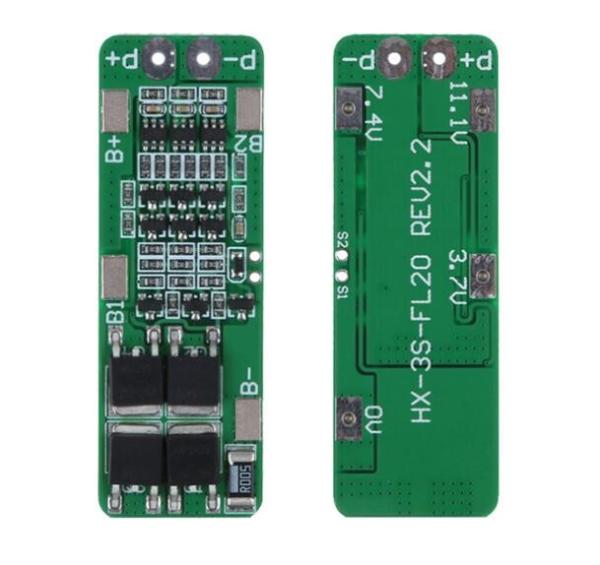

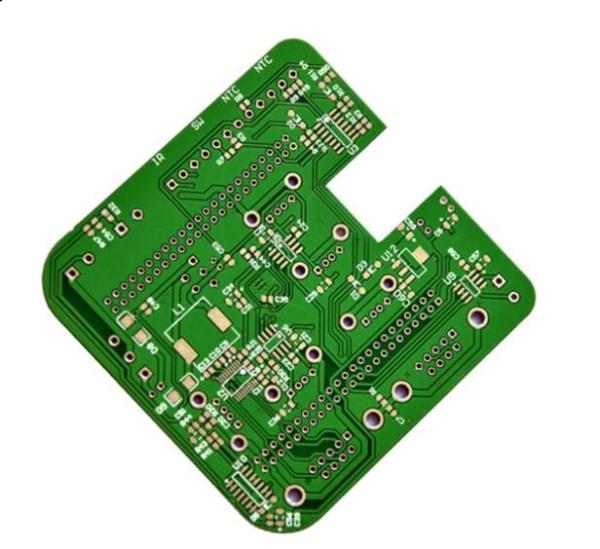

Ultra Thin Electronic PCB Assembly 0.2mm Thickness Board TS16949 Certified
Ultra Thin Electronic PCB Assembly 0.2mm Thickness Board TS16949 Certified
Ultra Thin Electronic PCB Assembly 0.2mm Thickness Board TS16949 Certified
Ultra Thin Electronic PCB Assembly 0.2mm Thickness Board TS16949 Certified
Ultra Thin Electronic PCB Assembly 0.2mm Thickness Board TS16949 Certified
Ultra Thin Electronic PCB Assembly 0.2mm Thickness Board TS16949 Certified
Ultra Thin Electronic PCB Assembly 0.2mm Thickness Board TS16949 Certified
Ultra Thin Electronic PCB Assembly 0.2mm Thickness Board TS16949 Certified
Specifications
Brand Name :
Linked Electronics
Model Number :
LPCB1400
Certification :
UL, TS16949, ISO14001, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
by negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10, 000pcs per month
Delivery Time :
4 weeks
Packaging Details :
vacumm package+carton box
Product Name :
0.2mm Thickness PCB Assembly Board
Material :
FR4 TG130
Brand :
Linked Electronics
PCB Material :
FR4, CM-1 CM-3 FR-4 FR-1 AL-PCB
Layer :
0.2mm Multilayer PCB
Applications :
Industrial/Consumer electronical
Min Traces W/S :
5mil/5mil
Min Hole :
0.3mm
Description

Ultra Thin Electronic PCB Assembly 0.2mm Thickness TS16949 Certified PCB Board

If you are looking for ultra thin PCB board, very long PCB Board, Aluminum PCB, Copper Core PCB, Rogers PCB, Rogers and FR4 Mix PCB and High Freqency PCB Board, contact Linked Electronics for RFQs.

Linked Electronics is a one stop PCB solution service provider, which includes PCB layout, PCB manufacturing/fab service and PCB SMT service. Because of our good quality, on time delivery and quick lead time, we have won great reputation among our customers.

We focus on small volme, high mix and quick turn PCB. And there is no MOQ at Linked Electronics, you can order even one piece. We are happy to provide you service.

Product Name

0.2mm Ultra Thin Electronic PCBA Board

PCB Spec

 0.2mm, 1oz, green soldermask, white legend, HASL Lead Free

Lead Time

 30 days

Manfuacturing Standard

 IPC Class 2, IPC Class 3 standard

Test Method

 AOI, Function Test, Flying Probe and Fixture

Ultra Thin Electronic PCB Assembly 0.2mm Thickness Board TS16949 Certified

OEM/ODM/EMS Services for PCBA:

  • PCBA, PCB Board assembly: SMT & PTH & BGA
  • PCBA and enclosure design
  • Components sourcing and purchasing
  • Quick prototyping
  • Plastic injection molding
  • Metal sheet stamping
  • Final assembly
  • Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
  • Custom clearance for material importing and product exporting

To ensure an accurate quote, be sure to include the following information for your project:

•Complete GERBER files including the BOM list
•Other file types (Altium,Protel,OrCAD)
•"Read Me" notes for additional fabrication information
•Quantities
•Lead time( if you need quick turn service)
•Panelization Requirements
•Materials Requirements
•Surface Finish requirements
Your custom quote will be delivered in just 2-48 working hours, depending on the design complexity.

Applications

Our PCBs have a wide applications, such as industrial control, medical industry, automobile and so on.

Ultra Thin Electronic PCB Assembly 0.2mm Thickness Board TS16949 Certified

Q.What file you need to prepare for RFQs?

For PCB board, you need to prepare files of Gerber file,it should including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.

For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample pictureor 3D PDF version file etc.

Q. Do you have any MOQ?

We havent any limited about MOQ .Sample and mass production all accepted
Q. How to keep our product information and design file secret ?

We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.

Q.How long does it take for PCB and PCBA Quote ?

PCBs quotation within 2 hours can finished the PCBA depend on the components
quantity,if simple, within 6 hours can finished,once complex and more,the 12- 36 hours
can be finished.
*Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:

Surface finish:

Solder mask color:

Silkscreen color:

Q. How about the lead time?
Normally, for sample order, our lead time is about 5 days.For small batch, that is about 7 days.
For mass production batch, lead time is about 10 days.
But it will depend on the design of your PCB.


If your order is urgently please contact us directly ,we will priority to deal it and do our best to give you satisfied delivery time.


Q.How can we guarantee you receive an good quality product?

For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
Q.With payment terms do we accept?
For sample order or small batch, Pay-pal and Western Union are the best choice.For mass production batch, we suggest TT. We have local bank account in Europe and in US, which will save you a lot of banking fees.
