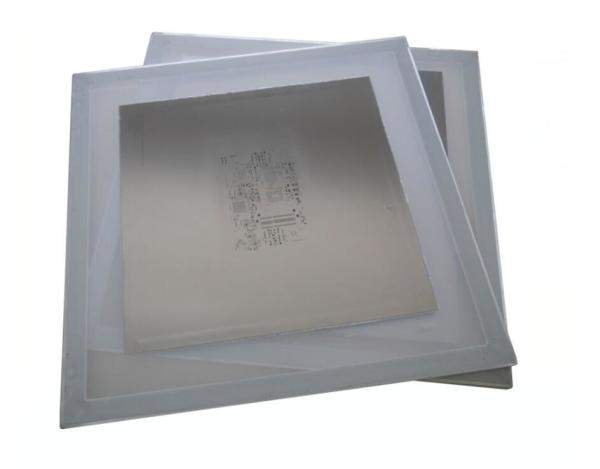

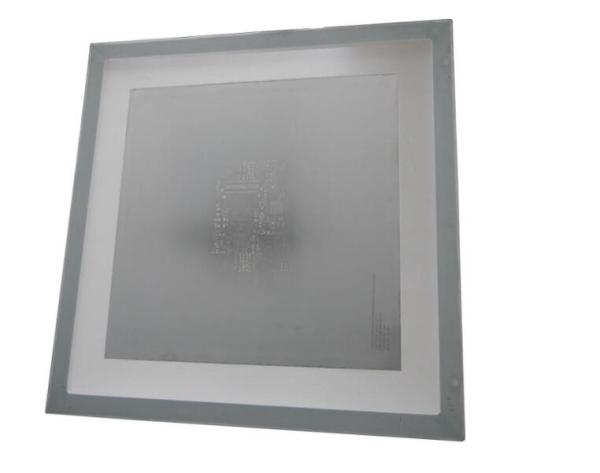

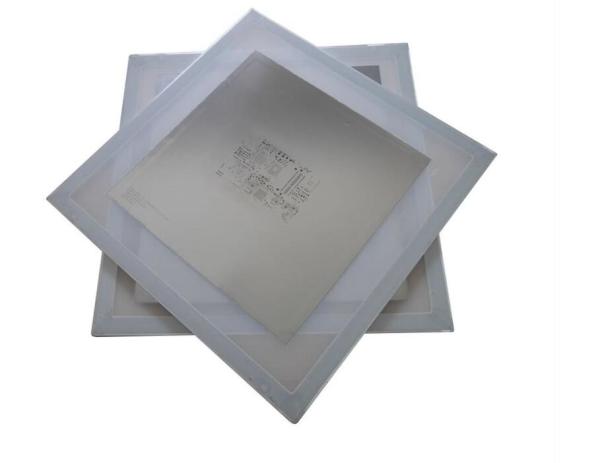

Professional SMT Solder Paste Stencils 584*584mm 100% Laser Cut
Professional SMT Solder Paste Stencils 584*584mm 100% Laser Cut
Professional SMT Solder Paste Stencils 584*584mm 100% Laser Cut
Professional SMT Solder Paste Stencils 584*584mm 100% Laser Cut
Professional SMT Solder Paste Stencils 584*584mm 100% Laser Cut
Professional SMT Solder Paste Stencils 584*584mm 100% Laser Cut
Specifications
Brand Name :
Linked Electronics
Model Number :
LPCB1146
Certification :
UL, TS16949, ISO14001, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
by negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100pcs day
Delivery Time :
1 working days
Packaging Details :
carton box
Product Name :
Laser SMT Stencil
Size :
584mm*584mm
Thickness :
0.1mm
Lead Time :
4 Working Hours After PDF is confirmed
Application :
PCB SMT
Shipping Time :
2 Days
Description

Professional SMT Stencil Laser Customized Stencil for PCB Solder PCBA

Linked has been supplying highly qualitative, economical and reliable printed circuit boards (PCBs) to the electronics industry in China and globally since 1998. We also offer contract assembly and parts sourcing as a part of our turnkey solution to customers.

Industries / Markets Served

Professional SMT Solder Paste Stencils 584*584mm 100% Laser CutMedical and Bio-medical: When strict quality standards are required, various niche medical device companies and medical equipment OEM manufacturers depend on us for their medical PCB and PCBA manufacturing.

Professional SMT Solder Paste Stencils 584*584mm 100% Laser CutIndustrial, Automotive, and Commercial: With over 2 decades of PCB expertise, we have a huge array of customers that are leaders in their commercial and industrial niches. With our high-technology PCB capabilities, we have created long-lasting partnerships throughout various industrial and commercial niches.

Professional SMT Solder Paste Stencils 584*584mm 100% Laser CutStudents and Hobbyist: With our straightforward and no hidden cost PCB pricing, we have earned the trust of multiple educational institutions from around the world. When students need affordable printed circuit boards for their various university projects, they rely on Linked Electronics.


Stencil Spec Available From us

Stencil Size(unit mm) Actual Area( unit mm) Weight(KG)
370×470 190×290 1.5KG
300×400 140×240 1KG
420×520 240×340 2KG
450×550 270×370 2KG
584×584 380×380 3.5KG
550×650 350×450 3.5KG
736×736 500×500 5.5KG
400×600 220×400 2.5KG
400×800 220×600 3.5KG
400×1000 220×760 4KG
400×1200 220×1000 6KG
400×1400 220×1200 7KG
500×700 320×500 3.5KG
500×800 320×600 3.5KG
500×1200 320×1000 7KG
500×1400 320×1200 7.5KG
500×1500 320×1300 8KG
280*380 Framelss Stencil As per your request 1KG

Stencil Detail

Technology 100% Laser Cut
Material used 304 HTA Stainless Steel
Stencil thickness 0.1-0.18mm
Minimum cut width 0.002 inches
Maximum size 500×1500
Aperture tolerance within .00025 inches
Allow for Fiducial Data Yes
Allow for panelized data Yes

Professional SMT Solder Paste Stencils 584*584mm 100% Laser Cut
