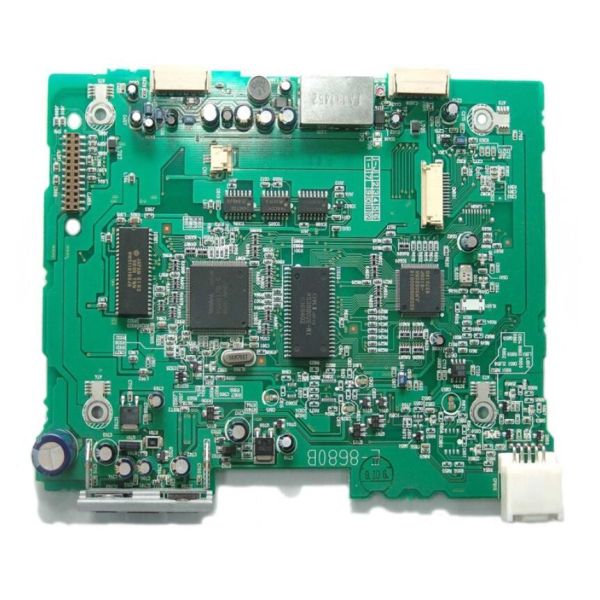

One Stop PCB Assembly Service / OEM Electronic PCBA Circuit Board Rohs Compliant
One Stop PCB Assembly Service / OEM Electronic PCBA Circuit Board Rohs Compliant
One Stop PCB Assembly Service / OEM Electronic PCBA Circuit Board Rohs Compliant
One Stop PCB Assembly Service / OEM Electronic PCBA Circuit Board Rohs Compliant
One Stop PCB Assembly Service / OEM Electronic PCBA Circuit Board Rohs Compliant
One Stop PCB Assembly Service / OEM Electronic PCBA Circuit Board Rohs Compliant
Specifications
Brand Name :
Linked Electronics
Model Number :
LPCB1055
Certification :
UL, TS16949, ISO14001, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
by negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10, 000sqm per month
Delivery Time :
5 working days
Packaging Details :
vacumm package+carton box
Product Name :
PCB Assembly Service
Packing :
ESD package for PCBA
Port :
Hongkong or Shenzhen
Testing Service :
100% AOI
Application :
Electronics,military,medicine, and so on
Description

PCB Assembly Service /OEM Electronic PCBA Circuit Board Assembly by Linked Electronics

Linked Electronics is a PCB manufacturer with full in house manufacturing capabilities in China, which specialized in high-mix, prototype, low volume and quick turn PCB and PCBA service.

Our service include: SMT Assembly, BGA Assembly, Through-Hole Assembly, Mixed Assembly, Rigid Flex PCB Assembly Services. Compliant with a wide range of standards including IPC 610 Class 2 and Class 3.


Assembly Capability

ItemLot Size
NormalSpecialRemark
PCB(used for SMT)spec(L*W)MinL≥50mmL＜50mmIncludes the Process Edge
W≥50mm
MaxL≤460mmL ＞ 460mm
W≤400mmW＞ 400mm
(Thickness)Min thickness0.5mmT＜0.5mm
Max thickness4.5mmT＞4.5mm
SMT components spec.dimensionMin size2011005/
(0.6mm*0.3mm)(0.3mm*0.2mm)
Max size200mm*125mm200mm*125mm＜SMD/
component thicknessT≤6.5mm6.5mm＜T≤15mm/
QFP,SOP,SOJ(multipins)Min pin space0.4mm0.3mm≤Pitch＜0.4mm/
CSP,BGAMin ball space0.5mm0.3mm≤Pitch＜0.5mm/
ItemPrototype Manufacturer
NormalSpecialRemark
SMT PCB SPEC(L*W)Min sizeL≥50mmL＜50mmIncludes the Process Edge
W≥30mm
Max sizeL≤450mmL:800-450mm
W≤350mmW:400-350mm
(Thickness)Minimum thickness0.8mmT＜0.8mm
Maximum Thickness2mmT＞2mm
DIP PCB SPEC(L*W)Min SizeL≥50mmL＜50mm
W≥30mm
Max SizeL≤500mmL≥500mm
W≤300mmW≥300mm
(Thickness)Minimum Thickness0.8mmT＜0.8mm
Maximum Thickness2mmT＞2mm

Product Show
One Stop PCB Assembly Service / OEM Electronic PCBA Circuit Board Rohs Compliant
PCBA Process Flow
One Stop PCB Assembly Service / OEM Electronic PCBA Circuit Board Rohs Compliant
