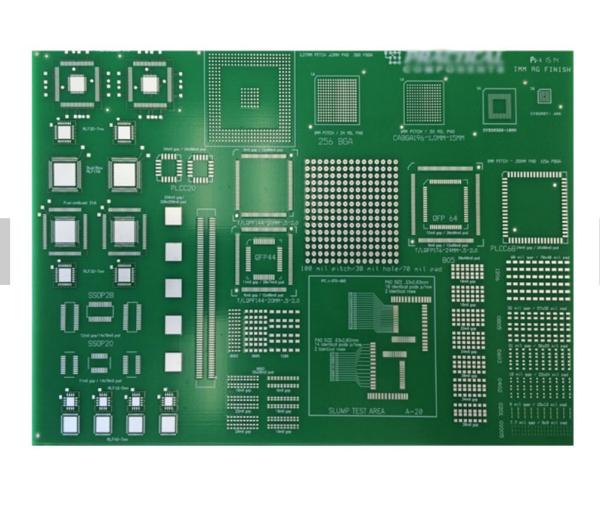

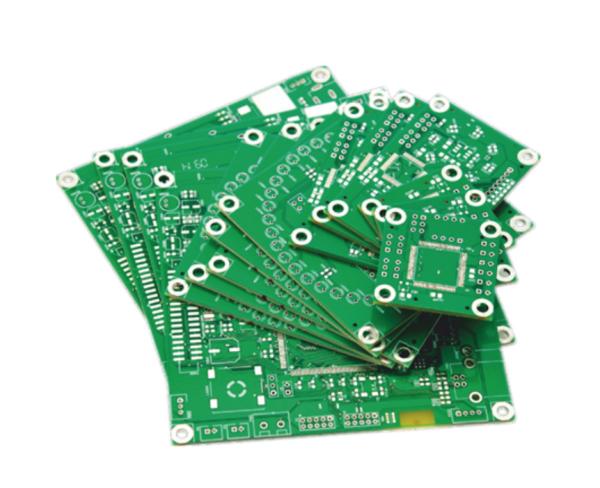

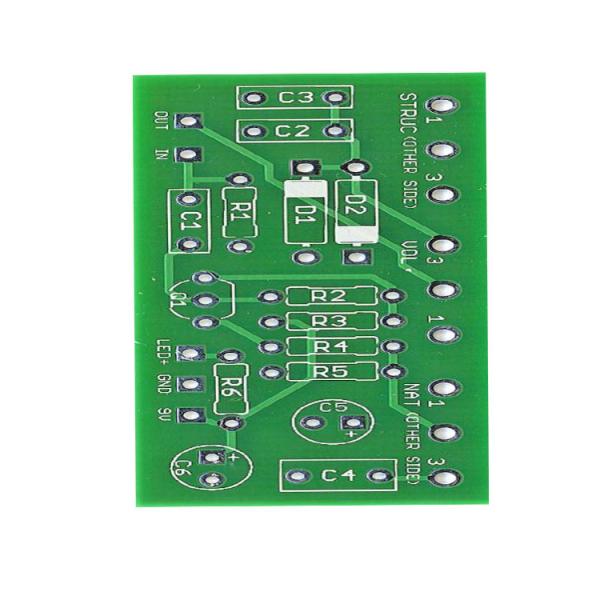

Quick Turn Multilayer PCB Board 5G Green Soldermask White Legend HAL Rohs
Quick Turn Multilayer PCB Board 5G Green Soldermask White Legend HAL Rohs
Quick Turn Multilayer PCB Board 5G Green Soldermask White Legend HAL Rohs
Quick Turn Multilayer PCB Board 5G Green Soldermask White Legend HAL Rohs
Quick Turn Multilayer PCB Board 5G Green Soldermask White Legend HAL Rohs
Quick Turn Multilayer PCB Board 5G Green Soldermask White Legend HAL Rohs
Specifications
Brand Name :
Linked
Model Number :
LPCB1186
Certification :
UL, TS16949, ISO14001
Place of Origin :
China
MOQ :
1pcs
Price :
by negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10, 000sqm per month
Delivery Time :
5 working days
Packaging Details :
vacumm package+carton box
Layers :
4 Layer
Min. line width / spacing :
5/9mil
Board thickness :
2.0mm
Base material :
FR-4
Lead time :
11 Working Days
Packing :
Vacuum Packing with Carton Box
Shipping Method :
DHL, UPS, TNT or as per your request
Description

Quick Turn Multilayer PCB Board 5G Green Soldermask White Legend HAL Rohs

About Us

We started Linked Electronics because we were tired of the poor customer service and board quality from other PCB companies. We knew that we could do better. We always do our best to exceed our customer's expectations by providing exceptional personal customer service and competitively priced high-quality PCBs that are delivered on time.

We love engineers.

We do everything in our power to help engineers to make AWESOME THINGS. We understand the importance of delivering on our promises and that is why, each day, smart engineers from around the world rely on us to manufacture their mission-critical printed circuit boards.

Our Capability

Item Capability Remark
Layer count 2~30 layer 　
Lamination FR-4,Aluminum Based,Copper based,High frequency plate,Heavy copper,BT,Rogers,PTFE ect 　
Thickness (THK) 0.2mm≤THK≤6.0mm 　
Smallest hole (mm) 0.15mm 　
Aspect Ratio 13:1 　
Max dimension Single or 2-layer 600 x 1000 mm 　
Multi-lyr ≤6L 600 x 900 mm 　
≥8L 500 x 600 mm 　
Gold THK Hard Gold (u") 50u" 　
Immersion Gold (u") 4u" 　
Copper THK Outer (oz) 6oz 　
Inner (oz) 6oz 　
Smallest trace width / space (mil) 3/3 mil 　
Annual ring Via hole 3mil 　
Component hole 6mil 　
Copper to edge spacing 0.25mm 　
Min trace width / space (mil) Base Copper (oz) Min trace width / space (mil) 　
0.5 3/3
1 4/4
2 5/5
3 7/7
5 9/9

Features

1. Fast quotes.

2. Quick turn delivery. Same day turn available on two layer PCB, 48hour turn on multilayer PCB.

3. Copper weight 1 oz to 6 oz

4. Available finishes include HASL, Lead free HASL, Nickel/Gold, soft bondable gold, ENIG, ENEPIG, immersion Tin, immersion Silver, Carbon Ink,and more

5. In inventory materials include FR4, Rogers Alumium, Polymide.

6. Prototype to full production PCB.

Process Flow for PCB

Quick Turn Multilayer PCB Board 5G Green Soldermask White Legend HAL Rohs
