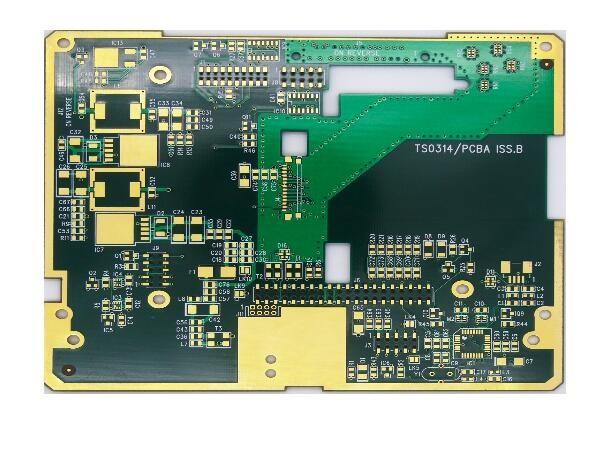

ENIG 4 Layer Multilayer PCB Board 760mm*600mm OEM And ODM Available
ENIG 4 Layer Multilayer PCB Board 760mm*600mm OEM And ODM Available
ENIG 4 Layer Multilayer PCB Board 760mm*600mm OEM And ODM Available
ENIG 4 Layer Multilayer PCB Board 760mm*600mm OEM And ODM Available
ENIG 4 Layer Multilayer PCB Board 760mm*600mm OEM And ODM Available
ENIG 4 Layer Multilayer PCB Board 760mm*600mm OEM And ODM Available
Specifications
Brand Name :
Linked
Model Number :
LPCB1022
Certification :
UL, TS16949, ISO14001
Place of Origin :
China
MOQ :
1pcs
Price :
by negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10, 000sqm per month
Delivery Time :
5 working days
Packaging Details :
vacumm package+carton box
Layer Count :
4 layer
Base material :
FR-4 TG150
Max board size :
760mm*600mm
Hole tolerance :
PTH:±0.075mm,NTPH:±0.05mm
PCB manufacturing Standard :
IPC-A-610 E Class II or IPC-A-610 E Class III
Panel Size :
220mm*309mm
Description

ENIG Multilayer PCB Board FR4 circuit boards OEM and ODM Circuit Board

Introduction to Linked Electronics

Linked Electronics is a China based PCB manufacturer with full in house manufacturing capabilities. We have been in business since 1998 specializing in quick turn, high quality custom PCB fabrication. For more than two decades Linked has been a leading PCB manufacturer in China specializing in Quick-turn PCBs.

Capability

Item Capability Remark
Layer count 2~30 layer 　
Lamination FR-4,Aluminum Based,Copper based,High frequency plate,Heavy copper,BT,Rogers,PTFE ect 　
Thickness (THK) 0.2mm≤THK≤6.0mm 　
Smallest hole (mm) 0.15mm 　
Aspect Ratio 13:1 　
Max dimension Single or 2-layer 600 x 1000 mm 　
Multi-lyr ≤6L 600 x 900 mm 　
≥8L 500 x 600 mm 　
Gold THK Hard Gold (u") 50u" 　
Immersion Gold (u") 4u" 　
Copper THK Outer (oz) 6oz 　
Inner (oz) 6oz 　
Smallest trace width / space (mil) 3/3 mil 　
Annual ring Via hole 3mil 　
Component hole 6mil 　
Copper to edge spacing 0.25mm 　
Min trace width / space (mil) Base Copper (oz) Min trace width / space (mil) 　
0.5 3/3
1 4/4
2 5/5
3 7/7
5 9/9

Main Inspection Machine

Online AOI

ENIG 4 Layer Multilayer PCB Board 760mm*600mm OEM And ODM Available

Hole Checker

ENIG 4 Layer Multilayer PCB Board 760mm*600mm OEM And ODM Available

Warping board inspection machine

ENIG 4 Layer Multilayer PCB Board 760mm*600mm OEM And ODM Available

Our Advantage

1. High Capability and good management

Linked Electronics can meet all your PCB and PCBA manufacturing needs from single-sided to complex multi-layered PCB’s and everything in between. Our stringent quality standards are imposed by our trained staff with traceability of PCB’s throughout the production process. Our Management Team has over 15+ years experience which ensures we get the job done right.

2.Fast Lead time

Linked Electronics have a consistent on–time shipping record and we are now shipping many of our orders early!

3. Quick Turn-around Service

Prototype of 2 Layer can be finished within the working day, and 4 layer in 48 hours at Linked Electronics.

4. Good Service

At Linked we are committed to giving you personal Customer EXCELLENCE not just Customer Service! When you call, we answer. When you email, we respond.

5. Free Sample

For first time customers can receive first prototype for free by some restrictions applies. You will not be anxious about the potential risk because of initial cooperation.

6. No MOV


Linked Electronics don’t have any minimum lot requirements, so you never have to buy more than what you need.
