Gold Finger Multilayer PCB Board Purple Color 1~34 Layers 0.2mm~3.2mm Thickness
Gold Finger Multilayer PCB Board Purple Color 1~34 Layers 0.2mm~3.2mm Thickness
Gold Finger Multilayer PCB Board Purple Color 1~34 Layers 0.2mm~3.2mm Thickness
Gold Finger Multilayer PCB Board Purple Color 1~34 Layers 0.2mm~3.2mm Thickness
Gold Finger Multilayer PCB Board Purple Color 1~34 Layers 0.2mm~3.2mm Thickness
Gold Finger Multilayer PCB Board Purple Color 1~34 Layers 0.2mm~3.2mm Thickness
Specifications
Brand Name :
Linked
Model Number :
LPCB1017
Certification :
UL, TS16949, ISO14001
Place of Origin :
China
MOQ :
1pcs
Price :
by negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10, 000sqm per month
Delivery Time :
5 working days
Packaging Details :
vacumm package+carton box
Layers :
1~34 layers
Min. line width / spacing :
4/4mil
Board thickness :
0.2mm~3.2mm
Base material :
FR-4 TG 170
Lead time :
5 working days
Packing :
Vacuum Packing with Carton Box
Testing Method :
AOI,X-RAY,Fixutre,Flying probe test
Description

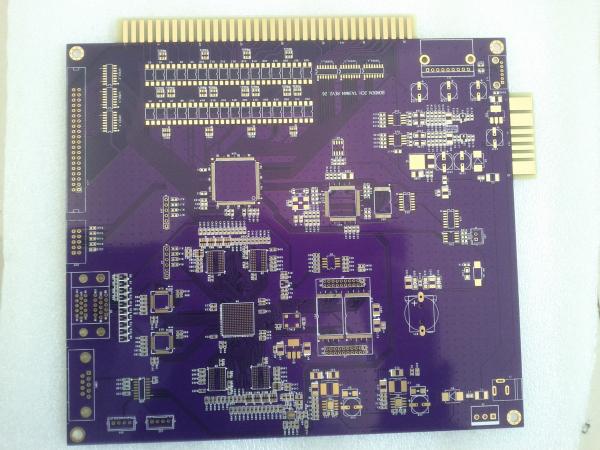

High quality Multilayer PCB Board Gold Finger Circuit Board Purple Color

Linked Electronics is a China based PCB and PCBA manufacturer which specialized in high-mix, prototype, low volume and quick turn service.

One Stop PCB Service

1. PCB manufacturing

2. Components Souring

3. PCB Assembly Service

Our Capability

Item Capability Remark
Layer count 2~30 layer 　
Lamination FR-4,Aluminum Based,Copper based,High frequency plate,Heavy copper,BT,Rogers,PTFE ect 　
Thickness (THK) 0.2mm≤THK≤6.0mm 　
Smallest hole (mm) 0.15mm 　
Aspect Ratio 13:1 　
Max dimension Single or 2-layer 600 x 1000 mm 　
Multi-lyr ≤6L 600 x 900 mm 　
≥8L 500 x 600 mm 　
Gold THK Hard Gold (u") 50u" 　
Immersion Gold (u") 4u" 　
Copper THK Outer (oz) 6oz 　
Inner (oz) 6oz 　
Smallest trace width / space (mil) 3/3 mil 　
Annual ring Via hole 3mil 　
Component hole 6mil 　
Copper to edge spacing 0.25mm 　
Min trace width / space (mil) Base Copper (oz) Min trace width / space (mil) 　
0.5 3/3
1 4/4
2 5/5
3 7/7
5 9/9

PCB Production Process

Gold Finger Multilayer PCB Board Purple Color 1~34 Layers 0.2mm~3.2mm Thickness

PCBA Production Process

Gold Finger Multilayer PCB Board Purple Color 1~34 Layers 0.2mm~3.2mm Thickness
