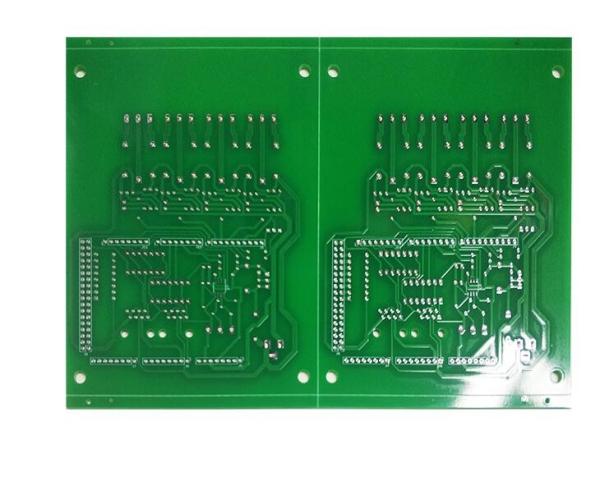

Customized Multilayer PCB Board HAL Rohs Surface Finish 6OZ Copper Thickness
Customized Multilayer PCB Board HAL Rohs Surface Finish 6OZ Copper Thickness
Customized Multilayer PCB Board HAL Rohs Surface Finish 6OZ Copper Thickness
Customized Multilayer PCB Board HAL Rohs Surface Finish 6OZ Copper Thickness
Customized Multilayer PCB Board HAL Rohs Surface Finish 6OZ Copper Thickness
Customized Multilayer PCB Board HAL Rohs Surface Finish 6OZ Copper Thickness
Specifications
Brand Name :
Linked
Model Number :
LPCB1027
Certification :
UL, TS16949, ISO14001, Rohs
Place of Origin :
China
MOQ :
1pcs
Price :
by negotiation
Payment Terms :
Paypal, T/T, Western Union,
Supply Ability :
10, 000sqm per month
Delivery Time :
5 working days
Packaging Details :
vacumm package+carton box
Material :
FR4 Shengyi, KB, ITEQ
Layer Count :
8 layers
Country of Origin :
China
Certificate :
UL/TS16949/ISO9001/ISO14001
Finished Thickness :
2.0mm
Description

Customized Multilayer PCB Board HAL Rohs Surface Finish 6OZ Copper Thickness

Welcome to Linked Electronics, manufacture of prototypes printed circuit boards. Linked has been providing high quality quick turn circuit boards to the electronics industry for over 2 decades.

PCB is not the most expensive parts your business purchases, but they are surely among the most important. The capabilities and performance of the electronics instruments you manufacture is directly dependent on the capabilities and performance of the PCB boards inside, which means the success of your products (and ultimately your business) is linked to the PCBs you order. Linked understands this connection. That's why we strive to produce the very best circuit boards available in today’s PCB market.

PCB Specification

Product Name Electronic Custom PCB Printed Circuit Board PCBA Design
Type Rigid
Material FR4, CEM1, CEM3, High Frequency Board,
Layer 1,2,4,6...32 Layer
Shape Rectangular, Round, Slots, Cutouts, Complex, Irregular
Cutting Shear, V-score, Tab-routed
Board Thickness 0.2-6mm, regular 1.6mm
Copper Thickness 0.5-4oz, regular 1oz
Solder Mask Green, Red, Blue, Yellow, etc.
Silk Screen White, Black, etc.
Silk Screen Min Line Width 0.006" or 0.15mm
Min Trace/Gap 0.1mm or 4mils
Min Drill Hole Diameter 0.01",0.25mm or 10mils
Surface Finish HASL, ENIG, OSP, etc.

Main Industries that Linked Electronics Served

Customized Multilayer PCB Board HAL Rohs Surface Finish 6OZ Copper Thickness

Raw Material Supplier

Main material and supplier
Raw Material Specification
FR4 ShengYi
ITEQ
Isola
Copper foil Mitsui Kinzoku
Taiwan Changchun
Shangdong Jinbao
Prepreg ShengYi
HongRen
Soldermask TaiYo
GuangXin
Bst Checmical
Greencure (Huizhou)
Chemical MaxDermid Chemical
Rohm and Haas
Copper ball Chengan Copper Industry
Tin bar Sheng Nan Technology
