SMT Reflow PCBA Board Wave Soldering PCB Board Assembly Eflow / Wave Soldering
SMT Reflow PCBA Board Wave Soldering PCB Board Assembly Eflow / Wave Soldering
SMT Reflow PCBA Board Wave Soldering PCB Board Assembly Eflow / Wave Soldering
SMT Reflow PCBA Board Wave Soldering PCB Board Assembly Eflow / Wave Soldering
SMT Reflow PCBA Board Wave Soldering PCB Board Assembly Eflow / Wave Soldering
SMT Reflow PCBA Board Wave Soldering PCB Board Assembly Eflow / Wave Soldering
SMT Reflow PCBA Board Wave Soldering PCB Board Assembly Eflow / Wave Soldering
SMT Reflow PCBA Board Wave Soldering PCB Board Assembly Eflow / Wave Soldering
Specifications
Brand Name :
OEM and ODM
Model Number :
SL81106S05
Certification :
UL,RoHS, CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100000pcs per day
Delivery Time :
5-7 days
Packaging Details :
ESD package
Testing :
AOI, E-test
Application :
Controller PCBA
Technology :
Reflow and Wave soldering
Features 1 :
Gerber/PCB file needed
Features 2 :
100% E-test
Features 3 :
Quality 2 years guarantee
Description

SMT Reflow PCBA board Wave soldering pcb board PCB Assembly manufacture


Files Requested For PCB Assembly Quotation
---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, weask that you provide us with the following information:
1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
2. A detailed bill of materials (BOM)
3. Clear pictures of PCB or PCBA sample for us
4. Quantity and delivery required
5. Test method for PCBA to guarantee 100% good quality products.
6. Schematics file for PCB design if need to do function test.
7. A sample if available for better sourcing
8. CAD files for enclosure manufacturing if required
9. A complete wiring and assembly drawing showing any special assembly instructions if required


Shinelink kinds PCBA Products

SMT Reflow PCBA Board Wave Soldering PCB Board Assembly Eflow / Wave Soldering


94V0 PCBA manufacture Scale capabilities up to

We combine advanced processes with highly skilled resources. Keeping up with the leading advanced technology and management system in One-stop services of PCB assembly

SMT process (RoHs Compliant) Capabilities up to:

1. 0201 Chip Size
2. 12 mils Integrated Circuit (IC) Pitch
3. Micro Ball Grid Array (BGA) – Pitch 16 mils
4. Flip Chip (Controlled Collapse Chip Connection) – Pitch 5 mils
5. Quad Flat Package (QFP) – Pitch 12 mils

THT(Wave soldering) process (RoHs Compliant) Capabilities up to:

1.Single side wave soldering
2.SMT & THT mixture process
SMT Reflow PCBA Board Wave Soldering PCB Board Assembly Eflow / Wave Soldering


PCB Assembly Capabilities

Turnkey PCBA

PCB+components sourcing+assembly+package

Assembly details

SMT and Thru-hole, ISO lines

Lead Time

Prototype: 15 work days. Mass order: 20~25 work days

Testing on products

Flying Probe Test, X-ray Inspection, AOI Test, functional test

Quantity

Min quantity: 1pcs. Prototype, small order, mass order, all OK

Files we need

PCB: Gerber files(CAM, PCB, PCBDOC)

Components: Bill of Materials(BOM list)

Assembly: Pick-N-Place file

PCB panel Size

Min size: 0.25*0.25 inches(6*6mm)

Max size: 20*20 inches(500*500mm)

PCB Solder Type

Water Soluble Solder Paste, RoHS lead free

Components details

Passive Down to 0201 size

BGA and VFBGA

Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

Component package

Cut Tape,Tube,Reels,Loose Parts

PCB assembly
process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

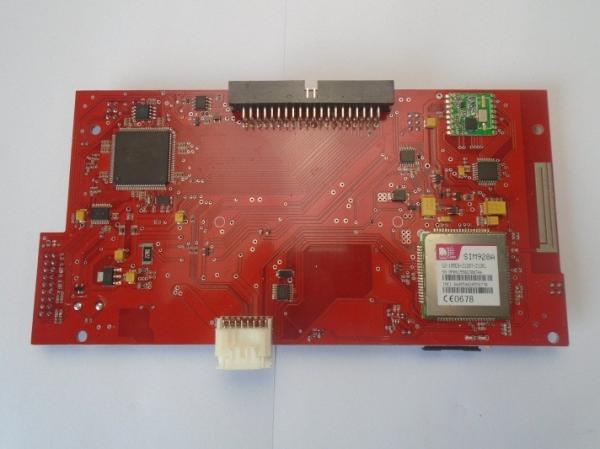

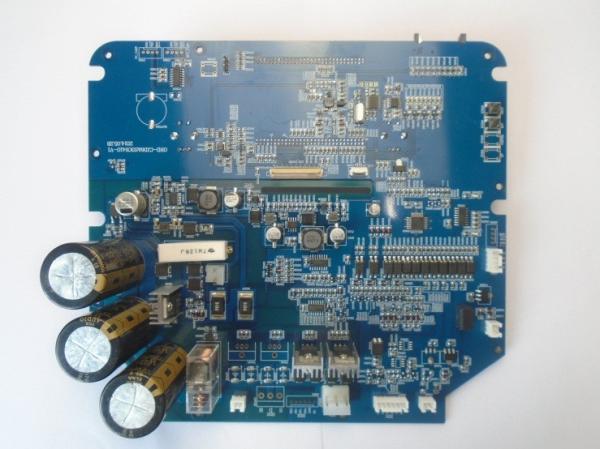

PCBA Picture
