2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication
2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication
2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication
2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication
2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication
2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication
2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication
2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication
Specifications
Brand Name :
OEM/ODM
Model Number :
SL71215L009
Certification :
UL,RoHS, CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
1000pcs per day
Delivery Time :
5-7 days
Packaging Details :
ESD package
Brand name :
OEM
Product name :
pcba board
Copper thickness :
2OZ
Features 1 :
Gerber/PCB file needed
Features 2 :
100% E-test
Features 3 :
Quality guarantee and professional after-sale service
Description

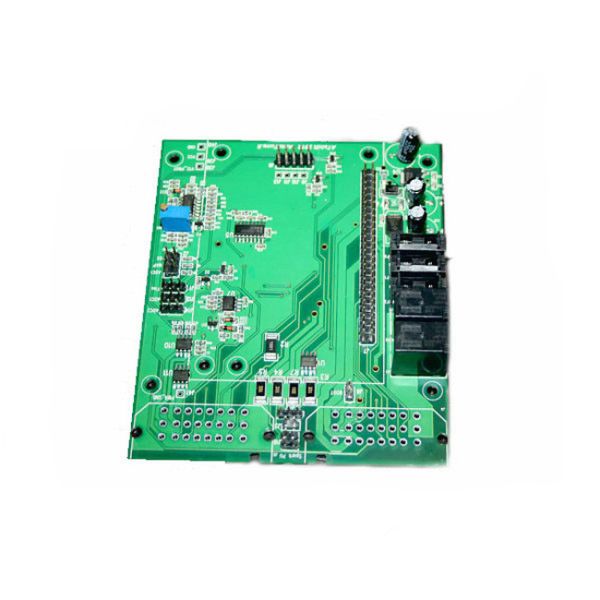

2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication

Shinelink company is a professional electronics circuit board manufacturer, which developed for more than 14 years. We can provide each kind of pcb board assembly service

Files Requested For PCB Assembly Quotation


---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we ask that you provide us with the following information.
1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
2. A detailed bill of materials (BOM)
3. Clear pictures of PCB or PCBA sample for us
4. Quantity and delivery required
5. Test method for PCBA to guarantee 100% good quality products.
6. Schematics file for PCB design if need to do function test.
7. A sample if available for better sourcing
8. CAD files for enclosure manufacturing if required
9. A complete wiring and assembly drawing showing any special assembly instructions if required

Shinelink kinds PCBA Products

2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication

PCB Feature

Number of Layer 1 - 20 Layer
Maximum Processing Area 680 × 1000MM
Min Board Thickness 2 Layer - 0.3MM ( 12 mil )
4 Layer - 0.4MM ( 16 mil )
6 Layer - 0.8MM ( 32 mil )
8 Layer - 1.0MM ( 40 mil)
10 Layer - 1.1MM ( 44 mil )
12 Layer - 1.3MM ( 52 mil )
14 Layer - 1.5MM ( 59 mil )
16 Layer - 1.6MM ( 63 mil )
18 Layer - 1.8MM ( 71 mil )
Finished Board Thickness Tolerance Thickness ≤ 1.0MM, Tolerance: ± 0.1MM
1.0MM ≤ Thickness ≤ 6.5MM, Tolerance ± 10%
Twisting and Bending ≤ 0.75%, Min: 0.5%
Range of TG 130 - 215 ℃
Impedance Tolerance ± 10%, Min: ± 5%
Hi-Pot Test Max: 4000V/10MA/60S
Surface Treatment HASL, With Lead, HASL Free Lead
Flash Gold, Immersion Gold
Immersion Silver, Immersion Tin
Gold Finger, OSP

PCB Assembly Capabilities

Turnkey PCBA PCB+components sourcing+assembly+package
Assembly details SMT and Thru-hole, ISO lines
Lead Time Prototype: 15 work days. Mass order: 20~25 work days
Testing on products Flying Probe Test, X-ray Inspection, AOI Test, functional test
Quantity Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files we need PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB panel Size Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type Water Soluble Solder Paste, RoHS lead free
Components details Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package Cut Tape,Tube,Reels,Loose Parts
PCB assembly
process		 Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

2OZ Immersion gold pcba board electronic components sourcing PCB Fabrication

FAQ

1. How do O-Leading keep your price competitive?

Over the last decade, prices of many raw materials (e.g. copper, chemicals) had doubled, tripled or quadrupled; Chinese currency RMB had appreciated 31% over US dollar; And our labor cost also increased significantly.

However, O-Leading have kept our pricing steady. This owns entirely to our innovations in reducing cost, avoiding wastes and improving efficiency. Our prices are very competitive in the industry at the same quality level.

We believe in a win-win partnership with our customers. Our partnership will be mutually beneficial if we can provide you an edgeon cost and quality.


2. What kinds of boards can O-Leading process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB & PCBA production?

BOM (Bill of Materials) with reference designators: component description, manufacturer’s name and part number.
PCB Gerber files.
PCB fabrication drawing and PCBA assembly drawing.
Test procedures.
Any mechanical restrictions such as assembly height requirements.

Product tags

pcb manufacturing component

,

pcb manufacturing and components

,

pcb makers
