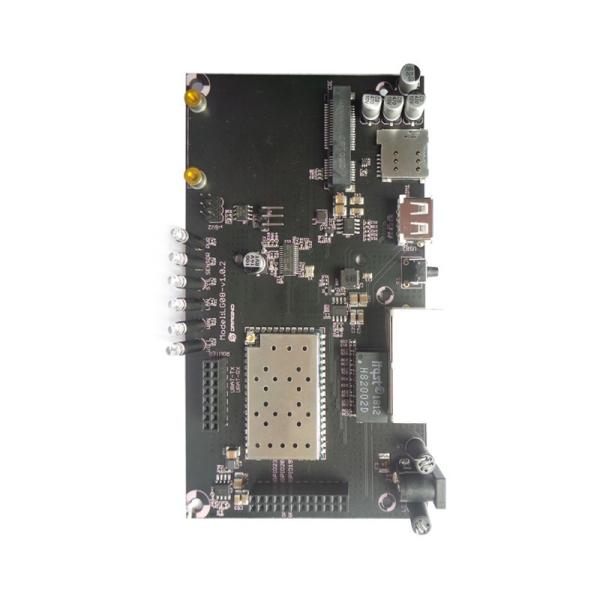

SMT Electronic Pcb Components Assembly Process Multilayer HASL Printed Circuit Board Assy

As a 20 years PCB manufacturer in China, FASTPCBA is providing the latest printed circuit board technologies and highest quality standards for electronics industry. You can trust us to meet your demands, from small volume to mass production whatever the simplest PCB boards or the most complex.

20 Years Experience
Accept Stardard: IPC III, Military, Automotive, Medcial, We offer you expanded PCB capabilities: Rigid PCB, Flexible, Rigid-flex, HDI board, High TG PCB

Up to 48 layer prototype PCB
Manufacture PCB board up to 56 layer, Raw material: Fr4, Rogers, Arlon, Teflon, Taconic, Nelco, Isola, Ceramic, Metal core

Up to 18 layer mass production
Support PCB surface process: HASL-LF, ENIG, Plating gold, Immersion tin, Immersion silver, ENIPIG, OSP

For full turn-key, we take care of the entire process, including manufacturing of Printed Circuit Boards, procurement of components (100% original) , PCBA Testing , continuous monitoring of quality and final assembly.

PCB Manufacturing Capability:

Flexible Volume Assembly Alternatives:

Prototype PCB Assembly
Low-Volume, High Mix PCB Assembly
High-Volume PCB Assembly
Consigned & Partial PCB Assembly
Full Turnkey PCB Assembly
Cable & Wire Harness Assembly
Box Build Assembly Services

FASTPCBA Detailed Assembly Capabilities Are Listed In the Table Below:

FASTPCBA Co., Ltd. is a professional PCB manufacturer in China, Shenzhen. With 20 years of development, FASPCBA turns into a first class manufacturer of PCB /PCBA. FASTPCBA is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.

FASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO9001, ISO14001, ISO13485, IATF16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.

We have profuse experience in manufacturing PCB and PCBA. Fastpcba PCB daily capacity is 1200 square meters, we can deliver the Single sided, Double sided PCB sample within 24 hours, 4-8 layer PCB in 3-5 working days,for the batch quantity for double side PCB,The lead time is 3-5 working days, 4-8 layers is 5-8 days. The quick and fast lead time stably ensures our customer of quick research speed to occupying the market.

We have imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.

Technical Requirement for pcb assembly:

1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.

Production Requirement for pcb assembly:

1.Gerber Files (Eagle and PCB File are available).
2.BOM list.
3.Clear pictures of PCBA or PCBA samples to us.
4.Pick N Place file.
5.Test procedure for PCBA.

FASTPCBA is a one-stop pcb manufacturing and assembly factory indeed, with our own pcb factory separated from pcba company. PCBA service cover automotive,medical, industry, smart home, aviation, military, communication etc.
