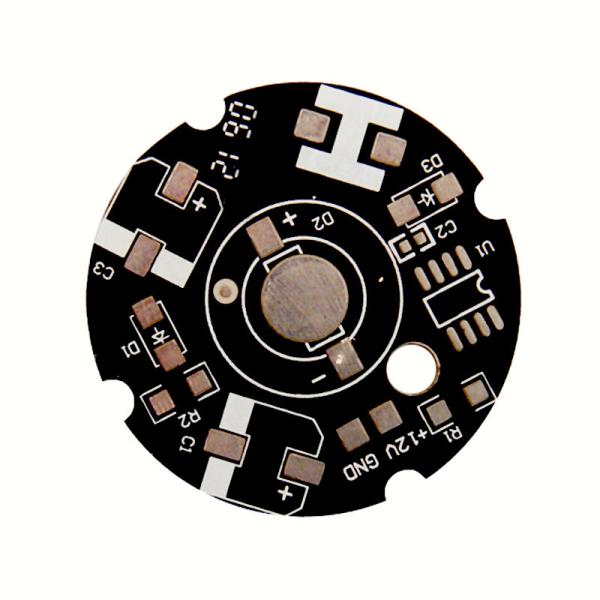

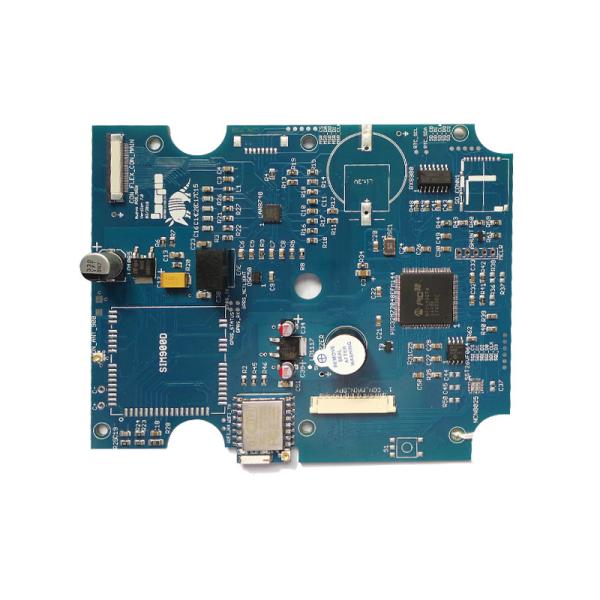

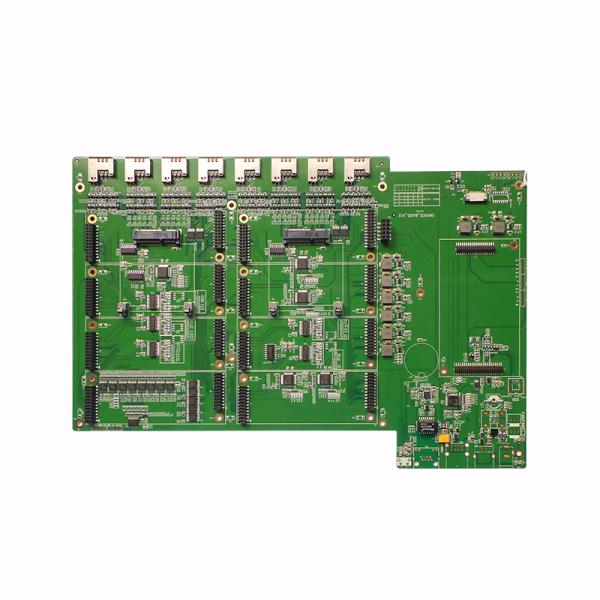

SMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA Manufacturing
SMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA Manufacturing
SMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA Manufacturing
SMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA Manufacturing
SMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA Manufacturing
SMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA Manufacturing
Specifications
Brand Name :
FASTPCBA
Model Number :
FASTPCBA-004
Certification :
ISO9001 / IATF16949 / ISO13485
Place of Origin :
China
MOQ :
1
Price :
700-5000
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000
Delivery Time :
5-8 work days
Packaging Details :
Anti-static bag + white pearl cotton (used around the inside of the carton) + carton
Copper thickness :
0.25OZ~12OZ
Base material :
FR-4
Material :
FR4 CEM1 CEM3 Hight TG
Layer :
1~20 layers
Pcb standard :
IPC-A-610 D/IPC-III Standard
Min. line spacing :
0.003"
Product name :
Printed Circuit Board
Description

PCB Assembly SMT , BGA , DIP Double-Sided Pcb Assembly Factory


Product description:
Specializing in the production of high-precision and high- difficulty double-sided multilayer PCB circuit boards, double-sided multilayer PCB circuit board proofing batch production and processing manufacturers, fastpcba

SMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA Manufacturing
Our product manufacturing capabilities:

PCB process capability
Item Large processing capacity Small processing capacity
Layers (maximum) 2--18 20-30
Plate type FR-4, ceramic plate, aluminum base plate PTFE,PPO ,PPE
Teflon, halogen-free sheet, high Tg sheet
Rogers, etc Teflon E-65,ect
Plate mixed pressure 4 layers-6 layers 6 layers-8 layers
biggest size 610mm X 1100mm 　
Dimensional accuracy ±0.13mm ±0.10mm
Board thickness range 0.2mm--6.00mm 0.20mm--8.00mm
Board thickness tolerance (t≥0.8mm) ±8% ±5%
Board thickness tolerance (t <0.8mm) ±10% ±8%
Medium thickness 0.076mm--6.00mm 0.076mm--0.100mm
Minimum line width 0.10mm 0.075mm
Minimum distance 0.10mm 0.075mm
Outer copper thickness 8.75um--175um 8.75um--280um
Inner copper thickness 17.5um--175um 8.75um--175um
Drilling hole diameter (mechanical drill) 0.25mm--6.00mm 0.15mm--0.25mm
Hole diameter (mechanical drill) 0.20mm--6.00mm 0.10mm--0.20mm
Hole Tolerance (Mechanical Drill) 0.05mm
Hole position tolerance (mechanical drill) 0.075mm 0.050mm
Laser drilling aperture 0.10mm 0.075mm
Plate thickness aperture ratio 10:01 12:01
Solder mask type Sensitive green, yellow, black, purple, blue, ink
Minimum solder mask width 0.10mm 0.075mm
Minimum solder mask isolation ring 0.05mm 0.025mm
Plug hole diameter 0.25mm--0.60mm 0.60mm-0.80mm
Impedance tolerance ±10% ±5%
Surface treatment type Hot air leveling, chemical nickel gold, immersion silver, electroplated nickel gold, chemical immersion tin, gold finger card Chemical sinking tin, OSP

Our production equipment: the advanced level of the equipment determines the product quality and efficiency:

SMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA Manufacturing

Product 100 testing:

SMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA Manufacturing

SMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA ManufacturingSMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA ManufacturingSMT DIP Ball Grid Array Assembly BGA Pcb Assembly PCBA Manufacturing
