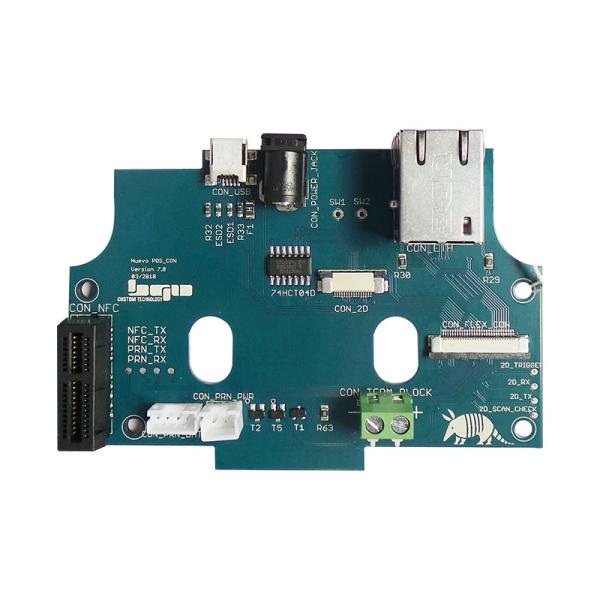

Turnkey Rigid Flex PCB Assembly Pcb China Prototype Pcb Manufacturing Service
Turnkey Rigid Flex PCB Assembly Pcb China Prototype Pcb Manufacturing Service
Turnkey Rigid Flex PCB Assembly Pcb China Prototype Pcb Manufacturing Service
Turnkey Rigid Flex PCB Assembly Pcb China Prototype Pcb Manufacturing Service
Turnkey Rigid Flex PCB Assembly Pcb China Prototype Pcb Manufacturing Service
Turnkey Rigid Flex PCB Assembly Pcb China Prototype Pcb Manufacturing Service
Specifications
Brand Name :
FASTPCBA
Model Number :
Multilayer PCBs Assembly
Certification :
IATF16949, ISO13485, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
1-20
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150000 Pieces per Month
Delivery Time :
5
Packaging Details :
PCB: Vacuum Packing/ PCBA: ESD Packing
Number of layers :
1-48
PCBA Testing :
X-ray,AOI Test,Functional test
Max size of finish board :
700*460mm
Min space :
0.075mm
Function Test :
100% Functional test
Description

2 Layer Fr4 PCB Assembly Multilayer Circuit Boards Supplier Multilayer Flexible Printed Circuit PCB Board

Product parameters:

Description Capability
Laminate materials FR4, High TG FR4, High Frequency, Alum, FPC...
Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)		 0.003”(0.07mm)
Standard (0.1-4mm±10%)
Board Thickness Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Solder Mask Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Silkscreen Min size 0.006″(0.15mm)
Max Size of Finish Board 700*460mm
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA

Turnkey Rigid Flex PCB Assembly Pcb China Prototype Pcb Manufacturing Service

FASTPCBA is the best pcba factory in china for customers of communication, automotive, medical, industry, military, aerospace, smart home, which keep long-term cooperation with domestic and abroad clients over 20 years.

Turnkey Rigid Flex PCB Assembly Pcb China Prototype Pcb Manufacturing Service

FASTPCBA Technology Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 20 years of development, FASPCBA turns into a first class manufacturer of HDI PCB, with production capability 35,000 square meters. FASTPCBA is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.

ASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO 9001, IATF 16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.

Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.

Turnkey Rigid Flex PCB Assembly Pcb China Prototype Pcb Manufacturing Service
