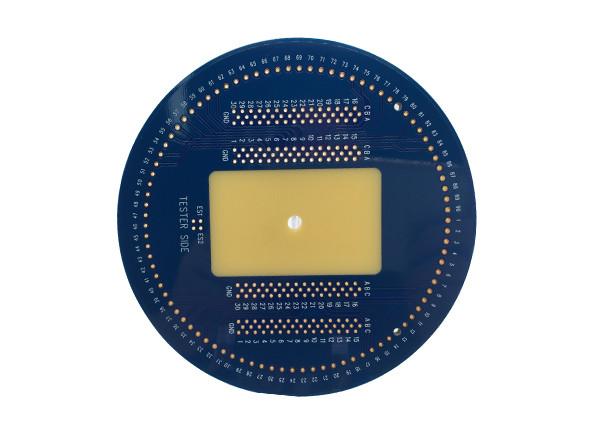

Blue Solder Mask Immersion Gold 3.2mm Single Layer PCB Board

Abis Circuits Co., Ltd is a professional PCB manufacturer which was established on Oct, 2006 and focus on single side, double side, Multilayer and HDI PCB mass production.

We have two factories together , the factory in Shenzhen is specialized in small and middle volume orders and the factory in Huizhou is for big volume and HDI.

Factory:

Operation plant space: (I) 10000 Square meters
(II) 60000 Square meters
Employees: (I) 300 Man Powers
(II) 900 Man Powers
Eng. Technical: (I) 20 QA QC Engineers
(II) 60 QA,QC Engineers

Our mission:

PCBs for demanding customers, on time with zero defects, produced sustainably at the lowest total cost. Manufacturing many different types of PCBs in smaller series (High-mix, Low-volume) involves constantly adjusting, adapting and problem solving.

Product Details:

Board Thickness:

Lead Time:

·

Single-Sided PCB vs. Double-Sided PCB:

What is the difference between single-sided PCBs and double-sided PCBs and how does it affect your business? The single-sided PCB is the original printed circuit board, containing only one layer of conductive material with all the components on one side. They are an extremely popular configuration for printed circuit boards.

Double-sided PCBs are also very popular. The difference is that they use both sides of the board, with a conductive dielectric layer, circuit copper layers and solder mask on both the top and the bottom, connected by vias, so that the traces on the front can communicate with the ones on the back.

FAQ:

Q1:What's your Aluminum board Thermal Conductivity?
A: Normally 0.8-3W/m.K. If you have special demands please feel free contact us

Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.

Q3:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there's many steps to PCB production, we usually do inspection after every step.

Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.

Q5: What is your certificate?
A: ISO9001:2008, ISO14001: 2004, UL, SGS,RoHS report.

Q6: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA,Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.

Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.

Q8: Does ABIS CIRCUITS bevel gold fingers?
A: Yes. A standard 45-degree bevel, also bevel at 15 or 30 degrees upon request. For multi-layer board, please ensure there is adequate back set for the bevels.

Certifications:

Factory Review:
