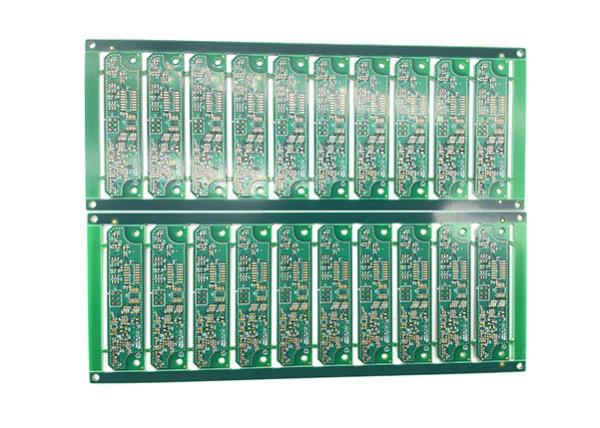

3OZ Fr4 Multilayer Print Circuit Board 24 layer FR4 CEM1 Rigid PCB Board
3OZ Fr4 Multilayer Print Circuit Board 24 layer FR4 CEM1 Rigid PCB Board
3OZ Fr4 Multilayer Print Circuit Board 24 layer FR4 CEM1 Rigid PCB Board
3OZ Fr4 Multilayer Print Circuit Board 24 layer FR4 CEM1 Rigid PCB Board
Specifications
Brand Name :
ABIS
Model Number :
ABIS 00011
Certification :
UL
Place of Origin :
SHEN ZHEN CHINA
MOQ :
1
Price :
0.1-0.8
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000000
Delivery Time :
5-8 working day
Packaging Details :
vacuum package
Board thickness :
1.6mm,0.2-7.0mm(≤0.2mm needs review)
Base material :
FR-4,Aluminum base
Surface finishing :
HASL,OSP,ENIG
Min. line spacing :
0.003",0.15mm
Min. line width :
3mil,0.15mm,0.05 mm
Copper thickness :
1oz,1/2OZ 1OZ 2OZ 3OZ
Min. hole size :
0.25mm,0.1mm
Application :
Consumer Electronics,Electronics Device,Electrice Vehicle
Material :
FR4 CEM1 CEM3 Hight TG
Product name :
Pcb Board Assembly,Printed Circuit Board
Solder mask color :
Green Black Red,Blue.green.red.black.white.etc
Solder mask :
Green
Type :
Electronic Board
Item :
Custom Circuit Board
Usage :
OEM Electronics
Name :
PCB Board Production
Number of layers :
1-40 ( ≥30 layers needs review )
Description


ABIS CIRCUITS CO., LTD

Created in 2006,as a long history China based PCB supplier, ABIS manufactures different kinds of printed circuit boards, including MCPCB,CEM-1,CEM-3,and FR4,FR-4 high Tg, Rogers, Teflon, Arlon ets special material.
ABIS has set up two PCB factories in China: one for MCPCB producing, quick turn and small volumn making, and another for mass production. Currently, ABIS modern plants occupy total 10000 s.q.m facility, with more than 1100 stable and experienced workers. Professionalism and continuous optimization of manufacturing processes have positioned ABIS as a reliable and favorite partner for global companies.


Items

Single/Double-sidedBoard/MutilayerBoard/FPC(1-24Layer)

BaseMaterials

FR-4(HighTG150*-170^),FR1.Aluminum,CEM-3,BT,94V0

Finishcopperthickness

Outer6OZ,nner40Z

Surfacefinish

ENIG,ImAg.ImSn,0SP,HASL,Platinggold

FinishedBoardSize

MaxDouble-sidedBoard

640mmX1100mm

MaxMutilayerBoard

640mmX1100mm

FinishedBoardHoleSize(PTHHole)

MinFinishedBoardHoleSize

0.15mm

ConductorWidthandSpacing

MinConductorWidh

0.01mm

MinConductorSpacing

0.01mm

ThicknessofPlatingandCoatingLayer

PTHwallCopperThickness

>0.02mm

TinSolderThickness(HotAlrLeveling)

>0.02mm

Nickl/GoldThickness

Forcustomerspecialneed

NicklPlatingLayer

>2um

GoldPlatingLayer

>0.3um

BareBoardTest

SinglesideTest

MaxTestPoint

20480

MaxBoardTestSize

400mmx300mm

DoubleSldeTest

MaxTestPoint

40960(GeneralUse)

4096(SpecialUse)

MaxBoardTestSize

406mmx325mm

320mmx400mm

MinTestpitchofSMT

0.5mm

TestVoltage

10-250V

MechanicalProcess

Chamfer

20*,30*,45*,60*

AngleTolerance

DeepnessTolerance

士0.20mm

V.CutAngle

20",30*,45*

BoardThickness

0.1-3.2mm

ResiduesThickness

:0.025mm

CellParapositionPrecision

士0.025mm

ToleranceofOut-shapeProcess

土0.1mm

BoardWarp

MaxValue

0.7%

Optical Plotting

MaxPlottingArea

66mmX558.8mm

​Q/TLead Time

Category

Quickest Lead Time

Normal Lead Time

Double sides

24hrs

120hrs

4 layers

48hrs

172hrs

6 layers

z2hrs

192hrs

8 layers

96hrs

212hrs

268hrs

10 layers

120hrs

12 layers

120hrs

280hrs

14 layers

144hrs

292hrs

16-20 layers

Depends on the specific requirements

Above 20 layers

Depends on the specific requirements

3OZ Fr4 Multilayer Print Circuit Board 24 layer FR4 CEM1 Rigid PCB Board3OZ Fr4 Multilayer Print Circuit Board 24 layer FR4 CEM1 Rigid PCB Board

3OZ Fr4 Multilayer Print Circuit Board 24 layer FR4 CEM1 Rigid PCB Board

On time delivery rate is more than 95%

1.24 hours fast turn for double side prototype PCB, 48 hours for 4-8 layers prototype PCE.
2.1 hour for quotation 2 hours for engineer question. Complaint feedback within 2 hours.
3.7-24 hours for order service.
4.7-24 hours for technical support.
5.7-24 hours manufacturing operations.
Go Green !
Our Plant have invested huge money for the waste water and exhaust gas process to reduce thepollutant emission, Through survey and investigation, we decided to adopt environment-friendly andenergy-efficient technologies and techniques to our plants.
The above mentioned, the application of technologies and techniques as described below indicatesthat Core indeed assumed its social responsibility of environment protection, by green production andreducing pollution and carbon emission.

Please keep us informed for any interestes!
ABIS cares every your order even 1 pcs
