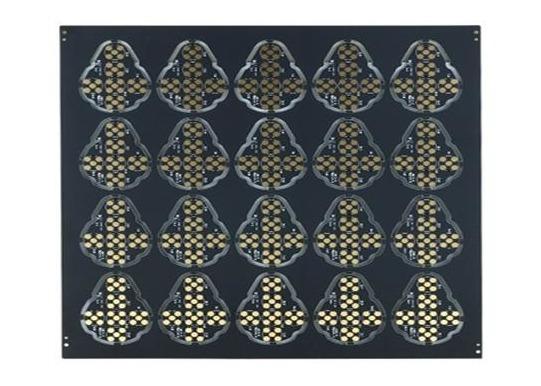

2 Layers FR4 Double Sided PCB High TG Black Double Sided FR4 PCB
2 Layers FR4 Double Sided PCB High TG Black Double Sided FR4 PCB
2 Layers FR4 Double Sided PCB High TG Black Double Sided FR4 PCB
2 Layers FR4 Double Sided PCB High TG Black Double Sided FR4 PCB
Specifications
Brand Name :
ABIS
Model Number :
FR-R001
Certification :
ISO14001, ISO9001
Place of Origin :
Made in China
MOQ :
1
Price :
Customized
Payment Terms :
T/T, Western Union, Paypal ect.
Supply Ability :
60,000sqm per month
Delivery Time :
5-15 working days
Packaging Details :
Vacuum package, carton package
PCB Base Material :
FR4 TG150
Circuit Board Copper :
4oz
Layer :
2
PCB Surface finishing :
immersion silver
Solder mask :
Green
Silk Screen :
White
Size :
150mm*200mm
Profile :
rout
Min. line width :
3mil/3mil
Min. hole size :
0.15mm
Application :
Power supply module and automotive electronics components
Testing :
100%E-Testing, PCB Flying test, AOI, X-RAY, PCBA Funtion test/Electronic test
Approved :
UL
Base Materal :
Copper
Description

Electronic Board, Rogers PCB, Rogers, High Performance, RF Identification Tags,Multi-Layer

Abis Circuits Co. Ltd is a great PCB manufacturer that was established in 2006 and is based in Shenzhen (China’s “Silicon Valley”).

What is the PCB used for?

After the electronic equipment adopts the printed board, due to the consistency of the same type of printed board, the error of manual wiring is avoided, and the automatic insertion or mounting of electronic components, automatic soldering, and automatic detection can be realized, which ensures the quality of the electronic equipment. , improve labor productivity, reduce costs, and facilitate maintenance.

Double-sided is an extension of single-sided. When single-layer wiring cannot meet the needs of electronic products, double-sided is used. Both sides have copper cladding and traces, and the lines between the two layers can be conducted through vias to form the required network connections.

2 Layers FR4 Double Sided PCB High TG Black Double Sided FR4 PCB

What are the application fields of printed Circuit boards?

Mobile phones, microwaves, Consumer Electronics, communications, network base stations, hybrid integrated circuits, and home fans.

What certificates and capacity does ABIS have?

We have ISO14001, ISO9001, UL, and so on.

Raw material FR-4, High TG FR-4, PTFE, Aluminum Base, Cu base. Rogers, etc
Board Thickness 0.20mm--8.00mm
Layer 1 Layer-20 Layer
Insulation Layer Thickness 0.075mm--5.00mm
Min.hole size 0.1mm (drilling hole)
Max. Board size 200mm*600mm
Out Layer Copper Thickness 18um--350um
Inner Layer Copper Thickness 17um--175um
NPTH Hole Tolerance +/- 0.075mm
PTH hole Tolerance +/-0.05mm
Outline tolerance +/-0.13mm
Surface finished HASL, ENIG, Chem. Tin, Flash Gold, OSP, Gold finger
Solder Mask Type LPI
Others RFQ.

What is your Lead Time?

Category

Q/T Lead time

Standard Lead Time

Mass Production

2 Layers

24hrs

3-4 working days

8-15 working days

4 Layers

48hrs

3-5 working days

10-15 working days

6 Layers

72hrs

3-6 working days

10-15 working days

8 Layers

96hrs

3-7 working days

14-18 working days

10 Layers

120hrs

3-8 working days

14-18 working days

12 Layers

120hrs

3-9 working days

20-26 working days

14 Layers

144hrs

3-10 working days

20-26 working days

16-20 Layers

Depends on the specific requirements

20+ Layers

Depends on the specific requirements

We are not only good at product quality but also FINANCIALLY FIT because we pay attention to goodwill since 2006 in this opening city-Shenzhen, China.
